PROAIM P-18-JS Assembly Manual

18ft film crane with jib stand

18ft Film Crane with Jib Stand

(P-18-JS)

A s s e m b l y M a n u a l

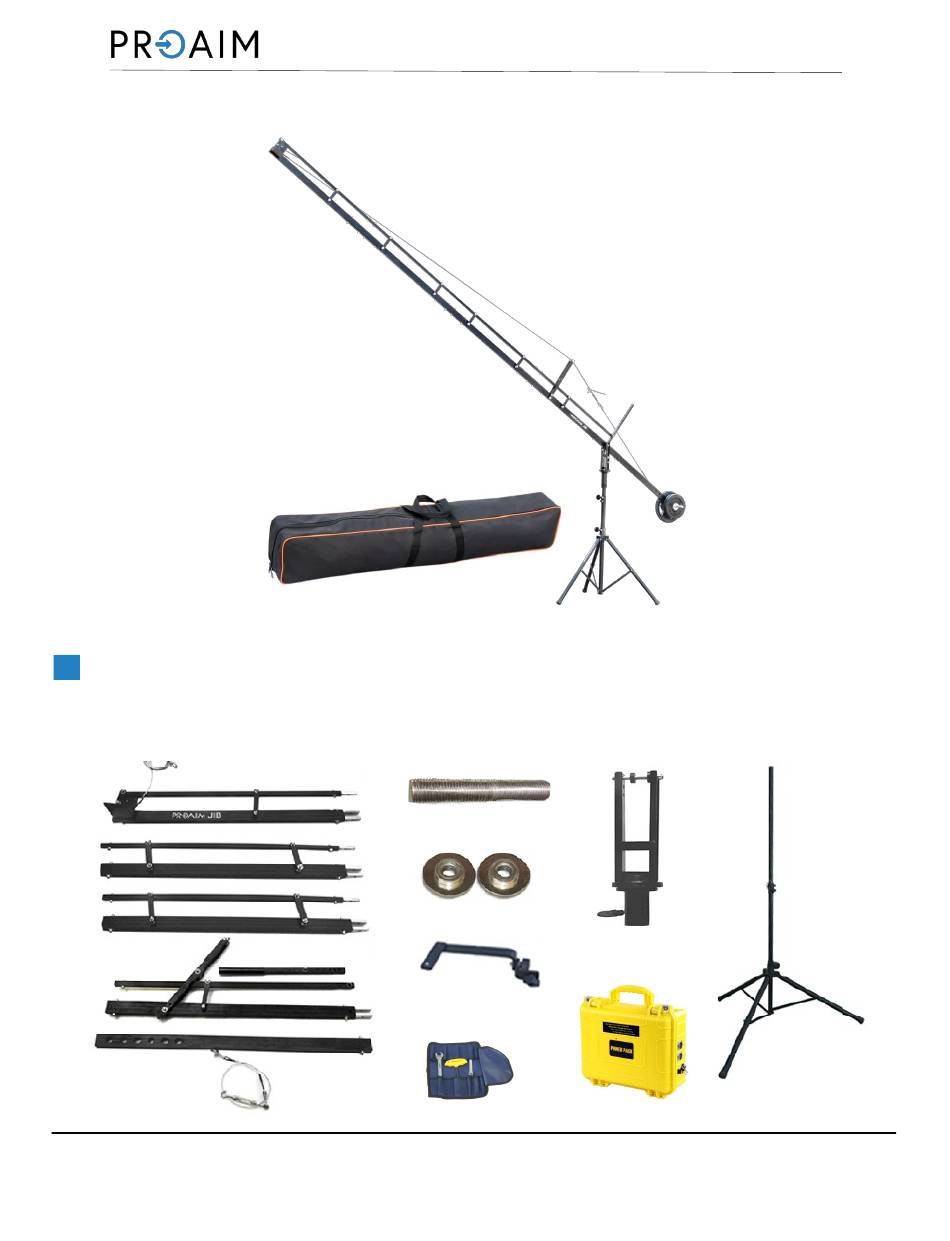

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that is listed

below.

1st Section

Weight Rod / Shank

2nd Section

3rd Section

Weight Closers

Central Post

4th Section

LCD Mounting Arm

5th Section

Jib Stand

Tools

Power Pack

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright

statutes or in writing by the Publisher.

Table of Contents

Need help?

Do you have a question about the P-18-JS and is the answer not in the manual?

Page 1 18ft Film Crane with Jib Stand (P-18-JS) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
Page 2 Jib Stand Setup  Loosen knob-1 located on Jib Stand. Slide the legs down to the widest possible position and tighten knob-1 to secure. NOTE: A wider spread ensures more stability.  Draw Central Post up to the desired height and lock it into place using provided Locking Pin. Knob 1 Locking Pin Camera Jib Setup...
Page 3  Section-4 has connecting bars attached on both ends. Slide bars of Section-4 into Section-3 & tighten them together using provided allen key. Continue the Arm build by sliding in section 2 onto section 3, section 2 onto section 1 and finally section 5 onto section 4 in the same way. Your jib arm is now com- pletely connected.
Page 4 Control Handle.  The Central Fork has provision to attach LCD Monitor (Not Included) via LCD Mounting Arm. YOUR PROAIM 18FT JIB ARM WITH STAND ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES)
Page 5 Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspection and evaluation by us.
