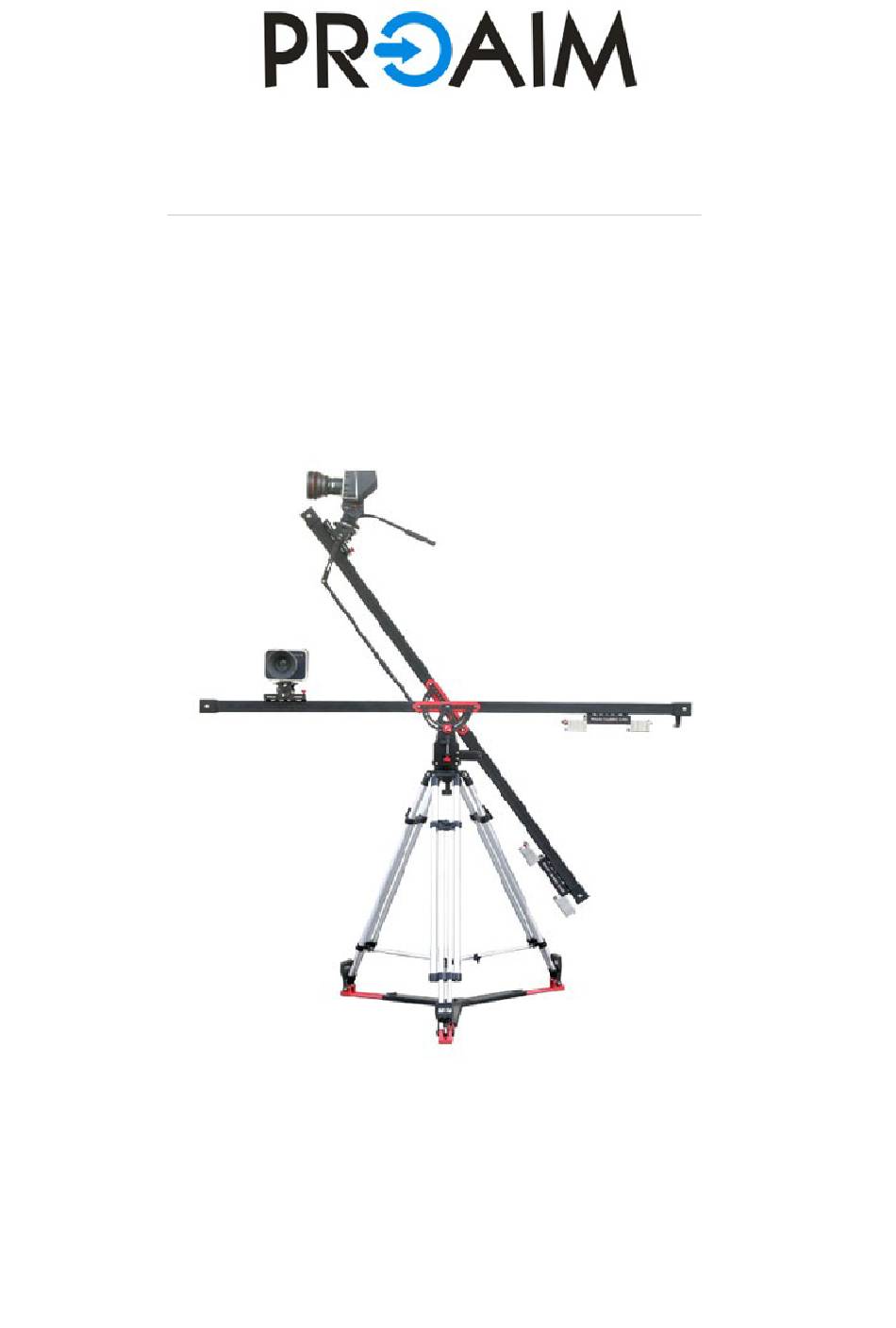

Cambird Dolly Crane Slider
(P-CMBD-S)
I N S T R U C T I O N M A N U A L
For demonstration only
All rights reserved
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any
means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permitted by
the applicable copyright statutes or in writing by the Publisher.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PROAIM P-CMBD-S
Summary of Contents for PROAIM P-CMBD-S
- Page 1 Cambird Dolly Crane Slider (P-CMBD-S) I N S T R U C T I O N M A N U A L For demonstration only All rights reserved No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the Publisher.
-
Page 2: What's In The Box
Please inspect the contents of your shipped package to ensure you have received all that is pictured and listed below. The grey foam shipping/storage container has been especially designed to protect your pur- chase while in transit and is a good place to keep your Proaim Cambird Dolly Crane Slider when not in use. - Page 3 Proaim Cambird Dolly Crane Slider (P-CMBD-S) (2) Then Mount the Center Fork on your 100mm stand and secure it well with provided knob. (3) Now Mount the Slider rail system on Center Fork and secure it well with provided red knobs on both sides.
- Page 4 Proaim Cambird Dolly Crane Slider (P-CMBD-S) (5) Add counterbalance weights on both sides of the steel shank to equal the weight of camera and fluid head package. Attach the red knobs for weight security. (6) There is a red knob on the sliding plate that acts as a brake. Loosen that knob and slide the camera away from the center and tighten the knob.
- Page 5 Proaim Cambird Dolly Crane Slider (P-CMBD-S) (8) You may need to add or subtract counterbalance weight for precision. Repeat steps 6 & 7 if rebalanc- ing is needed. Once the system has been accurately balanced, you may begin shooting. (9) For slow sliding movements you may insert the crank handle provided onto the crank spline..
- Page 6 Proaim Cambird Dolly Crane Slider (P-CMBD-S) (ii) Loosen the Red knob on both side of Center Fork and position the Slider rail in the desired position. Then tighten the Red Knob again on both side of center fork.. (11) Hold the camera with one hand and loosen the black knob. Position the camera base plate in de- sired angle and then tighten with red knob opposite side of black knob..
- Page 7 Proaim Cambird Dolly Crane Slider (P-CMBD-S) CAMBIRD MINI JIB CRANE SETUP IMPORTANT : You must complete the counterbalance procedure in the first section of the manual before completing this setup. (13) Level the slider rail setup and tighten the Red knobs on both sides of the Center Fork.
- Page 8 Proaim Cambird Dolly Crane Slider (P-CMBD-S) (16) Turn the red knob to reposition the end of crane arm so that it is on the top of the ad- justment.. (17) Attach the Front part of crane arm to the camera platform through its two screws and tighten the...
- Page 9 Proaim Cambird Dolly Crane Slider (P-CMBD-S) (20) Loosen the Red Knob on each side of Cen- ter Fork to activate the mini Jib Crane Func- tion. (21) As the mini jib moves up and down the camera should stay parallel with the ground.
-
Page 10: Warranty
Proaim Cambird Dolly Crane Slider (P-CMBD-S) NOW YOUR PROAIM CAMBIRD DOLLY CRANE FULLY DRESSED UP AND READY TO GO For Demonstration Purpose WARRANTY We offer a limited time warranty for our products. For Mechanical products we provide a 6 month war- ranty &...
