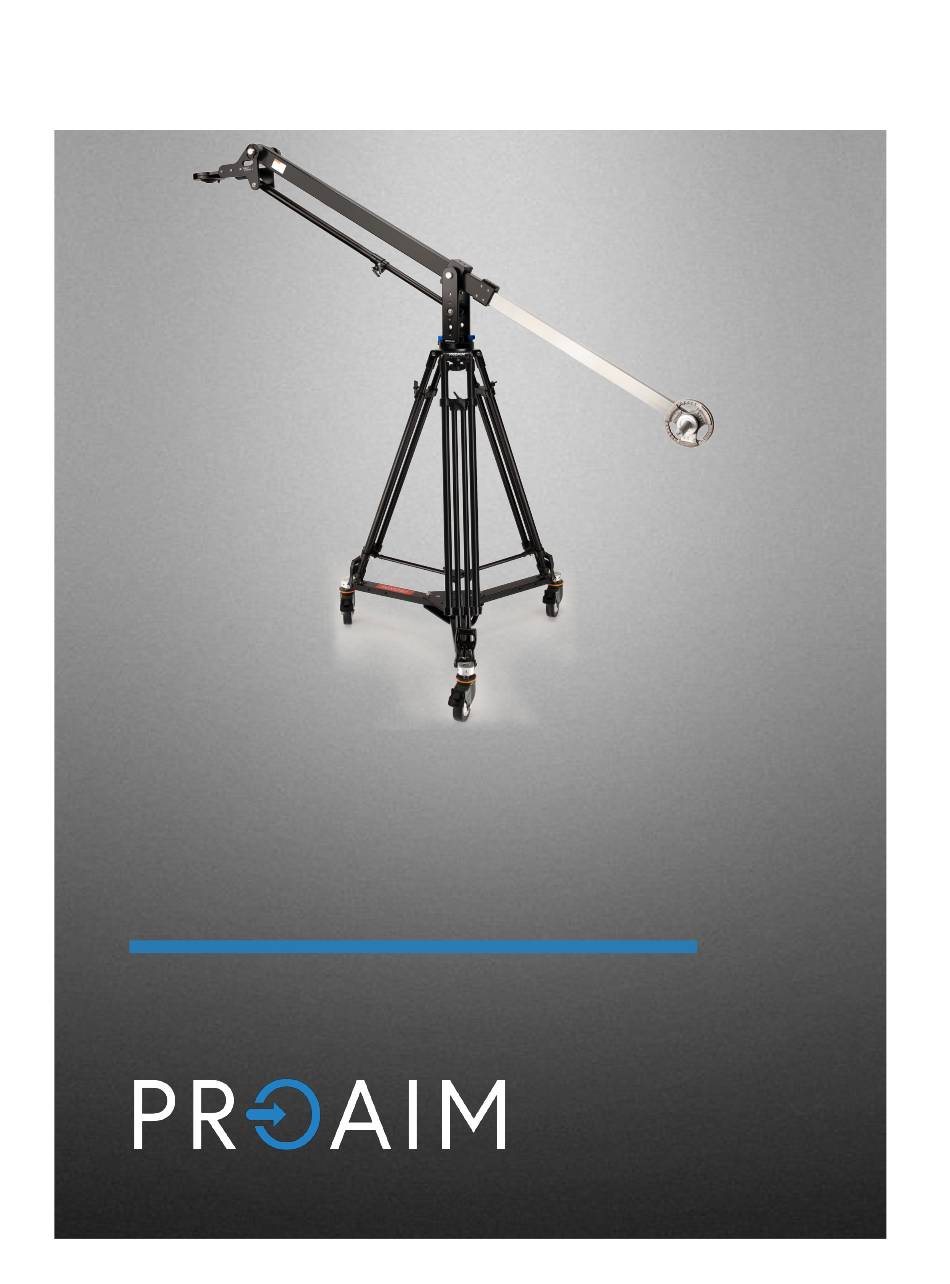

- Page 1 7' Wave-2 Jib Crane, Dolly Stand for Camera / Gimbals / Pan Tilt Heads (P-WV-2SD) Instruction Manual...
- Page 2 At Proaim, our goal is to ensure 100% Customer Satisfaction in all that we do. We back our sales with a 1 year warranty from the date of purchase and work hard to resolve any problems in the unlikely event one should arise.
- Page 3 Our mantra of continuous improvement has been the guiding principle of how we conduct our business since day one. Once you have the opportunity to experience your new Proaim 7' Wave-2 Video Jib Crane, we hope you will agree that we craft quality products at a competitive price.
- Page 4 Introduction PROAIM welcomes you to the new and modernized era with its Proaim 7' Wave-2 Video Jib Crane With CST-100 Stand & Portable Dolly , a portable filming solution to increase your production value. The Robust jib crane is specifically designed travel crane for indoor &...
- Page 5 Assembling Position the height of the tripod by loosening all three adjustment knobs, sliding the tripod up to the desired height and re-tighten the knobs securely. You can use the Wave jib in 2 ways Spreader Dolly ...
- Page 6 In case of Dolly, Take out the bolt from the center of dolly and spread it on floor. Then put the bolt back through the center of dolly again. Now mount the Tripod Stand on Dolly, lock it in place with the rubber grips. NOTE: To keep the dolly in static position, lock the wheels by pushing down the lever.
- Page 7 Attaching the Lower telescopic jib section. Loosen the bolts of the hub section and move the hub section from their position for proper attaching, then again tighten the bolts to secure it. Loosen the knob for the free tilt movement of the camera plate, then attach the lower section of the jib as shown in the image.
- Page 8 Unscrew the locking lever from the Central Post of the jib. Place the Central Post in the bowl of Tripod Stand and re-tighten the locking mechanism for a secure fit. NOTE: It is important to make sure that the Central Fork is seated in the bowl properly. That means perpendicular to the tripod bowl.
- Page 9 Insert the weight rod into the jib arm. Now slide in weight to it as per your requirement and screw in weight closer (Counter weight Not Included) properly. NOTE: Make sure the opposite end of the jib arm is secured so that the addition of the weights does not cause the arm to rise violently.
- Page 10 Loosen the bolts and remove the 100 bowl. Attach the flate base plate and secure by tightening the bolts and then attach the Pan Tilt Head (Not Included) and secure by tightening the bolts. For an over slung setup, attach the flat base plate on the top and mount the camera setup and ...
- Page 11 100mm fluid head setup mounting, attach the 100mm bowl on the top, mount the camera setup and secure it properly. Proaim 7' Wave-2 Jib Crane With CST-100 Stand & Portable Dolly ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase.
