HygroMatik Basic-DS Manual

Controls
Hide thumbs Also See for Basic-DS:
Table of Contents

Advertisement

Quick Links

Controls
Basic- DS
Comfort- DS
Comfort Plus- DS

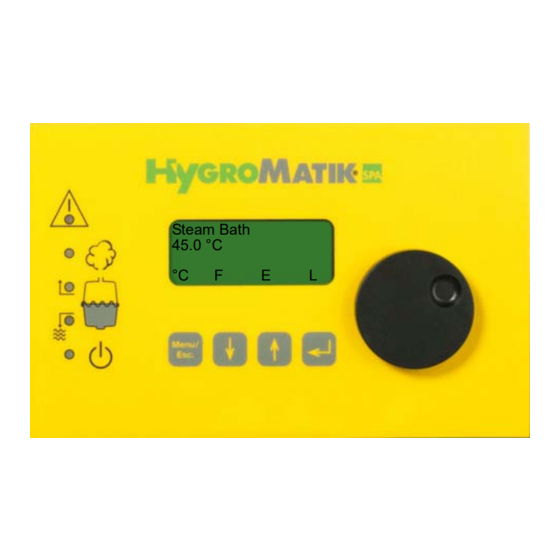

Steam Bath
45.0 °C
°C
F
E
Steam Bath
45.0 °C
°C
F
E

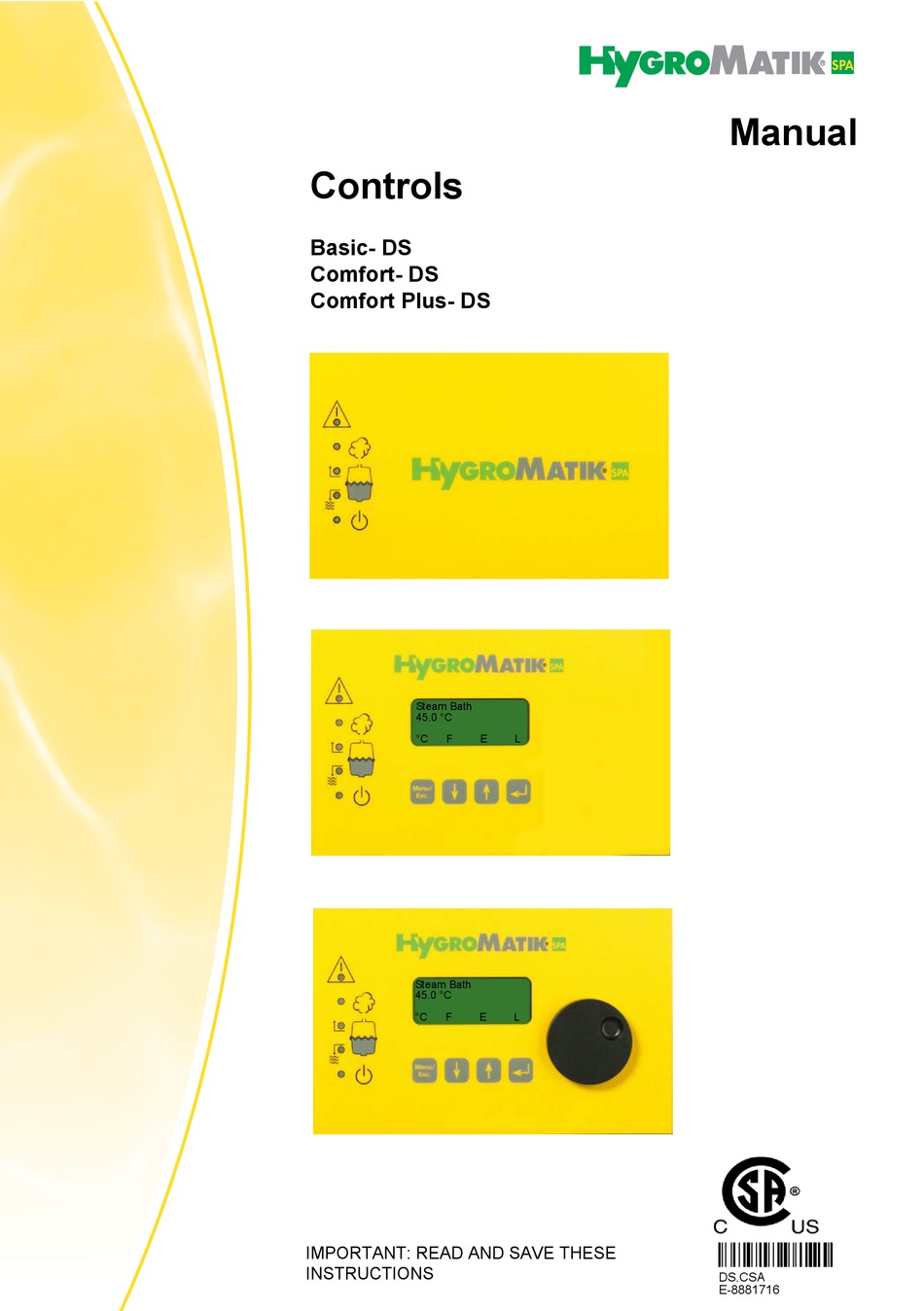

IMPORTANT: READ AND SAVE THESE
INSTRUCTIONS
L
L
SPA
Manual
ÁDS.CSAUÈ
DS.CSA
E-8881716
