- Page 1 PSUPS20A12E v.1.2 PSUPS 13,8V/12V/20A/65Ah Buffer power supply for 16 HD cameras and recorder Edition: 5 from 15.11.2017 Supercedes the edition: 4 from 20.04.2017...
-
Page 2: Table Of Contents
PSUPS20A12E Features: DC 13,8V uninterruptible power supply of HD cameras deep discharge battery protection (UVP) DC 12V uninterruptible power supply of the recorder battery output protection against short circuit fitting battery 65Ah/12V and reverse polarity connection ... -
Page 3: Technical Description
PSUPS20A12E 1. Technical description. 1.1. General description. A buffer PSU is intended for an uninterrupted supply to CCTV system devices requiring stabilized voltage of 12V DC (+/-15%). The PSU has two circuits: first 1x5A / 12V DC for supplying the recorder and 16x0,8A / 13,8V DC for both cameras. - Page 4 PSUPS20A12E The power supply enclosure houses 2 fuse modules for powering 16 cameras. Fig.2. The view of the fuse module LB8. Fig.3. Output filter . Table 3. Description of the module’s components and connectors. Component no. Description [Fig. 4]...

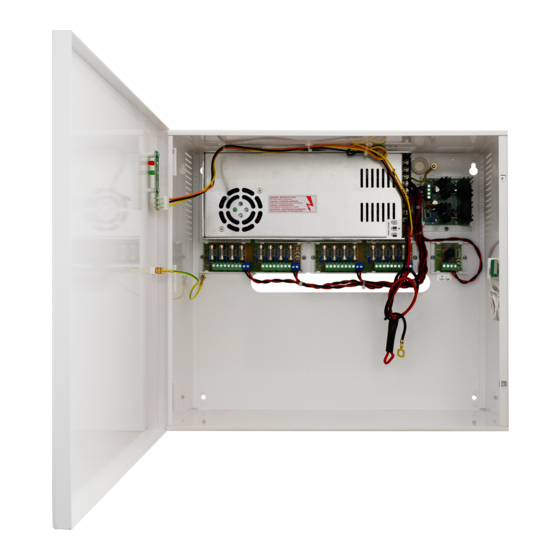

- Page 5 PSUPS20A12E Fig.4. The view of the PSU.
-
Page 6: Specifications
PSUPS20A12E Specifications : 1.4. electrical specifications (tab.4) mechanical specifications (tab.5) operation safety (tab.6) operating specifications (tab.7) Table 4. Electrical specifications. PSU type A (EPS - External Power Source) 176÷264V AC / 50Hz Mains supply Current consumption 1,5A @230V AC PSU’s power... - Page 7 PSUPS20A12E Table 5. Mechanical specifications. Dimensions W=420, H=375, D+D =183+14 [+/- 2mm] =425, H =378 [+/- 2mm] The dimensions of the 360x175x165mm (WxHxD) max battery compartment Fixing See Fig. 3 Net/gross weight 7,7 / 8,4 kg Enclosure Steel plate DC01 1,2mm, colour RAL 9003...
-
Page 8: Installation
PSUPS20A12E 2. Installation. 2.1 Requirements. The buffer PSU is to be mounted by a qualified installer, holding relevant permits and licenses (applicable and required for a given country) for 230V AC interference and low-voltage installations. The unit should be mounted in confined spaces, in accordance with the 2nd environmental class, with normal relative humidity (RH=90% maximum, without condensation) and temperature from -10°C to +40°C. -
Page 9: Operating Status Indication
PSUPS20A12E 3. Operating status indication. The PSU is equipped with two diodes on the front panel: RED LED: on – The PSU supplied with 230V AC voltage off – no 230V AC mains supply GREEN LED: ... - Page 10 PSUPS20A12E WEEE MARK According to the EU WEE Directive – It is required not to dispose of electric or electronic waste as unsorted municipal waste and to collect such WEEE separately. CAUTION! The power supply unit is adapted for a sealed lead-acid battery (SLA). After the operation period it must not be disposed of but recycled according to the applicable law.
