- Page 1 PSUPS10A12C v.1.0 PSUPS 13,8V/12V/10A/17Ah Buffer power supply for 8 HD cameras and recorder Edition: 3 from 07.09.2018 Supercedes the edition: 2 from 15.11.2017...
-
Page 2: Table Of Contents
PSUPS10A12C Features: DC 13,8V uninterruptible power supply of HD cameras deep discharge battery protection (UVP) DC 12V uninterruptible power supply of the recorder battery output protection against short circuit fitting battery 17Ah/12V and reverse polarity connection ... -
Page 3: Technical Description

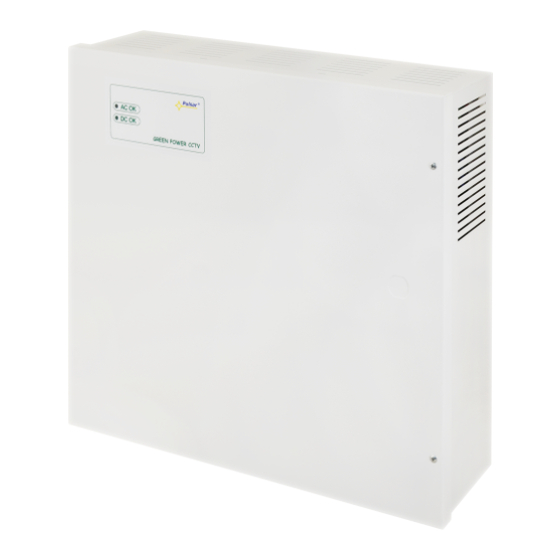

PSUPS10A12C 1. Technical description. 1.1. General description. A buffer PSU is intended for an uninterrupted supply to CCTV system devices requiring stabilized voltage of 12V DC (+/-15%). The PSU has two circuits: first 1x4A/12VDC for supplying the recorder and 8x0,75A/13,8V DC for both cameras. - Page 4 PSUPS10A12C The power supply enclosure houses fuse modules for powering 8 cameras. Fig.2. The view of the fuse module LB8. Fig.3. Output filter . Table 3. Description of the module’s components and connectors. Component no. Description [Fig. 4] PSU module PSB-15512110...
-
Page 5: Specifications
PSUPS10A12C Fig.4. The view of the PSU. Specifications : 1.4. electrical specifications (tab.4) mechanical specifications (tab.5) operation safety (tab.6) operating specifications (tab.7) Table 4. Electrical specifications. PSU type A (EPS - External Power Source) 176÷264V AC / 50Hz Mains supply... - Page 6 PSUPS10A12C Over voltage protection OVP >16V (automatic return) U<9,5V (± 5%) – disconnection of battery terminal Deep discharge protection UVP Sabotage protection: - TAMPER output indicating enclosure - micro-switches, NC contacts (enclosure closed), opening 0,5A@50V DC (max.) Optical indication: front panel of the PSU - red, normal status –...
-
Page 7: Installation
PSUPS10A12C Chart 1. Acceptable output current from the PSU depending on ambient temperature. 2. Installation. 2.1 Requirements. The buffer PSU is to be mounted by a qualified installer, holding relevant permits and licenses (applicable and required for a given country) for 230V AC interference and low-voltage installations. The unit should be mounted in confined spaces, in accordance with the 2nd environmental class, with normal relative humidity (RH=90% maximum, without condensation) and temperature from -10°C to +40°C. -
Page 8: Operating Status Indication
PSUPS10A12C 3. Operating status indication. The PSU is equipped with two diodes on the front panel: RED LED: on – The PSU supplied with 230V AC voltage off – no 230V AC mains supply GREEN LED: ...
