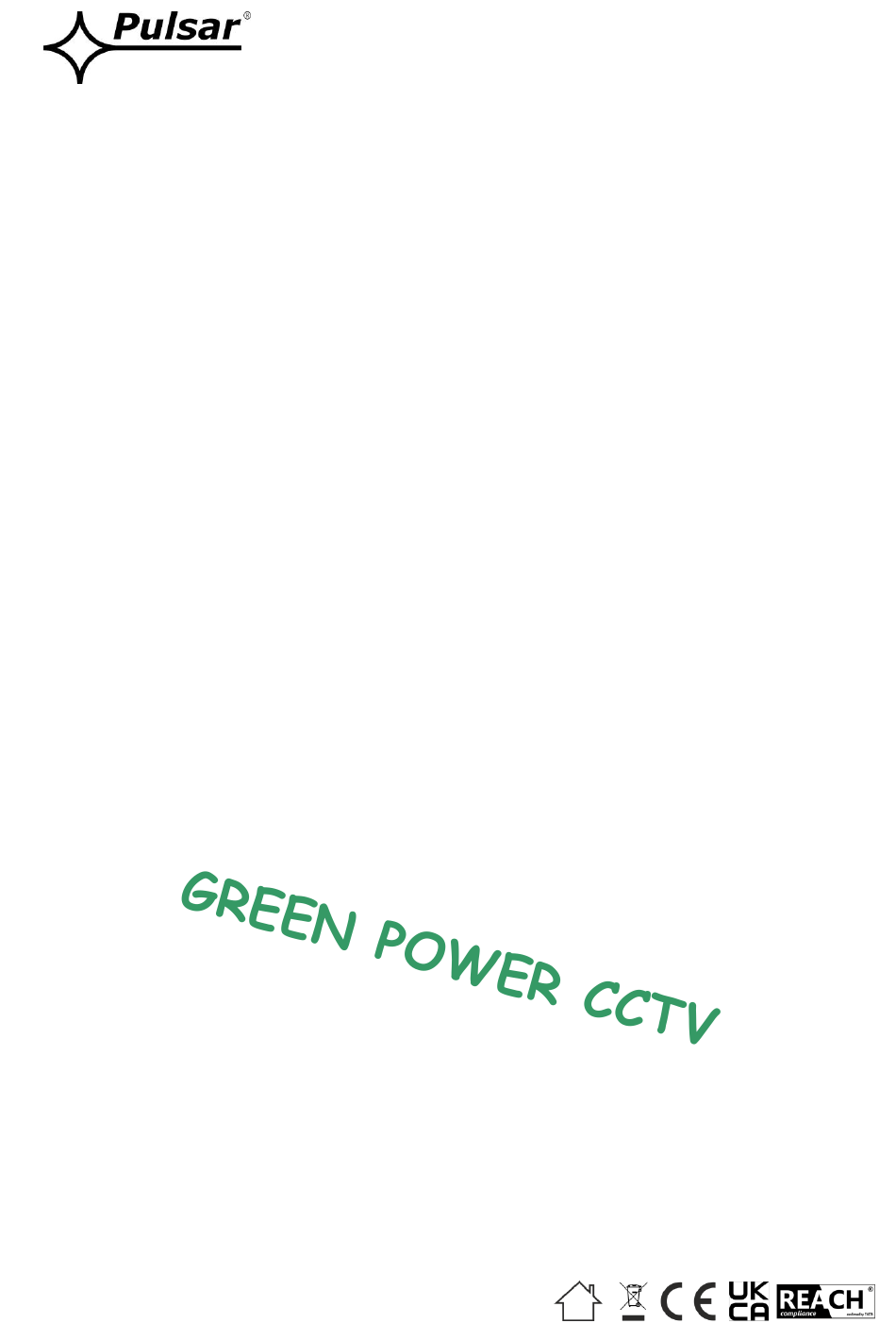

- Page 1 – PSUPS10A12CR v.1.3 PSUPS 13,8V/12V/10A/17Ah Buffer power supply for up to 8 HD cameras and DVR with recorder space Edition: 5 from 23.03.2022 Supercedes the edition: 4 from 06.10.2020...
-
Page 2: Table Of Contents
PSUPS10A12CR Features: DC 13,8 V uninterruptible power supply of HD cameras deep discharge battery protection (UVP) DC 12 V uninterruptible power supply of the recorder LED indication fitting battery 17Ah/12 V enclosure construction is compliant with requirements ... -
Page 3: Technical Description
PSUPS10A12CR 1. Technical description. 1.1. General description. A buffer PSU is intended for an uninterrupted supply to CCTV system devices requiring stabilized voltage of 12 V DC (+/-15%). The PSU has two circuits: first 4 A/12 V DC for supplying the recorder and 5 A/13,8 V DC for both cameras. - Page 4 PSUPS10A12CR 1.3. Description of PSU components. Table 1. Description of components and connectors module LB8 Component no. Description [Fig. 2] F1÷F8 glass fuses L1÷L8 LED voltage indication at the outputs AUX1 ÷ AUX8 independently protected outputs IN1-, IN2- power supply inputs of the fuse module Table 2.
-
Page 5: Specifications
PSUPS10A12CR Fig.4. The view of the PSU. 1.4. Specifications: - electrical specifications (tab. 4) - mechanical specifications (tab. 5) - operation safety (tab. 6) - operating specifications (tab. 7) Table 4. Electrical specifications. Mains supply ~200-240 V; 50Hz Current consumption 1,3 A PSU’s power... - Page 6 PSUPS10A12CR Short-circuit protection SCP - circuit of F5 A melting fuse in the filter recorder Battery circuit protection SCP and reverse glass fuse 10 A polarity connection Surge protection varistors Over voltage protection OVP >19 V (automatic recovery) U<9,5 V (± 5%) – disconnection of battery terminal...
-
Page 7: Installation
PSUPS10A12CR Direct insolation unacceptable Vibrations and impulse waves during transport According to PN-83/T-42106 2. Installation. 2.1 Requirements. Buffer PSU is to be mounted by a qualified installer, holding relevant permits and licenses (applicable and required for a given country) for 230 V interference and low-voltage installations. Unit should be mounted in confined spaces, in accordance, with normal relative humidity (RH=90% maximum, without condensing) and temperature from - 10°C to +40°C. -
Page 8: Operation And Use
CAUTION! The power supply module unit is adapted for a sealed lead-acid battery (SLA). After the operation period it must not be disposed of but recycled according to the applicable law. Pulsar sp. j. Siedlec 150, 32-744 Łapczyca, Poland Tel. (+48) 14-610-19-40, Fax. (+48) 14-610-19-50 e-mail: biuro@pulsar.pl,...
