Nava Bedside Table
Assembly Instructions
9
P
O
11

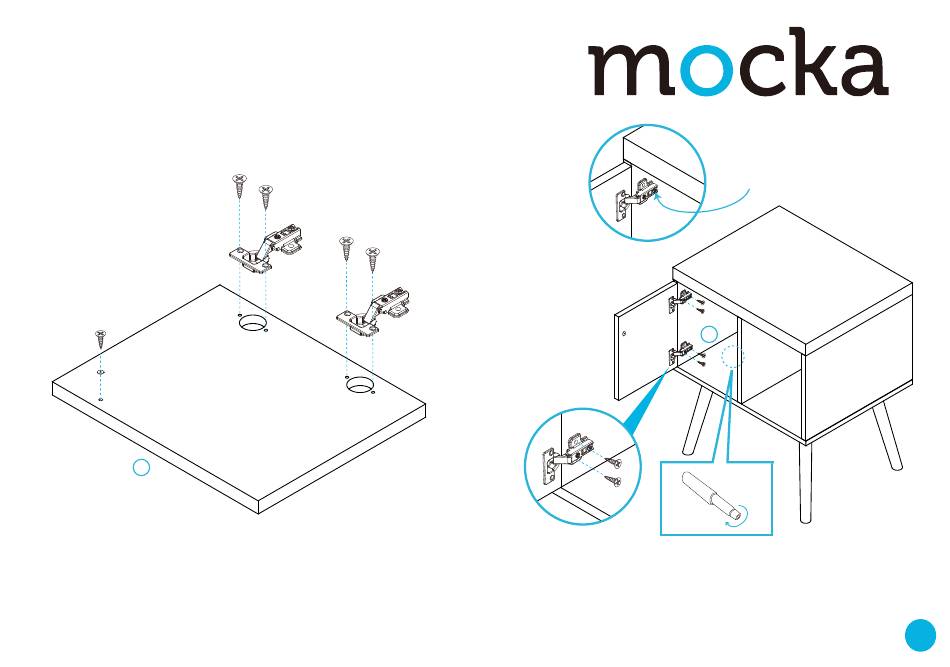

Attach 2x hinges (K) to panel [11], securing with 4x screws (G) and attach
1x seal (O) using 1x screw (P) to panel [11]. Tighten with a screwdriver.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
G
G
G
G
K
10
K
Secure panel [11] to panel [3] by attaching the other end of the 2x hinges
(K) with 4x screws (G) as shown. Tighten with a screwdriver. If the door is
not catching or sitting flush, twist the end of the cover (F) until it catches on
the seal (O).
NOTE: If the doors are uneven or
there is a gap in the middle, loosen
or tighten the screw on the door
hinge until they are sitting flush.
G
3
G
G
F
6
