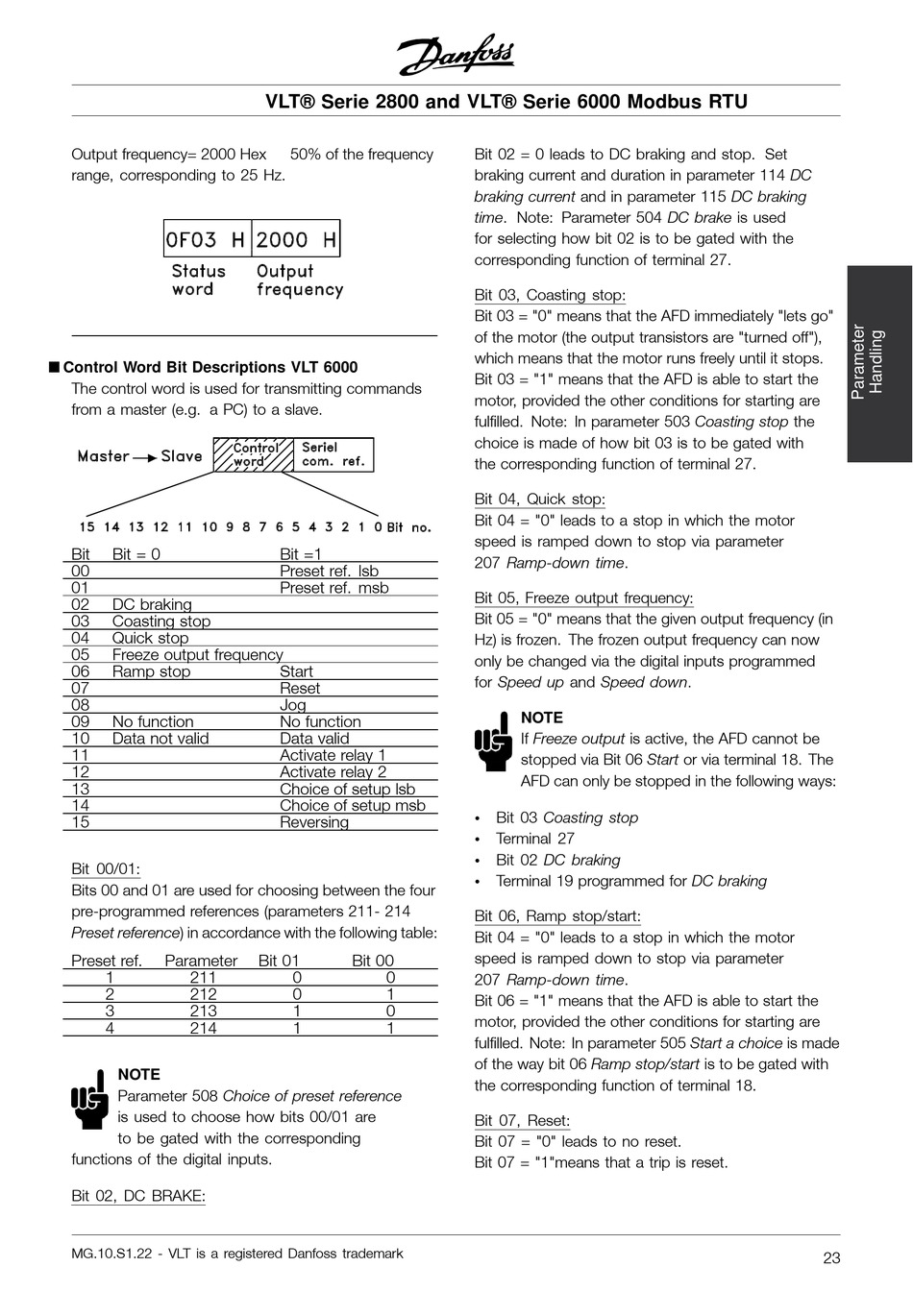

å Control Word Bit Descriptions VLT 6000
The control word is used for transmitting commands
from a master (e.g. a PC) to a slave.
Bit Bit = 0
00
01
02 DC braking
03 Coasting stop
04 Quick stop
05 Freeze output frequency
06 Ramp stop
07
08
09 No function
10 Data not valid
11
12
13
14
15
Bit 00/01:
Bits 00 and 01 are used for choosing between the four
pre-programmed references (parameters 211- 214
Preset reference) in accordance with the following table:
Preset ref. Parameter
1 211
2 212
3 213
4 214
NOTE
Parameter 508 Choice of preset reference
is used to choose how bits 00/01 are
to be gated with the corresponding
functions of the digital inputs.
Bit 02, DC BRAKE:
