152-402-145-02, Issue 2
5
Repeat Step 2. If the test passes, the problem is in the downstream direction. If it fails, the problem is in the
upstream direction.
H2TU-R-402

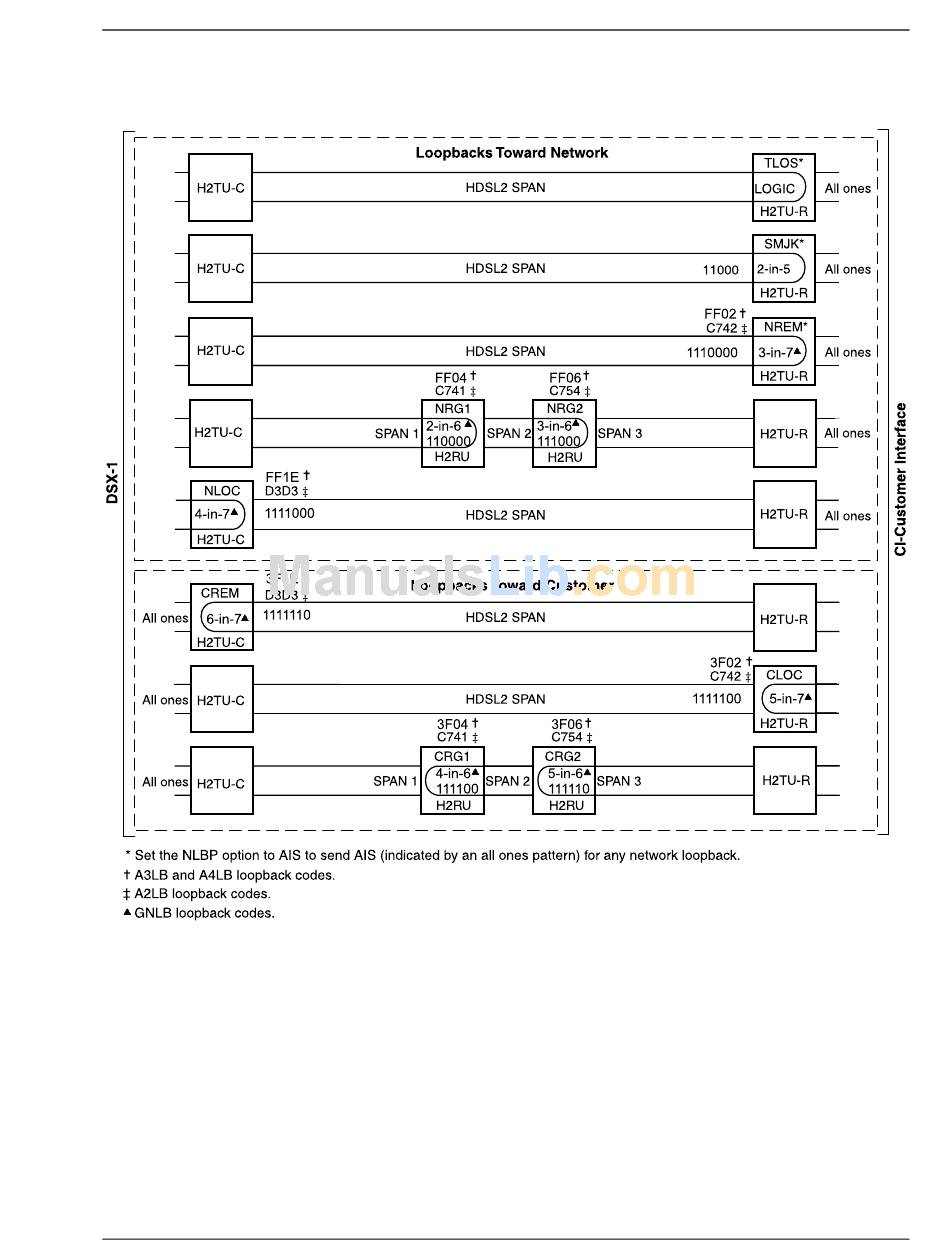

Figure 22. Loopback Modes
June 16, 2000
Loopback Operation
27
