I
NSTALLATION
H2TU-R-402
Wear an antistatic wrist strap when installing the H2TU-R. Avoid touching components on the
circuit board.
1 Check the setting of the SCURR switch. The default setting is disabled (up position). If the H2TU-R is locally
powered, and your application requires sealing current, place the SCURR switch in the down position.
2 Align the H2TU-R with the enclosure slot guides and slide the unit in. Push the unit back until it touches the
backplane card-edge connector.
3 Place your thumbs on the front panel and push the H2TU-R into the card-edge connector.
H2TU-R-402
S O
L IT
A IR
E
L
H
D
A L
S M
L
2
L O
O P
E S
F
S F
B 8
Z S
A M
I
D
L B
S K
1
IN
B R
G
O U
T
R S
-2 3
D C 2
E

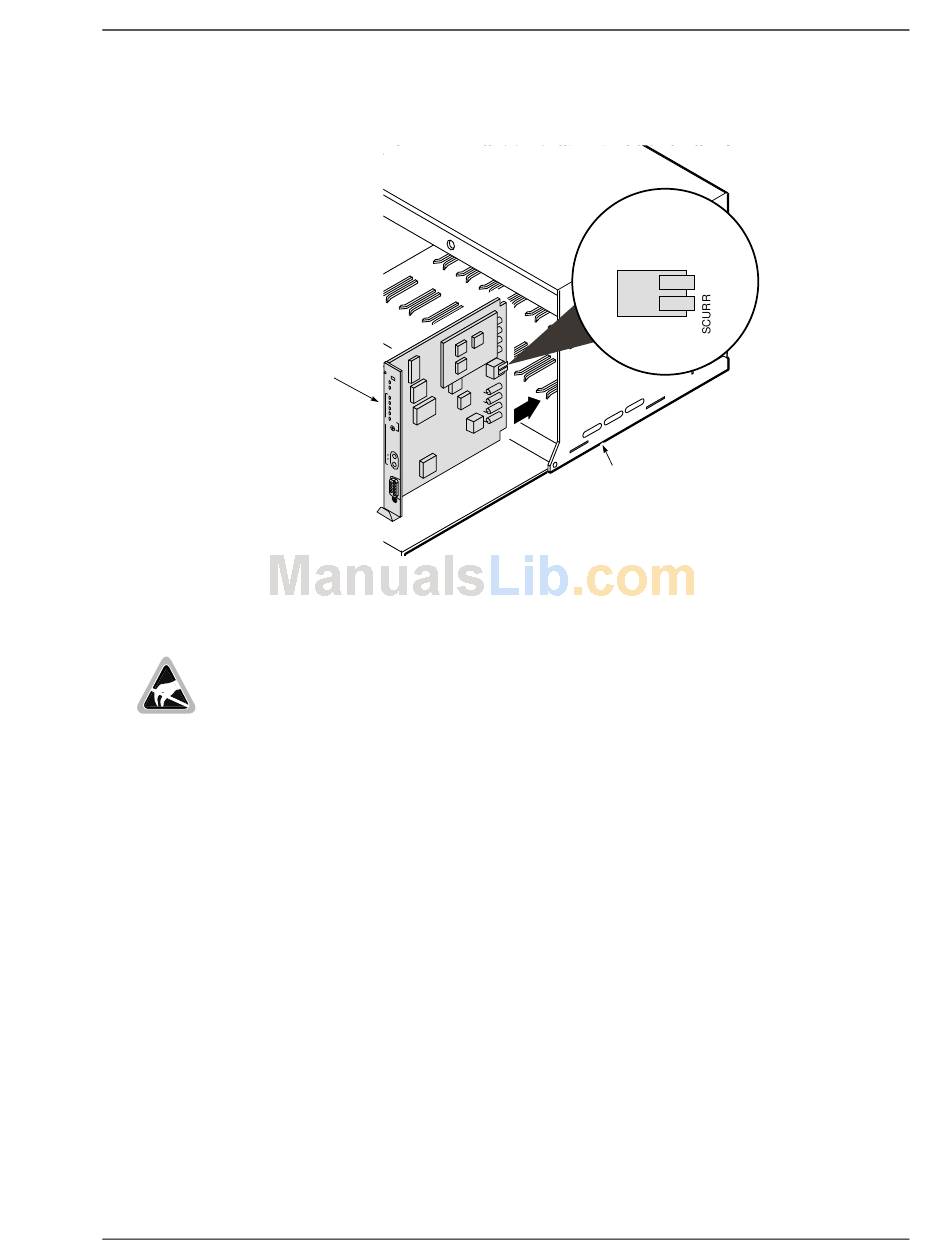

Figure 2. Installing the H2TU-R-402 List 4E
June 16, 2000
SCURR SWITCH
Remote enclosure

Installation

5
