HOLZMANN MASCHINEN H050500034 Instruction Manual

AUTOMATIC HOSE REEL INSTRUCTION MANUAL

1. Attention points before use

1. Please note the hose can't be used for drinkable water except additional indication.
2. Only professional staff can open the cover.
◆
NOTE: Please CAREFULLY read this instruction and keep the paper w ell.

2. Introduction

This is a kind of auto-rewind mechanical hose reel, which is us ed for liquid transmission. The
reel is a perfect tool for garden watering or car cleaning. The reel is equipped with stop
anywhere and slow return mechanism. Stop anywhere mechanism enables the hose stop
anywhere when being pulled out or retracted. It is operated easily. And users can adjust the
length of the hose needed conveniently. Slow return mechanism prevents the hose retracting at
a high speed, and prevents the hose swinging at random, which perfectly avoid the inherent
danger resulted from high retractable speed.

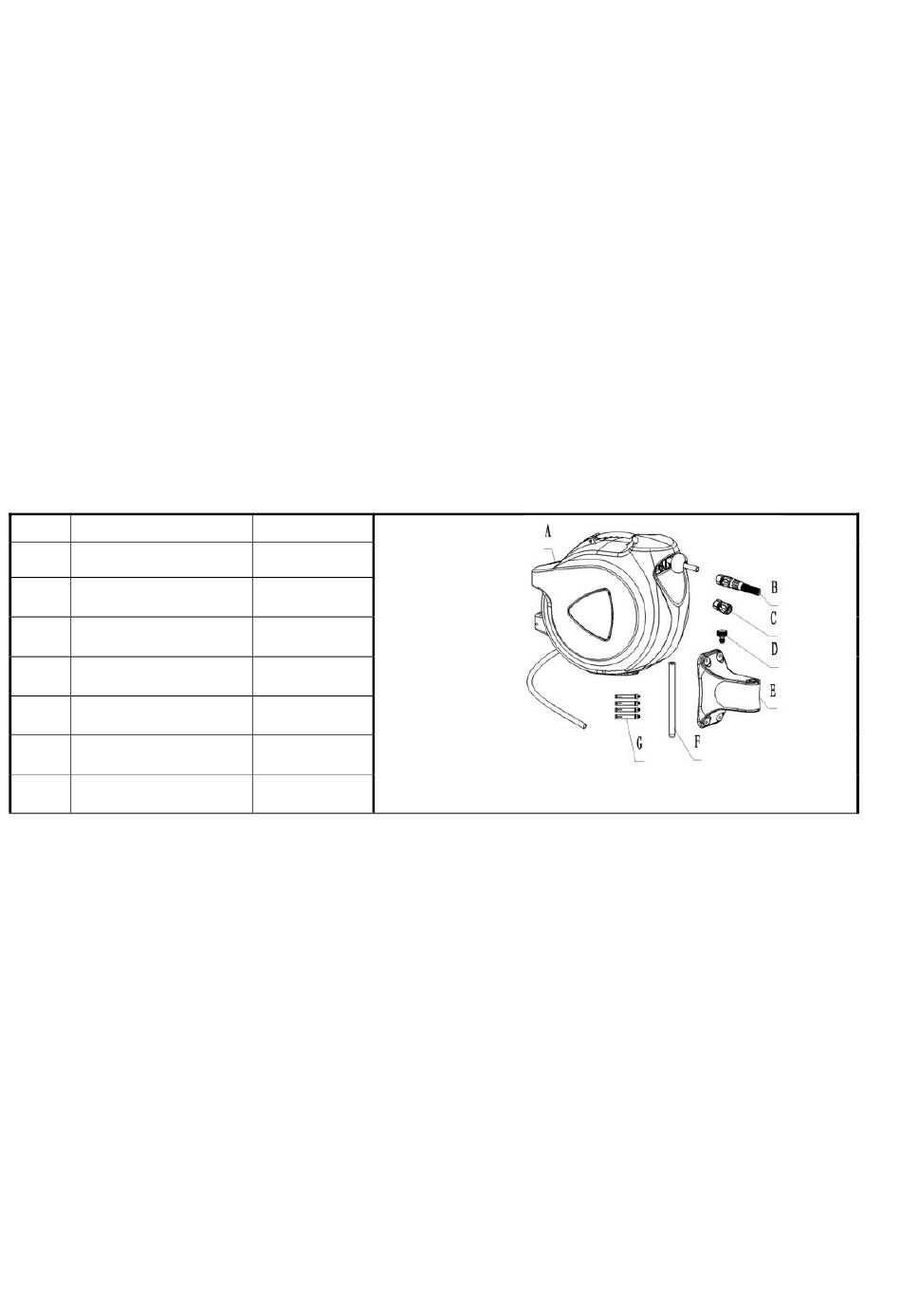

3.Parts list（ Fig.1）
NO Description
A Reel
B Spray nozzle
C Quick connector
D Inlet connector
E Mounting bracket
F Metal tube
G Expansive bolt

4. Tools for assemble and maintenance

1． Electrical hammer, Ø12 driller。
2． Spanner

5. Installation

When installed to a wall or post horizontally
1． Assemble the quick connector and spray nozzle (Fig.2)
2． Choose a suitable place near source of water
3． Install mounting bracket to the wall or post horizontally (Fig.3-Fig.5)
◆ NOTE： when installing the mounting bracket, gradi ent of the bracket should not excess 5º。
4． Connect the reel to the mounting bracket with metal tube (Fig. 6)
5． Connect the inlet hose with the water tap (Fig.7)
Here the reel is fully installed and can swivel 180° (Fig. 8)
Quantity
1 pc
1 set
1 set
1 pc
1 pc
Fig.1
1 pc
4 sets
,
follow the below steps ：
