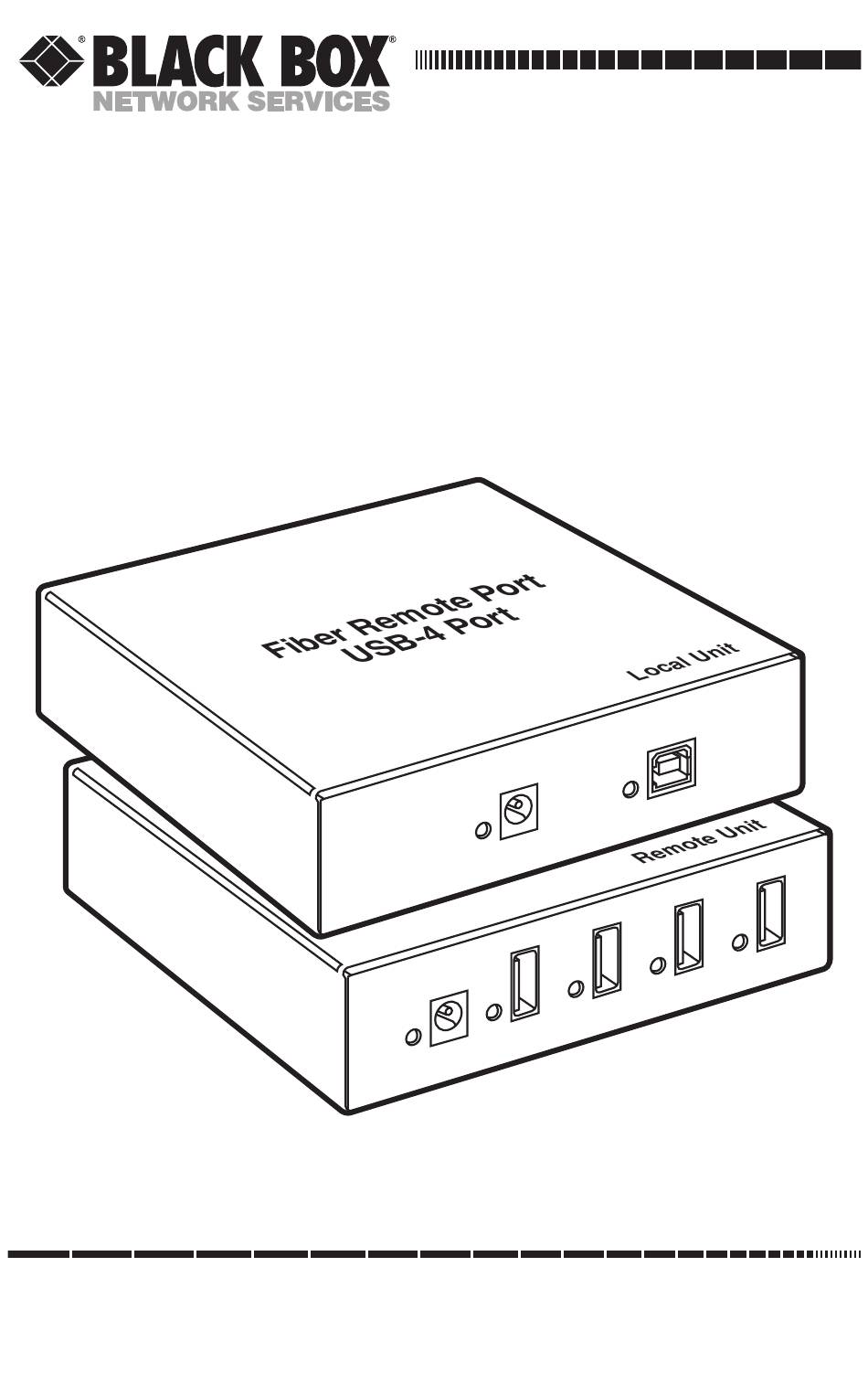

FEBRUARY 2003
IC243A
Fiber RemotePort USB 4-Port
CUSTOMER
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
SUPPORT
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
INFORMATION
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: info@blackbox.com
Advertisement
Table of Contents
Related Manuals for Black Box RemotePort
Summary of Contents for Black Box RemotePort
- Page 1 Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) SUPPORT FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 INFORMATION Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 Web site: www.blackbox.com • E-mail: info@blackbox.com...
- Page 2 FCC/IC RFI STATEMENTS, EU DECLARATION OF CONFORMITY FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY CANADA RADIO-FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication.
- Page 3 FIBER REMOTEPORT USB 4-PORT NORMAS OFICIALES MEXICANAS (NOM) ELECTRICAL SAFETY STATEMENT INSTRUCCIONES DE SEGURIDAD 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura.
- Page 4 E: El aparato ha sido tirado o su cubierta ha sido dañada. TRADEMARKS USED IN THIS MANUAL BLACK BOX and the logo are registered trademarks of Black Box Corporation. Any other trademarks mentioned in this manual are acknowledged to be the property of the...
-
Page 5: Table Of Contents
3.5.1 With Surface (Exposed) Cabling ........... 12 3.5.2 With Premise Cabling ..............13 3.6 Check the Installation ................13 Troubleshooting ....................14 4.1 Problems, Causes, and Solutions ............. 14 4.2 Calling Black Box ..................16 4.3 Shipping and Packaging ................16... -
Page 6: Specifications
CHAPTER 1: Specifications 1. Specifications Between local and remote units: Duplex 62.5/125-µm Cable Required: multimode, 50/125-µm multimode, or 9/125-µm single- mode fiberoptic cable terminated with MT-RJ male connectors; Between local unit and attached USB host: USB Type A to Type B cable (a 2-m/6.5-ft. cable is included); Between remote unit and attached USB devices: Devices with hardwired Type A cords plug directly into the remote unit;... - Page 7 FIBER REMOTEPORT USB 4-PORT Temperature Tolerance: 39.2 to 104˚F (4 to 40˚C) Humidity Tolerance: 10 to 90% noncondensing Enclosure: Steel Power: For each unit: From utility-power (mains) outlet through detachable input cord and IEC 320 inlet to external transformer: Input to transformer: 100 to 240 VAC, 47 to 63 Hz, autosensing;...
-
Page 8: Introduction

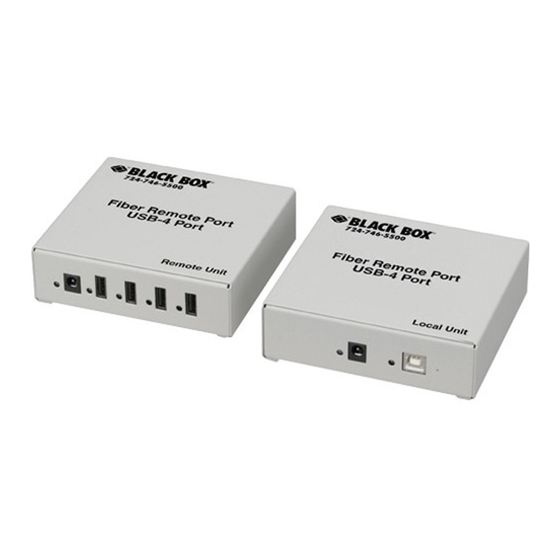

The RemotePort consists of a local unit and a remote unit. The local unit, shown at top in Figure 2-1, can be connected to a host computer with a standard Type A to Type B USB cable, a 2-m (6.5-ft.) length of which is included. -
Page 9: Usb Connectors
When daisychaining USB hubs, the RemotePort USB acts as a single hub and can occupy any of the (up to) five positions in the USB chain. -
Page 10: Connecting A Single Device
CHAPTER 2: Introduction 2.3.1 C ONNECTING A INGLE EVICE Fiberoptic data outlet Local unit Host computer Your site’s fiberoptic cabling Fiberoptic Remote USB camera data outlet unit Figure 2-4. A dedicated extension connecting a USB surveillance camera. 2.3.2 C ONNECTING ULTIPLE OLOCATED EVICES... -
Page 11: Connecting Devices At Multiple Locations
FIBER REMOTEPORT USB 4-PORT 2.3.3 C ONNECTING EVICES AT ULTIPLE OCATIONS Host computer with at least two USB ports Fiberoptic Fiberoptic data outlet data outlet Local unit Local unit Your site’s fiberoptic cabling Remote USB keyboard unit Fiberoptic at presenter’s... -
Page 12: Installation
• (2) Identical AC input cords, (1) for each power supply. • (1) Standard 6.6-ft. (2-m) Type A to Type B USB cable. • This users’ manual. If anything is missing or damaged, call Black Box Technical Support at 724-746-5500. 3.2 Site Preparation Before you install the RemotePort, you’ll need to prepare your site:... -
Page 13: Install The Local Unit
FIBER REMOTEPORT USB 4-PORT 3.3 Install the Local Unit 1. Place the local unit near the host computer you want to connect. 2. Plug the Type B connector on the included USB cable into the USB (host) port on the local unit. -
Page 14: With Premise Cabling
3.6 Check the Installation To verify that you’ve installed your Fiber RemotePort USB 4-Port correctly, make sure that all of LEDs on the local and remote units are lit except for the device LEDs on the remote unit that correspond to USB device ports that aren’t being used. -
Page 15: Troubleshooting
2. Unplug the local unit’s power supply and then plug it back in. 3. Reset or reboot the computer. 4. If the computer consistently fails to recognize the RemotePort as a “Generic USB Hub,” call Black Box Technical Support as directed in Section 4.2. - Page 16 Probable causes: Either the connection between the remote unit and any USB device whose LED isn’t lit is not correct, the device or the RemotePort is malfunctioning, or the USB device is incompatible with the RemotePort.
-
Page 17: Calling Black Box
If you need to transport or ship your Fiber RemotePort USB 4-Port: • Package it carefully. We recommend that you use the original container. • If you are returning the RemotePort or shipping it for repair, make sure you include everything that came in the original package. Before you ship, contact... - Page 18 LEGAL INFORMATION DISCLAIMERS AND NOTICES The Fiber RemotePort USB 4-Port complies with all USB 1.1 specifications. However, the manufacturer does not guarantee that it will work with all USB devices. The manufacturer expressly disclaims all other merchantability and fitness for a particular purpose and non-infringement of third-party rights with respect to the hardware.
- Page 19 NOTES...
- Page 20 © Copyright 2003. Black Box Corporation. All rights reserved. 1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax 724-746-0746...
