User Manual
Manual and installation guide for LB300A-R3

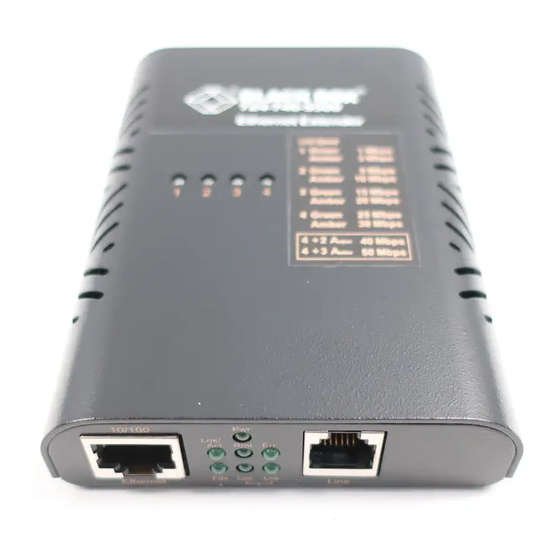

LB300A-R3, Ethernet Extender introduced here provides one channel for Ethernet over VDSL. The
following description provide as installation guide and manual.
Product Overview
Product Features
One 10/100BaseTX (TX) Ethernet port with RJ-45 connector
Auto negotiation of speed and duplex mode on TX port
Auto MDIX on TX port
Complies with IEEE 802.3 10BaseT and IEEE 802.3u 100BaseTX standards
One Ethernet Extender port with RJ-11 connector
Ethernet Extender port auto senses the speed of 1/3/5/10/15/20/25/30/40/50Mbps
One DIP switch for configuring Ethernet Extender local or remote mode
Status LEDs
External AC to DC power adapter
Used as a stand-alone device or with a chassis
Hot-swappable when used with a chassis
Packing List
When you unpack this product package, you will find the items listed below. Please inspect the contents, and report
any apparent damage or missing items immediately to Black Box.
LB300A-R3, Ethernet Extender
Installation Manual Guide
AC to DC Power Adaptor
VDSL Mode Settings
VDSL mode settings are made very simple by means of a switch at the rear panel of the VDSL Extender. The
switch has two positions for VDSL mode settings. Refer to the table below for more details. One device must be
set to Loc and the other to Rmt when two devices are connected.
Loc
The device operates in local mode
CUSTOMER
SUPPORT
INFORMATION
Order toll-free in the U.S. 24 hours, 7 A.M. Monday to midnight Friday: 877-877-BBOX
FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web Site: www.blackbox.com
Rmt
The device operates in remote mode
1
E-mail: info@blackbox.com
