Overview - Pentair INTELLIVALVE Installation And User Manual

4
IntelliValve ™
The IntelliValve Valve Actuator is an electronically controlled motorized valve actuator
which rotates the diverter valve to a set position for the desired proportion of water flow
for various applications.
From the control pad the IntelliValve valve actuator provides easy setup and control
of your diverter valve for pool and spa combinations, fountains, and water features.
IntelliValve valve actuator supports Pentair, Compool
and is compatible with all 24 VAC control systems.
Features
• 24 Volt 50/60 Hz. 0.75 electronically controlled motorized valve actuator
• Easy access operator control pad for quick diverter positioning
• LEDs indicate diverter location and travel end point positions
• 46 possible set positions (approximately every 3.75 degrees) indicated by
24 diverter position LEDs.
• Retrofit for all pool/spa diverter valves
• Fits all industry standard compatible diverter valves for pool/spa and pool/
water feature combinations
• 20 ft. Power Cable
Red arrow button
(Counterclockwise
diverter rotation)
0-24 Red LEDs
Auto mode LED Green
OFF mode LED Red
™
INTELLIVALVE Valve Actuator Installation and User's Guide
Valve Actuator Overview
L

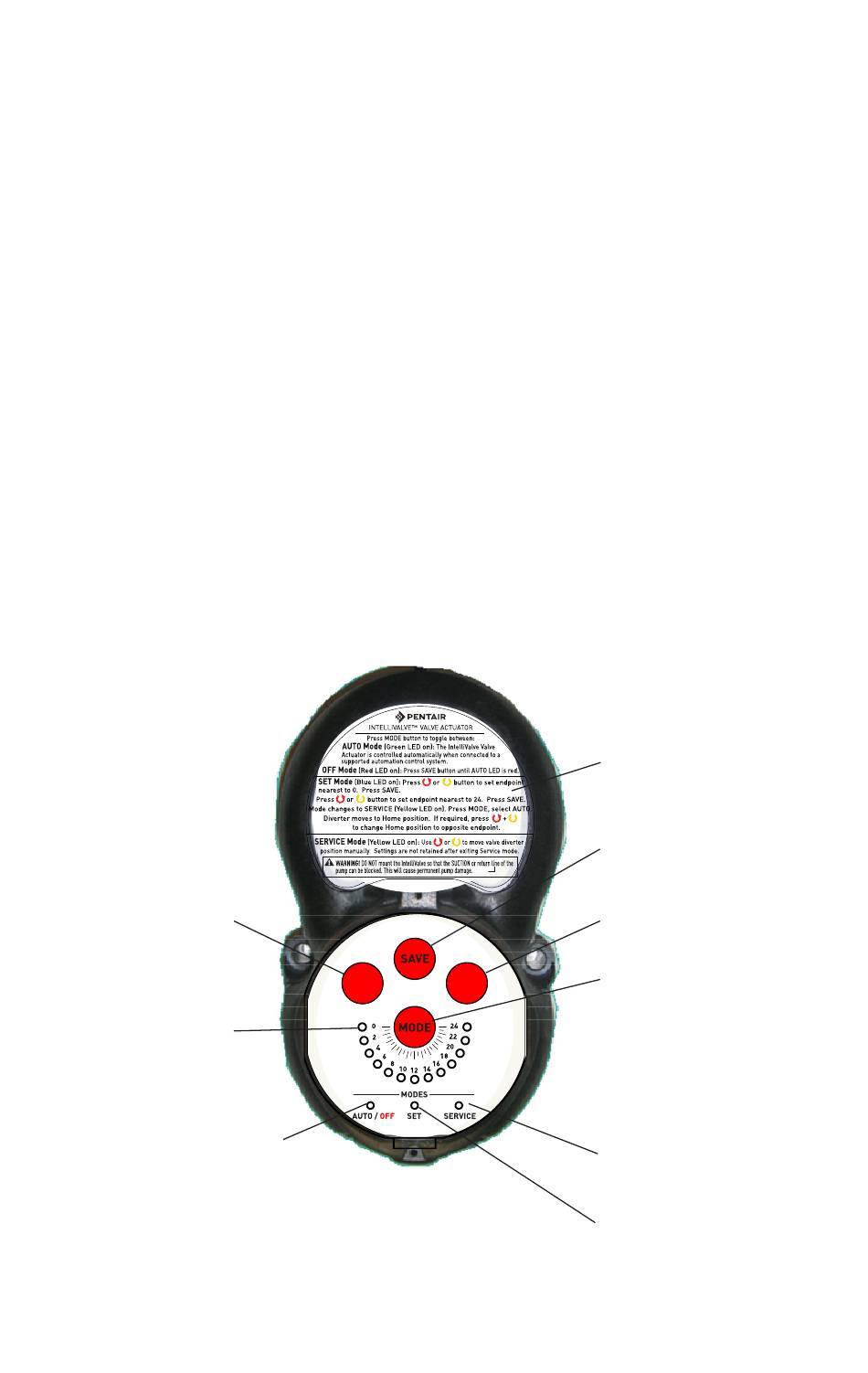

IntelliValve Valve Actuator Control Pad
®
CCW/CW
SAVE
CCW CW
R
MODE
24
22
2
20
4
6 18
8 16
10 12 14
AUTOOFF SET SERVICE
®
, Ortega or Jandy
Operation Instructions
SAVE
(Save settings button)
Yellow arrow button
(Clockwise diverter rotation)
Mode button (Toggles
between AUTO, SET,
and SERVICE modes.)
SERVICE mode LED
(Yellow)
SET mode LED (Blue)
®
diverter valves
