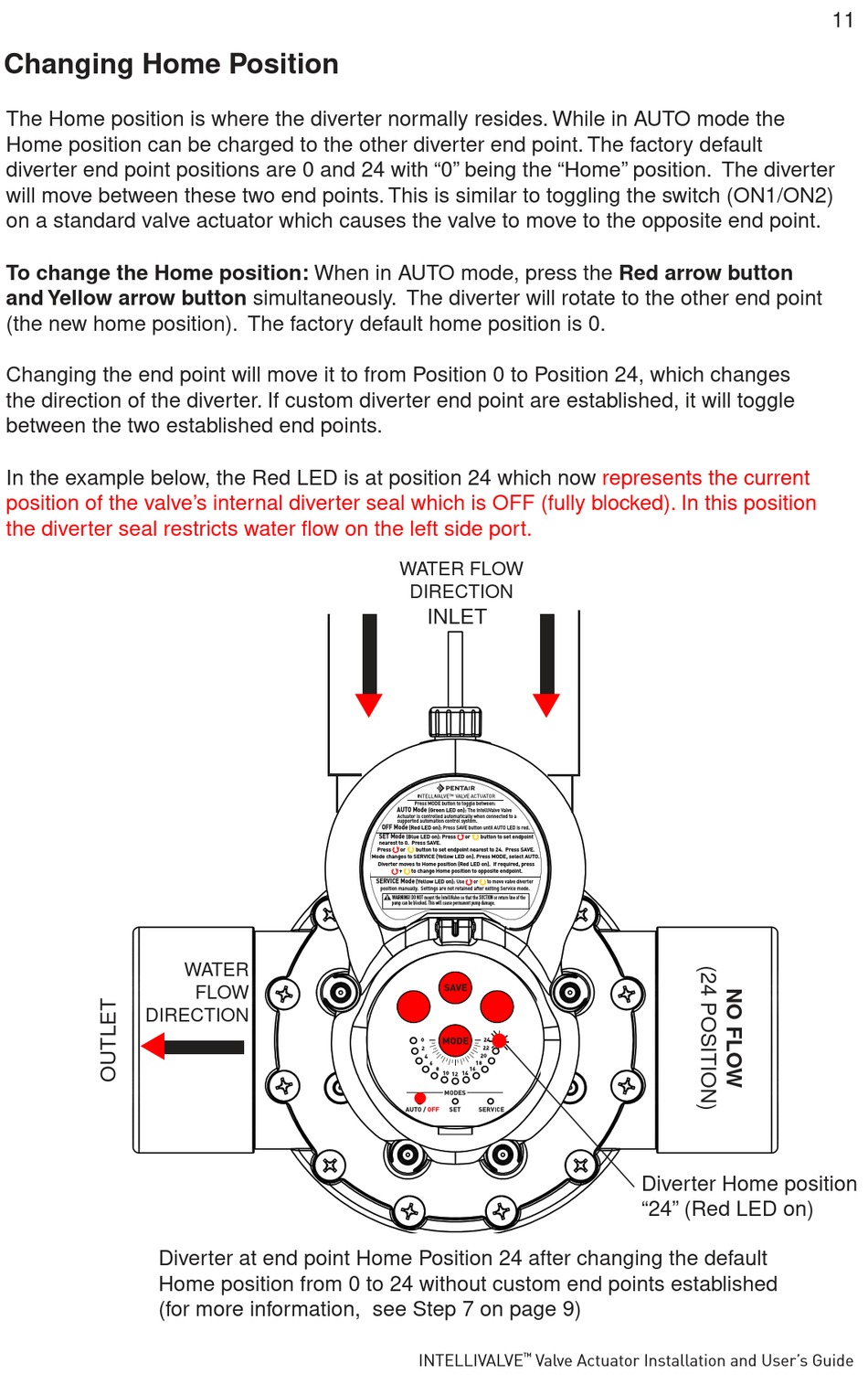

Changing Home Position

The Home position is where the diverter normally resides. While in AUTO mode the
Home position can be charged to the other diverter end point. The factory default
diverter end point positions are 0 and 24 with "0" being the "Home" position. The diverter
will move between these two end points. This is similar to toggling the switch (ON1/ON2)
on a standard valve actuator which causes the valve to move to the opposite end point.
To change the Home position: When in AUTO mode, press the Red arrow button
and Yellow arrow button simultaneously. The diverter will rotate to the other end point
(the new home position). The factory default home position is 0.
Changing the end point will move it to from Position 0 to Position 24, which changes
the direction of the diverter. If custom diverter end point are established, it will toggle
between the two established end points.
In the example below, the Red LED is at position 24 which now
position of the valve's internal diverter seal which is OFF (fully blocked). In this position
the diverter seal restricts water flow on the left side port.
DIRECTION
Diverter at end point Home Position 24 after changing the default
Home position from 0 to 24 without custom end points established
(for more information, see Step 7 on page 9)
WATER
FLOW
WATER FLOW
DIRECTION
INLET

Press MODE button to toggle between:
AUTO Mode (Green LED on): The IntelliValve Valve
Actuator is controlled automatically when connected to a
supported automation control system.
OFF Mode
(Red LED on): Press SAVE button until AUTO LED is red.
SET Mode (Blue LED on):
Press or button to set endpoint
nearest to 0. Press SAVE.
Press or button to set endpoint nearest to 24. Press SAVE.
Mode changes to SERVICE (Yellow LED on). Press MODE, select AUTO.
Diverter moves to Home position (Red LED on). If required, press
+ to change Home position to opposite endpoint.
SERVICE Mode (Yellow LED on): Use or to move valve diverter
position manually. Settings are not retained after exiting Service mode.
WARNING! DO NOT mount the IntelliValve so that the SUCTION or return line of the
pump can be blocked. This will cause permanent pump damage.
INTELLIVALVE
represents the current

Diverter Home position
"24" (Red LED on)
™ Valve Actuator Installation and User's Guide
11
