IntelliTouch ® Control System:
1. IntelliTouch Control System Personality: (Intake and Return Valve):
Connect the IntelliValve valve actuator power cable connector to the
INTAKE (suction) and/or RETURN 3-pin socket. If required, there are two
optional valve 3-pin sockets available (Valve A and Valve B). Excess cable
can be coiled in the enclosure low voltage raceway left side compartment.
Do not coil the conductor in upper low voltage compartment. For valve
actuator circuit board socket location see diagram below.
Note: IntelliTouch Control System Optional Valve Module Expansion Board:
Using a Valve Module Expansion board (P/N 520285), three additional
valve actuators (VALVE C, D and E) can be added to the system. The
expansion board attaches to the edge of the IntelliTouch Personality
board. For installation and operation information, refer to the IntelliTouch
Valve Actuator Installation Guide (P/N 520294).
Test the IntelliValve Valve Actuators:
Switch on power to the control system at the circuit breaker and verify that
the IntelliValve valve actuator are operating correctly.

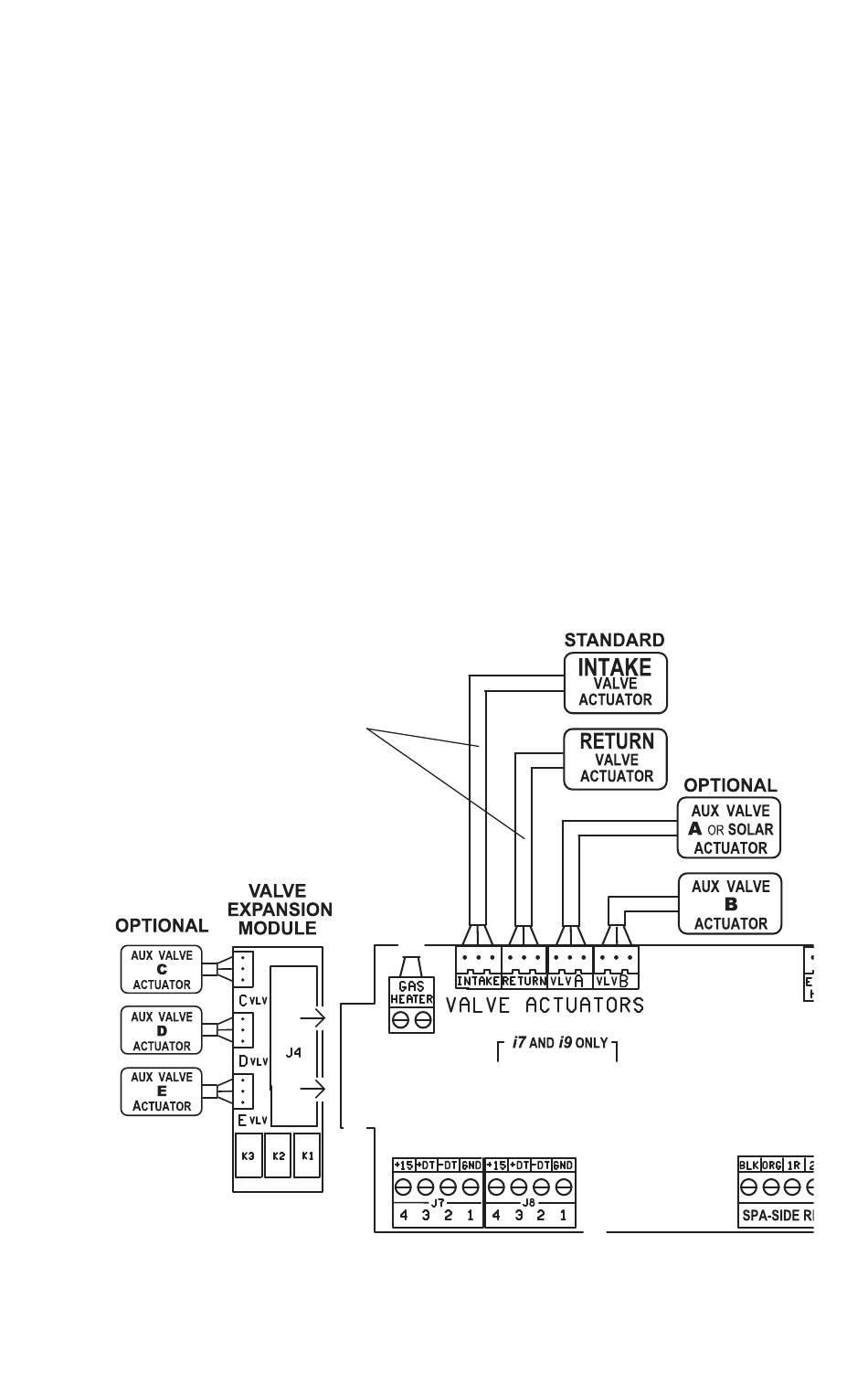

Connect IntelliValve
power cable connector
to Intake and Return
valve 3-pin Socket
IntelliTouch Personality Circuit Boa
IntelliTouch Control System Circuit Board
™
