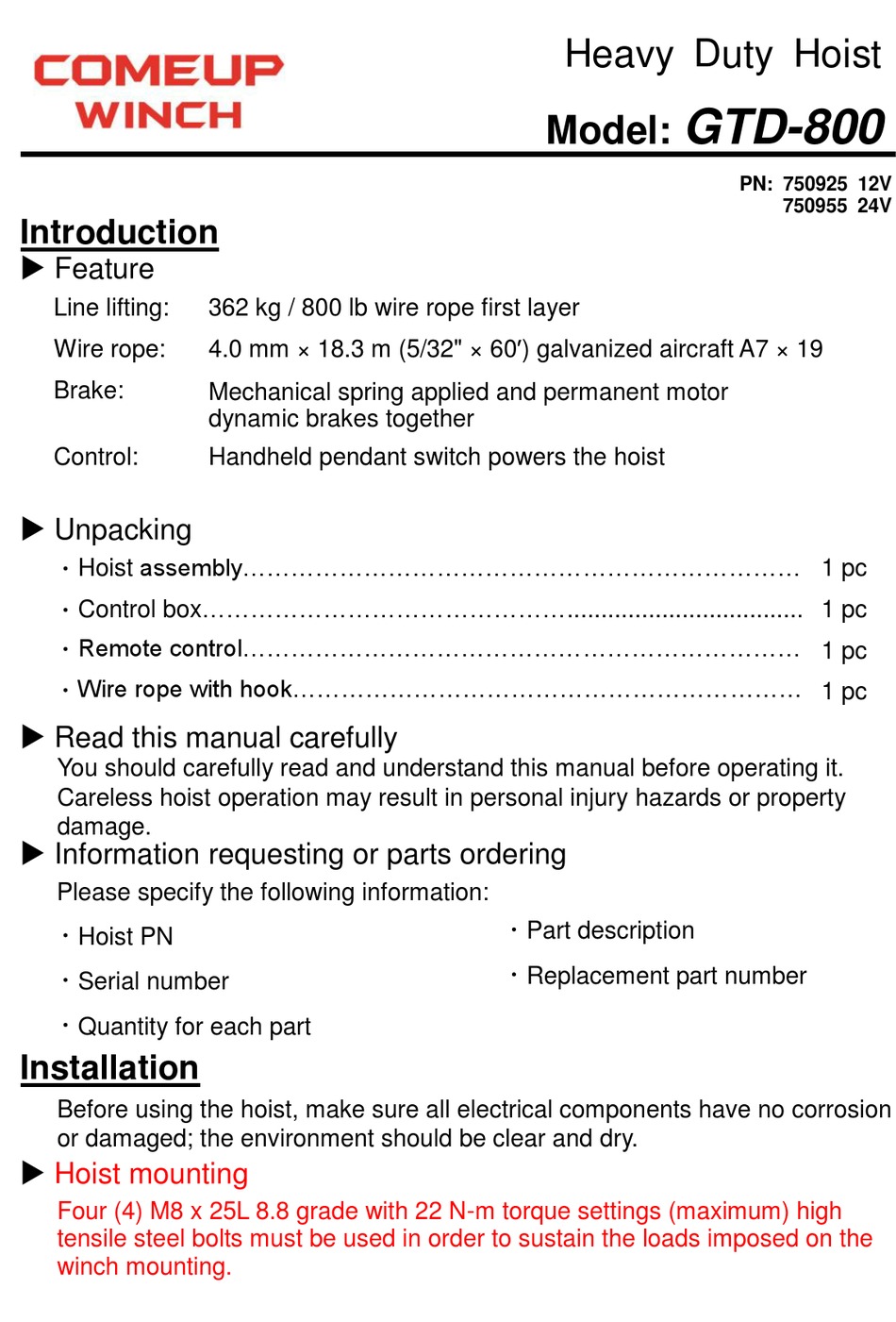

Introduction
Feature
Line lifting:
Wire rope:
Brake:
Control:
Unpacking
．Hoist assembly..................................................................... 1 pc
．Control box................................................................................ 1 pc
．Remote control..................................................................... 1 pc
．Wire rope with hook............................................................... 1 pc
Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless hoist operation may result in personal injury hazards or property
damage.
Information requesting or parts ordering
Please specify the following information:
． Hoist PN
． Serial number
． Quantity for each part
Installation
Before using the hoist, make sure all electrical components have no corrosion
or damaged; the environment should be clear and dry.
Hoist mounting
Four (4) M8 x 25L 8.8 grade with 22 N-m torque settings (maximum) high
tensile steel bolts must be used in order to sustain the loads imposed on the
winch mounting.
362 kg / 800 lb wire rope first layer
4.0 mm × 18.3 m (5/32" × 60') galvanized aircraft A7 × 19
Mechanical spring applied and permanent motor
dynamic brakes together
Handheld pendant switch powers the hoist

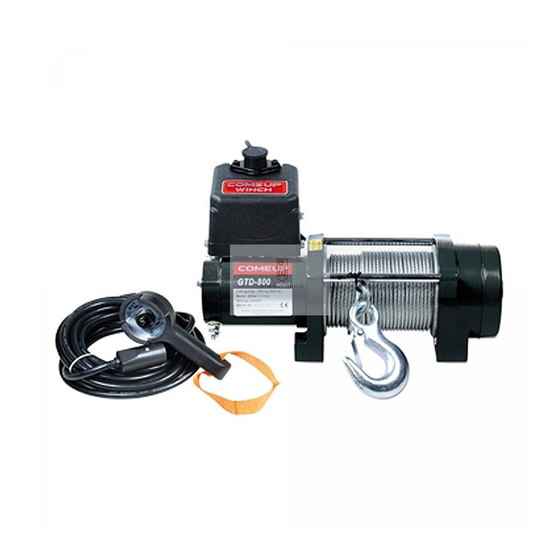

Heavy Duty Hoist
Model:
． Part description
． Replacement part number
GTD-800
PN: 750925 12V
750955 24V
Advertisement
Table of Contents
Related Manuals for Comeup GTD-800
Summary of Contents for Comeup GTD-800
- Page 1 Heavy Duty Hoist GTD-800 Model: PN: 750925 12V 750955 24V Introduction Feature Line lifting: 362 kg / 800 lb wire rope first layer Wire rope: 4.0 mm × 18.3 m (5/32" × 60′) galvanized aircraft A7 × 19 Brake:...
- Page 2 Wire Rope Replacement ．Feed the end of the wire rope into anchor hole in the drum and make a self-circle on the anchor pocket. Insert a wedge in the self-circle and tighten the rope for securing purpose. ．Make sure the first layer of wire rope is tight and maintain a freeboard at least 1.5 x rope diameter.
- Page 3 Warning ．The operator shall always work in compliance with the operating instructions. ．Overload shall be forbidden and overload protection shall be required. ． Ban on transporting persons and excessive inching shall be avoided. ．Don’t try to move obstructed loads and side-pull of load is not allowed ．...
- Page 4 Hoist Assembly...
