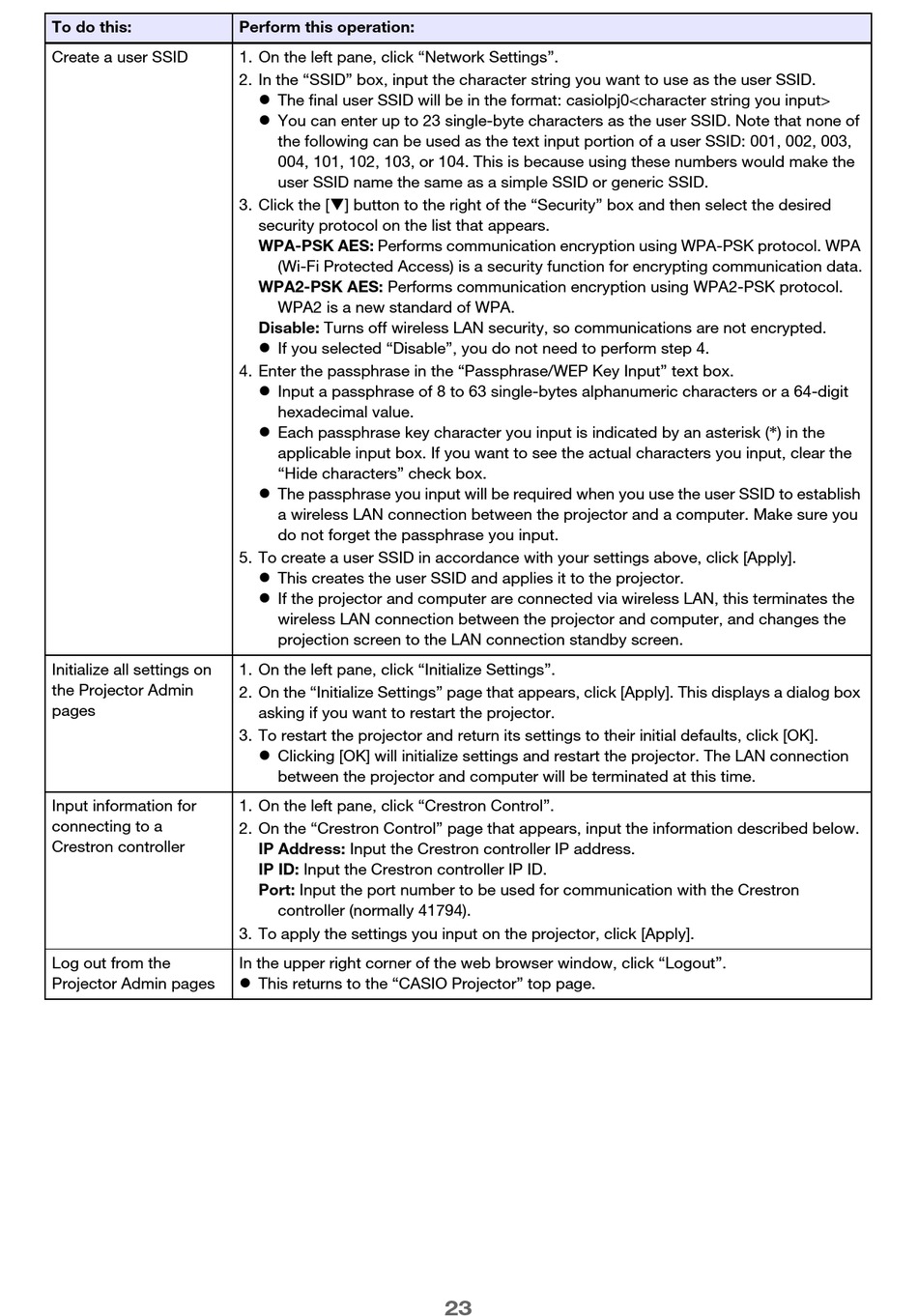

Casio XJ-UT311WN Network Function Manual page 23

To do this:
Create a user SSID
Initialize all settings on
the Projector Admin
pages
Input information for
connecting to a
Crestron controller
Log out from the
Projector Admin pages
Perform this operation:
1. On the left pane, click "Network Settings".
2. In the "SSID" box, input the character string you want to use as the user SSID.
 The final user SSID will be in the format: casiolpj0<character string you input>
 You can enter up to 23 single-byte characters as the user SSID. Note that none of
the following can be used as the text input portion of a user SSID: 001, 002, 003,
004, 101, 102, 103, or 104. This is because using these numbers would make the
user SSID name the same as a simple SSID or generic SSID.
3. Click the [] button to the right of the "Security" box and then select the desired
security protocol on the list that appears.
WPA-PSK AES: Performs communication encryption using WPA-PSK protocol. WPA
(Wi-Fi Protected Access) is a security function for encrypting communication data.
WPA2-PSK AES: Performs communication encryption using WPA2-PSK protocol.
WPA2 is a new standard of WPA.
Disable: Turns off wireless LAN security, so communications are not encrypted.
 If you selected "Disable", you do not need to perform step 4.
4. Enter the passphrase in the "Passphrase/WEP Key Input" text box.
 Input a passphrase of 8 to 63 single-bytes alphanumeric characters or a 64-digit
hexadecimal value.
 Each passphrase key character you input is indicated by an asterisk (*) in the
applicable input box. If you want to see the actual characters you input, clear the
"Hide characters" check box.
 The passphrase you input will be required when you use the user SSID to establish
a wireless LAN connection between the projector and a computer. Make sure you
do not forget the passphrase you input.
5. To create a user SSID in accordance with your settings above, click [Apply].
 This creates the user SSID and applies it to the projector.
 If the projector and computer are connected via wireless LAN, this terminates the
wireless LAN connection between the projector and computer, and changes the
projection screen to the LAN connection standby screen.
1. On the left pane, click "Initialize Settings".
2. On the "Initialize Settings" page that appears, click [Apply]. This displays a dialog box
asking if you want to restart the projector.
3. To restart the projector and return its settings to their initial defaults, click [OK].
 Clicking [OK] will initialize settings and restart the projector. The LAN connection
between the projector and computer will be terminated at this time.
1. On the left pane, click "Crestron Control".
2. On the "Crestron Control" page that appears, input the information described below.
IP Address: Input the Crestron controller IP address.
IP ID: Input the Crestron controller IP ID.
Port: Input the port number to be used for communication with the Crestron
controller (normally 41794).
3. To apply the settings you input on the projector, click [Apply].
In the upper right corner of the web browser window, click "Logout".
 This returns to the "CASIO Projector" top page.
23
