Installing and Removing SFP+ Module
The following is described how to install and remove the Option SFP+ Module in and from the Switch Module.
IMPORTANT:
Attach the dust covers to all vacant LC connectors to protect them
・
from contamination, if you store or transport the Switch Module
which the SFP+ modules are installed.
Optical power and sensitivity may be lower and cause malfunction
・
by coming into contact with contamination.
Install the SFP+ module to the SFP+ module slot straight. Do not
・
force to install it to avoid damage the module.
Avoid direct look into the laser beam.
N8406-024F 1000BASE-SX SFP Module, N8406-037F SFP+ Module and N8406-053F
QSFP+ Module are classified as a Class 1 Laser Product. A class 1 laser will not be
harmful to the human body. However, do not look directly into the SFP+ module port
during operation. Keep any vacant LC connector covered with a dust cover (rubber cap)
when you do not use it or you transport it.

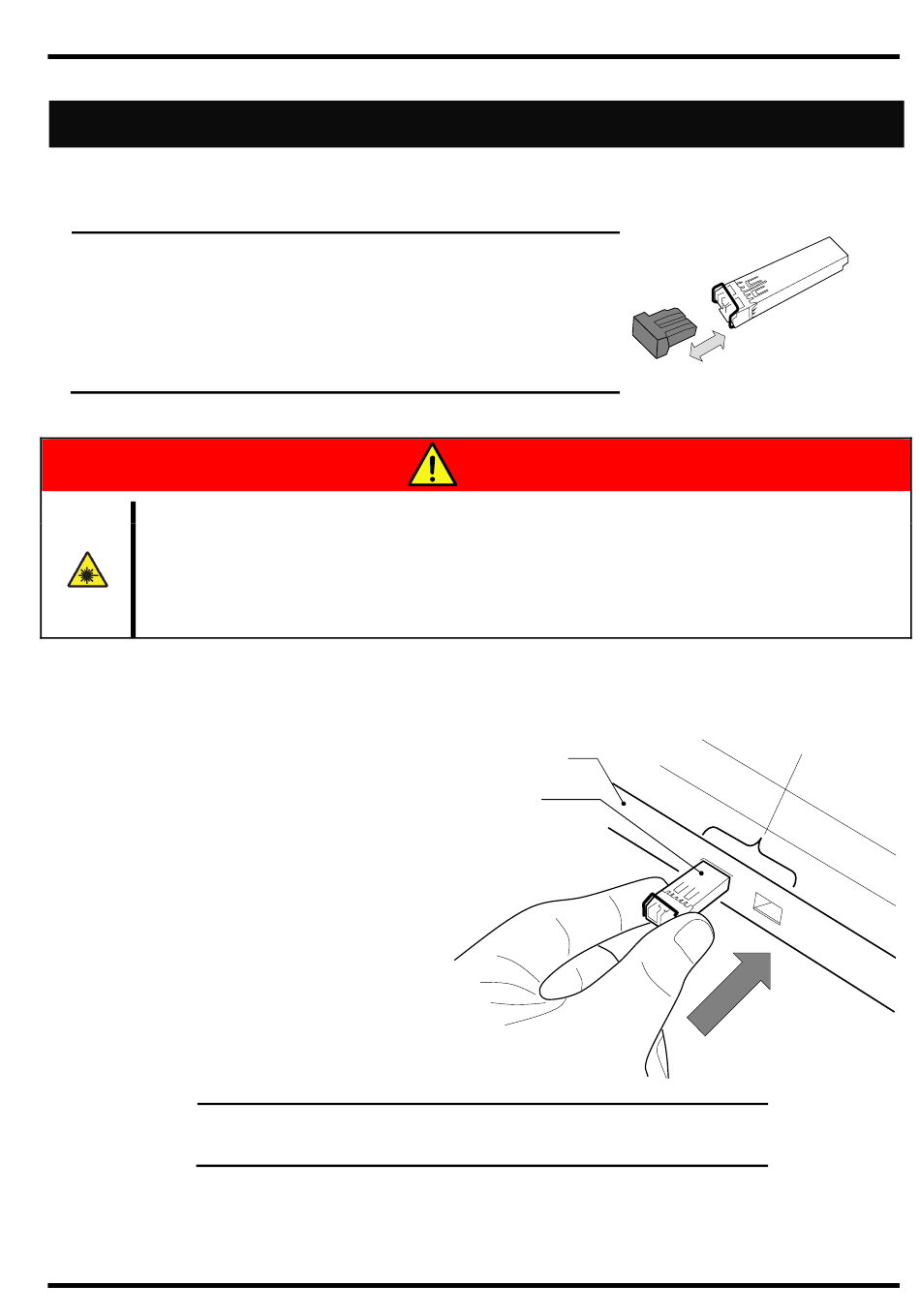

Installing XFP Module
Remove the dust cover attached to the SFP+ module slot in the Switch Module.
1
Insert the SFP+ module to the SFP+
2
module slot in the Switch Module.
NOTE: Insert the SFP+ module to the SFP+ module slot without pulling
down the lever. If you insert with the lever pulled down, a communication
failure may occur.
WARNING
Switch Module
SFP+ module
SFP+ Module
Dust cover
SFP+ module slot
