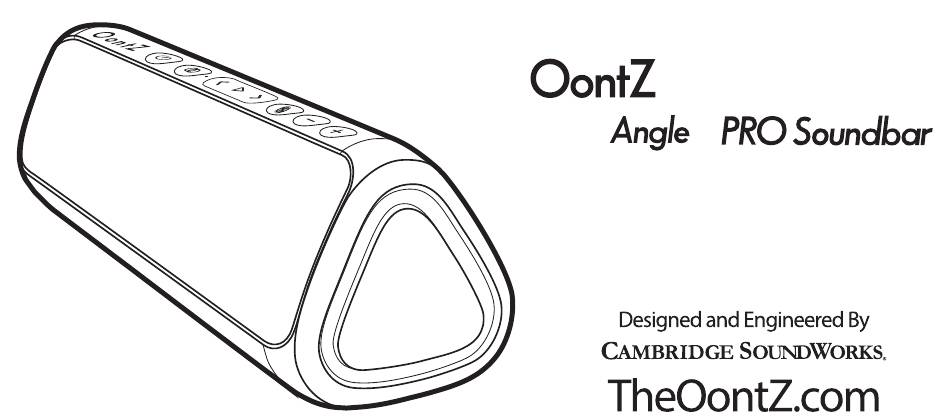

User Guide
3
The Speaker for Television
Incredible Sound, Powerful Volume, Connect other OontZ Speakers
OontZ App for the OontZ Angle 3 Pro Soundbar
Control the OontZ Angle 3 Pro Soundbar Advanced Features
from your iPhone or Smartphone

Advertisement

Table of Contents
loading

Related Manuals for Oontz Angle 3 Pro

Summary of Contents for Oontz Angle 3 Pro

  • Page 1 User Guide The Speaker for Television Incredible Sound, Powerful Volume, Connect other OontZ Speakers OontZ App for the OontZ Angle 3 Pro Soundbar Control the OontZ Angle 3 Pro Soundbar Advanced Features from your iPhone or Smartphone...
  • Page 2 In the Package User Guide 3.5mm Stereo Audio Cable Remote Control Digital Audio Optical Cable Power Adapter (Dual Voltage)

  • Page 3: Table Of Contents

    Using the OontZ Remote Control 10 -11 Connecting OontZ Speakers Together Dual Mode - Connect Two OontZ Angle 3 Pro Soundbar Speakers Together 13 - 16 Surround Mode - Connect 2, 3, or 4 Supported OontZ Speakers Together 17 - 19...

  • Page 4: Buttons, Lights, And Connectors

    Buttons Multi-Function Play/Pause Volume Up Power Volume Down Source Track Track Forward Back Switch between Aux In, Optical In and Bluetooth Sources Switch between Music and Movie Mode Important - Some apps may not support track back, track forward, or play/pause Page 1...
  • Page 5 13. Lit Orange when speakers are in Surround Mode - With 2, 3 or 4 OontZ Angle 3 Pro speakers (sold separately) you can wirelessly connect the speakers together to play with Surround Mode. - For Surround Mode instructions please see page 17.
  • Page 6 Connectors Power Adapter Charging Connector USB Power Bank - Use for keeping your iPhone or Optical IN Smartphone charged while playing. Jack - Use to power your Echo Input. - Output 5V - 1A AUX IN Jack DC IN 15V AUX IN OPTICAL IN Page 3...

  • Page 7: Turning On And Off

    Turning On and Off Step 1: Connect the wall plug end of Turn ON - Press and Release the Power Button the Power Adapter into a power outlet. - Power Button Light will turn turn off - Source Button Light will turn Blue, Green or Red depending on the last setting before the speaker was turned off...

  • Page 8: Connecting With Television Using The Digital Audio Optical Cable

    We recommend to connect to your TV using the Digital Audio Optical Out Connector. If the TV does not have a Digital Audio Optical Out Connector, use the 3.5mm Audio Connection as described on Page 6. - Plug the longer end of the Digital Audio Optical Cable into the Optical In Connector on the OontZ Angle 3 Pro Soundbar as shown below.

  • Page 9: Connecting With A Television Using The 3.5Mm Audio Cable

    Connecting with a Television Using the 3.5mm Audio Cable - Plug one end of the 3.5mm Audio Cable into the AUX In Connector on the OontZ Angle 3 Pro Soundbar. - Plug the other end of that 3.5mm Audio Cable into the Headphone or Audio-Out Connector on your television.

  • Page 10: Connecting With Your Device Using Bluetooth

    - To disconnect the current device, press and hold down the Multi-Function button for 3 seconds. - The Source Light will begin flashing and the OontZ Angle 3 Pro Soundbar is ready for the next device to pair and connect.
  • Page 11 - Go to Settings > Bluetooth, check Bluetooth is on - Select 'OontZ Angle 3P SB xxx' when it appears under DEVICES (xxx: 3 characters which are unique to your speaker) - Your device will connect in a few seconds...
  • Page 12 - Alexa will announce: "Connected to OontZ Angle 3P SB xxx" To connect the next time, turn on the OontZ Angle 3 Pro Soundbar, press the Source Button until the light is Blue and say "Alexa, connect my speaker" or "Alexa, pair"...

  • Page 13: Using The Oontz Remote Control

    OontZ Angle 3 Pro Soundbar is powered on. The Source Button Light on the OontZ Angle 3 Pro Soundbar will flash 6 times when the remote and the OontZ Angle 3 Pro Soundbar are paired.
  • Page 14 Using the OontZ Remote with the OontZ Angle 3 Pro Soundbar Volume Up Source set to Bluetooth - Press one time to increase the volume of - Press one time to Pause and again to Play. your OontZ Angle 3 Pro Soundbar one Source set to Aux In or Optical In level.

  • Page 15: Connecting Oontz Speakers Together

    Dual Mode (See Page 13) Surround Mode (See Page 17) Stereo Connect two OontZ Angle 3 Pro Soundbar speakers Connect the OontZ Angle 3 Pro Soundbar together to play Left Channel - Right Channel or Full with up to 3 other OontZ Supported...

  • Page 16: Dual Mode - Connect Two Oontz Angle 3 Pro Soundbar Speakers Together

    Connecting two OontZ Angle 3 Pro Soundbar speakers together for Left Channel - Right Channel You can also us the OontZ app to connect two OontZ Angle 3 Pro Soundbar speakers together - See page 20 for instructions on using the OontZ app –...
  • Page 17 3 seconds until the Source Button Light begins flashing with a Blue light. – On the OontZ Angle 3 Pro Soundbar (Master Speaker) press and release the Multi-Function Button . The Play/Pause Button Light – Use the buttons on the Host Speaker for volume, play/pause, track back, and track forward. These controls are disabled on the will turn solid Orange and the speaker will say “Surround Mode Transmit”.
  • Page 18 Changing to Dual Stereo from Left Channel - Right Channel Use Dual Stereo when placing the two speakers in different areas, and both speakers will play in full stereo. – To set both speakers for Dual Stereo they must first be connected together for Left Channel - Right Channel (see page 13). –...
  • Page 19 OontZ Dual Mode - Important Notes Turning the speakers off – Turning the Host Speaker off will turn both speakers off. – Turning the second speaker off first will only turn that speaker off and the Host Speaker will play as a single speaker.

  • Page 20: Surround Mode - Connect 2, 3, Or 4 Supported Oontz Speakers Together

    Surround Mode - Connecting 2, 3 or 4 Supported OontZ speakers to OontZ Angle 3 Pro Soundbar You can also us the OontZ app to connect the supported OontZ speakers together - See page 20 for instructions on using the OontZ app Note: The OontZ Angle 3 Pro Soundbar is compatible with the OontZ Angle 3 ULTRA (4th Gen) and OontZ Angle 3 Pro (2nd Gen) speakers.
  • Page 21 OontZ Angle 3 Pro Soundbar Speakers connected in Surround Mode OontZ Angle 3 Pro (2nd Gen) Guest Speaker(s) OontZ Angle 3 Pro Soundbar Host Speaker Light OFF Light OFF Lit Orange OontZ Angle 3 ULTRA (4th Gen) Guest Speaker(s) Lit Blue,...
  • Page 22 Note: To pair a Guest Speaker with a flashing Orange Light with another device, press and release the Multi-Function Button . The Source Button Light will begin flashing Blue and the OontZ Angle 3 Pro is ready to pair and connect with the device. Page 19...

  • Page 23: The Oontz App

    Audio Source - Change the audio source between Aux In, Optical In and Bluetooth sources. Surround Mode - Connect, Disconnect and manage 2, 3 or 4 OontZ Angle 3 ULTRA (4th Gen) or OontZ Angle 3 Pro (2nd Gen) Speakers.
  • Page 24 OontZ Angle 3 Pro Soundbar icon is Grey - Press the Grey speaker icon on the app to enable the OontZ app with the OontZ Angle 3 Pro Soundbar. - The OontZ app will be enabled with your OontZ Angle 3 Pro Soundbar in a few seconds - The Grey speaker icon will turn Blue and the Multi-Function Button Light on the OontZ Angle 3 Pro Soundbar will turn Blue.
  • Page 25 Using the OontZ app for EQ and Volume Control Select the Menu in the upper left hand corner of the app - Select ‘EQ’ from the menu to access the speaker Equalizer screen or ‘Volume Control’ from the menu to access the Volume Control screen.
  • Page 26 – Connect the speaker with your device. This speaker will serve as the Host Speaker. – Enable the OontZ app with the OontZ Angle 3 Pro Soundbar speaker. When the OontZ app is enabled the Multi-Function Button Light on the OontZ Angle 3 Pro Soundbar will be lit solid Blue.
  • Page 27 – The Play/Pause Button White Light on the second speaker will turn off and the speakers will be disconnected from each other. – To reconnect press ‘Connect’ with both OontZ Angle 3 Pro Soundbar speakers turn on. Playing the audio from a video in Dual Mode –...
  • Page 28 Using the OontZ app for Dual Mode Use Dual Mode when placing the two Use Left Channel - Right Channel for speakers in different areas, and both incredible left and right stereo seperation. speakers will play in full stereo. – With the speakers connected together for –...
  • Page 29 Using the OontZ app for Audio Source selection Select the Menu in the upper left hand corner of the app and select ‘Audio Source’ from the menu. Press “Bluetooth” to change the audio Press “Aux In” to change the audio source to Bluetooth.
  • Page 30 – Turn on the other supported OontZ speakers. These speakers will be the Guest Speakers . Note: Only OontZ Angle 3 Pro Soundbar, OontZ Angle 3 ULTRA (4th Gen) and OontZ Angle 3 Pro (2nd Gen) speakers are supported. Other OontZ speakers and previous generations of the OontZ Angle 3 ULTRA and OontZ Angle 3 Pro are NOT supported.
  • Page 31 Using the OontZ app for Surround Mode Select the Menu in the upper left hand corner of the app and select ‘Surround Mode’ from the menu. The ‘Host Speaker’ menu will be The Play/Pause Button Light on the Host displayed and the speaker connected to...
  • Page 32 Using the OontZ app for Surround Mode Disconnecting and reconnecting the supported OontZ speakers in Surround Mode To disconnect a Guest speaker in To disconnect all speakers in Surround Mode, press Surround Mode, press the ‘Guest the ‘Host Speaker’ Button.
  • Page 33 - Select the desired speaker from the available list of OontZ speakers - Speaker icon is Blue - the OontZ app is already enabled with this speaker - Speaker icon is Grey - press and the OontZ app will be enabled with this speaker.
  • Page 34 Press ‘Contact Us’ to display sure the iPhone or Smartphone is not interrupted by the customer support form. a phone call during the update of the OontZ Angle 3 Fill in the information in the Pro Soundbar. displayed form to email to our OontZ support team.

  • Page 35: Contacting Customer Support

    Customer Support If you have a question about your OontZ Angle 3 Pro Soundbar or experience an issue with the speaker, our Customer Support Team wants to assist you. For online troubleshooting tips please visit: TheOontZ.com/troubleshooting and select the OontZ Angle 3 Pro Soundbar For latest version of this manual please visit: TheOontZ.com/pages/manuals...

  • Page 36: Safety And Precautions

    Safety and Precautions When the OontZ Angle 3 Pro Soundbar speaker is plugged in to power, never use the speaker in the shower, bath, or near water, to prevent risk of electric shock. Read and follow all instructions – All operating and use instructions should be followed.
  • Page 37 Safety and Precautions (continued) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 38 Safety and Precautions (continued) Warning!Do not ingest battery, Chemical Burn Hazard. The remote control supplied with this product contains a coin / button cell battery. If the coin / button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children.
