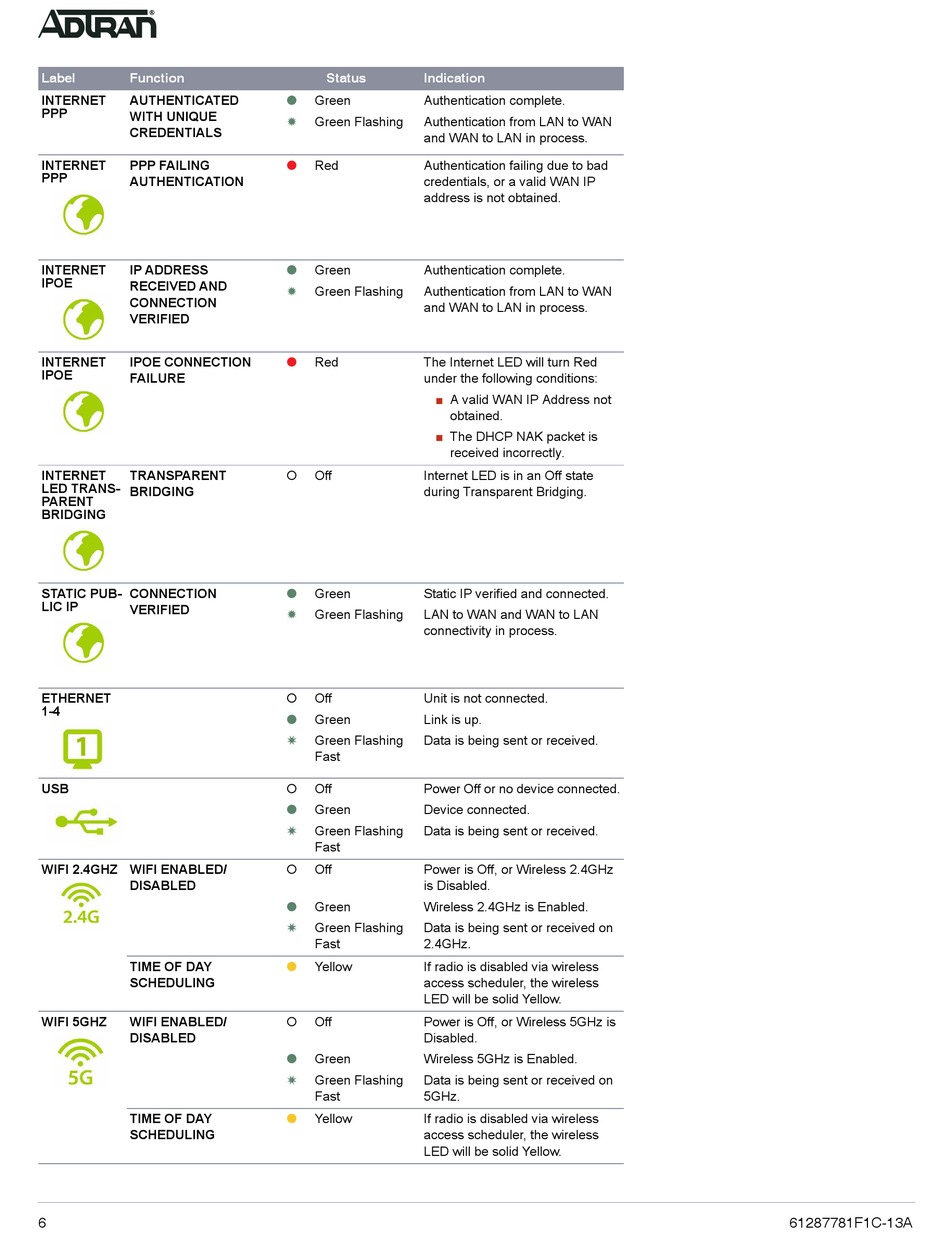

Label Function
INTERNET AUTHENTICATED
PPP
WITH UNIQUE
CREDENTIALS
INTERNET PPP FAILING
PPP
AUTHENTICATION
INTERNET IP ADDRESS
IPOE
RECEIVED AND
CONNECTION
VERIFIED
INTERNET IPOE CONNECTION
IPOE
FAILURE
INTERNET TRANSPARENT
LED TRANS-
BRIDGING
PARENT
BRIDGING
STATIC PUB- CONNECTION
LIC IP
VERIFIED
ETHERNET
1-4
USB
WIFI 2.4GHZ WIFI ENABLED/
DISABLED
TIME OF DAY
SCHEDULING
WIFI 5GHZ WIFI ENABLED/
DISABLED
TIME OF DAY
SCHEDULING
6
Status Indication
Green Authentication complete.

4
Green Flashing Authentication from LAN to WAN
and WAN to LAN in process.
 Red Authentication failing due to bad
credentials, or a valid WAN IP
address is not obtained.
Green Authentication complete.

4 Green Flashing Authentication from LAN to WAN
and WAN to LAN in process.
Red The Internet LED will turn Red

under the following conditions:
■
A valid WAN IP Address not
obtained.
■
The DHCP NAK packet is
received incorrectly.
 Off Internet LED is in an Off state
during Transparent Bridging.
Green Static IP verified and connected.

4 Green Flashing LAN to WAN and WAN to LAN
connectivity in process.
Off Unit is not connected.

Green Link is up.

2 Green Flashing Data is being sent or received.
Fast
Off Power Off or no device connected.

Green Device connected.

2 Green Flashing Data is being sent or received.
Fast
Off Power is Off, or Wireless 2.4GHz

is Disabled.
Green Wireless 2.4GHz is Enabled.

2 Green Flashing Data is being sent or received on
Fast 2.4GHz.
Yellow If radio is disabled via wireless

access scheduler, the wireless
LED will be solid Yellow.
Off Power is Off, or Wireless 5GHz is

Disabled.
Green Wireless 5GHz is Enabled.

2 Green Flashing Data is being sent or received on
Fast 5GHz.
Yellow If radio is disabled via wireless

access scheduler, the wireless
LED will be solid Yellow.
61287781F1C-13A
