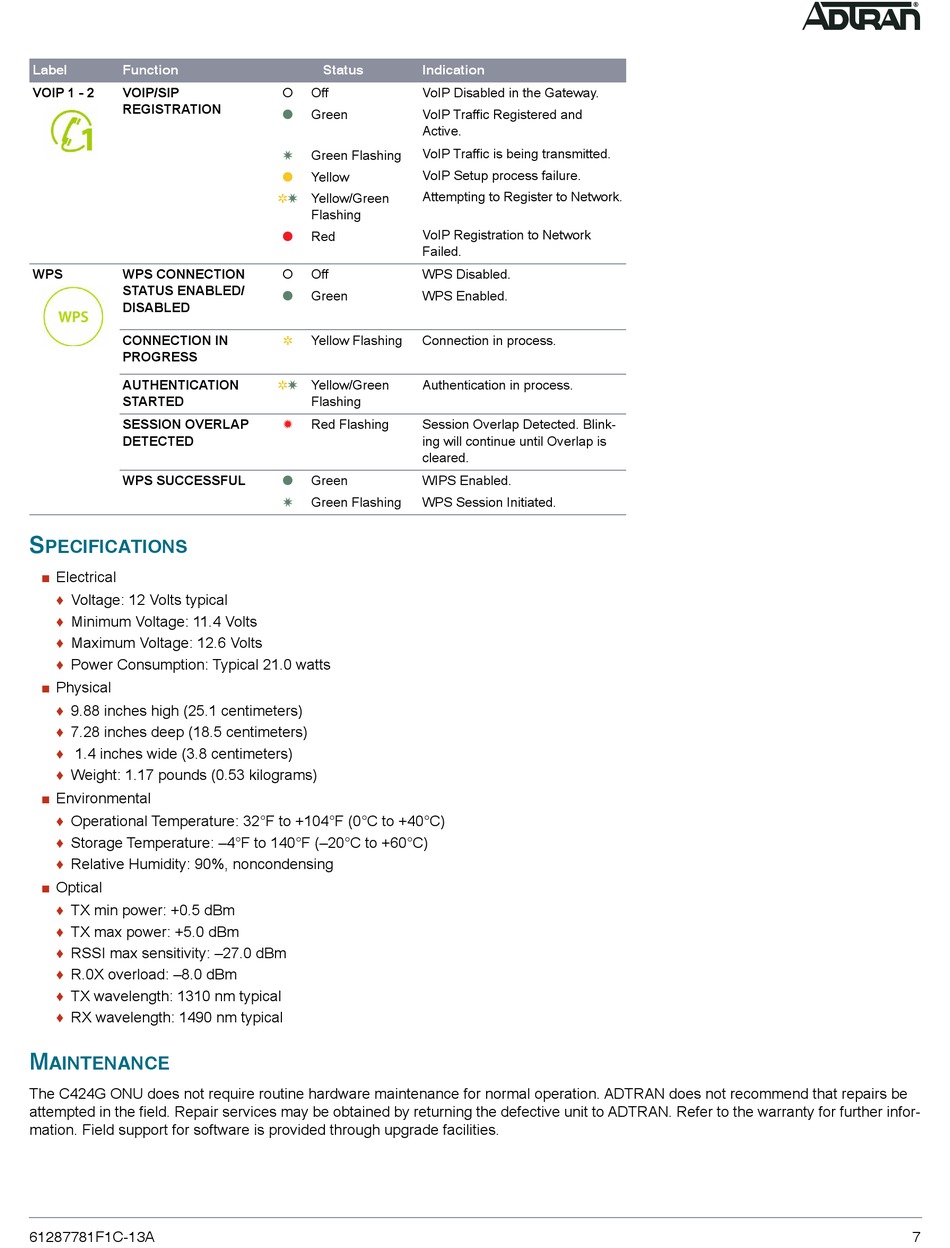

Specifications; Maintenance - ADTRAN CenturyLink C424G Quick Start Manual

Label Function
VOIP 1 - 2 VOIP/SIP
REGISTRATION
WPS WPS CONNECTION
STATUS ENABLED/
DISABLED
CONNECTION IN
PROGRESS
AUTHENTICATION
STARTED
SESSION OVERLAP
DETECTED
WPS SUCCESSFUL
S
PECIFICATIONS
■
Electrical
♦ Voltage: 12 Volts typical
♦ Minimum Voltage: 11.4 Volts
♦
Maximum Voltage: 12.6 Volts
♦ Power Consumption: Typical 21.0 watts
■ Physical
♦ 9.88 inches high (25.1 centimeters)
♦ 7.28 inches deep (18.5 centimeters)
♦ 1.4 inches wide (3.8 centimeters)
♦ Weight: 1.17 pounds (0.53 kilograms)
■ Environmental
♦ Operational Temperature: 32°F to +104°F (0°C to +40°C)
♦
Storage Temperature: –4°F to 140°F (–20°C to +60°C)
♦ Relative Humidity: 90%, noncondensing
■ Optical
♦ TX min power: +0.5 dBm
♦
TX max power: +5.0 dBm
♦ RSSI max sensitivity: –27.0 dBm
♦
R.0X overload: –8.0 dBm
♦ TX wavelength: 1310 nm typical
♦
RX wavelength: 1490 nm typical
M
AINTENANCE
The C424G ONU does not require routine hardware maintenance for normal operation. ADTRAN does not recommend that repairs be
attempted in the field. Repair services may be obtained by returning the defective unit to ADTRAN. Refer to the warranty for further infor-
mation. Field support for software is provided through upgrade facilities.
61287781F1C-13A
Status Indication
Off VoIP Disabled in the Gateway.

Green VoIP Traffic Registered and

Active.
VoIP Traffic is being transmitted.
2
Green Flashing
VoIP Setup process failure.
Yellow

Attempting to Register to Network.
-2
Yellow/Green
Flashing
VoIP Registration to Network
Red

Failed.
Off WPS Disabled.

Green WPS Enabled.

-
Yellow Flashing Connection in process.
-2
Yellow/Green Authentication in process.
Flashing
4 Red Flashing Session Overlap Detected. Blink-
ing will continue until Overlap is
cleared.
Green WIPS Enabled.

2
Green Flashing WPS Session Initiated.
7
