Version 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ANOLIS Eminere Side 1 and is the answer not in the manual?

Questions and answers

Related Manuals for Robe ANOLIS Eminere Side 1

Summary of Contents for Robe ANOLIS Eminere Side 1

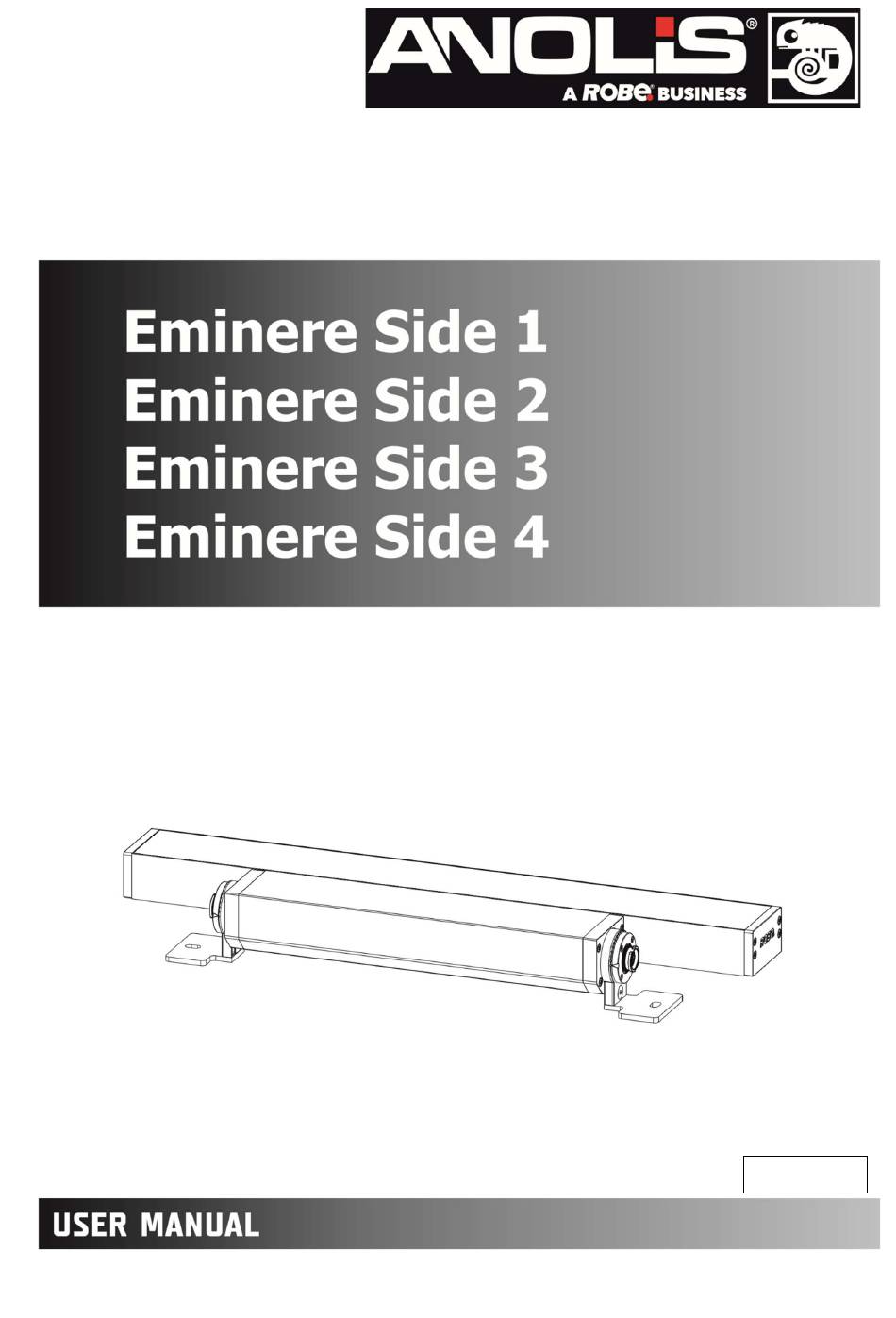

  • Page 1 Version 1.1...

  • Page 2: Table Of Contents

    Eminere Side Table of contents 1. Safety instructions ..............................3 2. Fixture exterior view ..............................4 3. Installation .................................. 5 3.1 Mounting the fixture ............................5 3.2 Connection to mains ............................. 5 3.3 The Booster box ..............................9 3.4 The Booster box installation ..........................12 4.

  • Page 3: Safety Instructions

    Eminere Side FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING YOUR Eminere Side ! Save it for future reference. This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure safe operation, it is absolutely necessary for the user to follow the safety instructions and warnings written in this manual.

  • Page 4: Fixture Exterior View

    Eminere Side The fixture becomes hot during operation. Allow the fixture to cool approximately 30 minutes prior to servicing or maintenance. Operate the fixture only after having familiarized yourself with its functions. Do not permit operation by persons not qualified to operate the fixture. Most damages are the result of unprofessional operation! Immunity of the equipment is designed for electromagnetic environments E1, E2, E3 according to the standard EN55103-2 ed.2 Electromagnetic compatibility.

  • Page 5: Installation

    Eminere Side 3. Installation 3.1 Mounting the fixture The Eminere Side can be arranged in any orientation on a flat, non-flammable surface by means of two mounting brackets (5), the LED module (2) can be tilted 135° to adjust desired beam position. Ensure that the structure to which you are attaching the unit is secure.
  • Page 6 Eminere Side They cannot stay disconnected outdoor. The output panel connector at last fixture in the Eminere Side chain has to always be covered with the water- tight cap to keep declared IP rating. The Eminere modules should be connected to the E-box which allows power supply of the Eminere modules and their control.
  • Page 7 Eminere Side E-box Pro E-box Lite Number of connected Emineres Side to one E-box output depends on a cable length, power voltage, type of and E-box.
  • Page 8 Eminere Side The tables below state max. number of Emineres connected to the one LED output of the E-box without theoretical Booster boxes. The following tables apply for the Standard mode of E-boxes EMINERE SIDE 1 Voltage Cable length * 120V 190V 230V...

  • Page 9: The Booster Box

    Eminere Side EMINERE SIDE 4 Voltage Cable length * 120V 190V 230V 277V 10 m 20 m 30 m 50 m 70 m 100 m 200 m * Cable length is a total cable length between E-box and last connected Eminere Side. Example: Total cable length=L1+L2+L3 Notice for the E-box Star: The tables above state max.
  • Page 10 Eminere Side 70 m 25,50,75,100,125,150,175 63,126,189 92,184 100 m 17,34,51,68,85,102,119, 44,88,132,176 64,128 93,186 136,153,170,187 200 m 9,18,27,36,45,54,60,72,81 22,44,66,88,110, 32,64,96,128, 47,94,141, 90,99,108,117,126,135,144 132,154,176 153,162,171,180,189, EMINERE Max. number of Emineres 2= 94 SIDE 2 Voltage Cable 120V 190V 230V 277V length 10 m 41,82 20 m 41,82...
  • Page 11 Eminere Side EMINERE Max. number of Emineres 4= 48 SIDE 4 Voltage Cable 120V 190V 230V 277V length 10 m 21,42 20 m 21,42 30 m 15,30,45 50 m 9,18,27,36,45 22,44 70 m 6,12,18,24,30,36,42 16,32 23,46 100 m 4,8,12,16,20,24,28,32,36, 11,22,33,44 16,32 23,46 40,44...

  • Page 12: The Booster Box Installation

    Eminere Side 3.4 The Booster box installation ALWAYS DISCONNECT THE EMINERES SIDE FROM MAINS BEFORE CONNECTING/DISCONNECTING THE BOOSTER BOX. The Booster box falls under protection class I. Therefore, every Booster box has to be connected to a mains socket outlet with a protective earthing connection. 1.Unscrew the four screws (1) from the cover (2) on the Booster box to get access to the terminal block (3) and two mounting holes of diameter of 4.6 mm (4).

  • Page 13: Technical Specifications

    Eminere Side 3. Screw the cover (2) back on the Booster box. 4. Technical specifications Power supply • Electronic auto-ranging • Input voltage: 120 - 277V AC, 50-60 Hz • Power consumption: Eminere Side 1: 25W Eminere Side 2: 50W Eminere Side 3: 70W Eminere Side 4: 90W •...
  • Page 14 Eminere Side Control: DMX, Art-Net, sACN , W-DMX control, RDM Pixel control (1px= 1ft) 120-277 V Input Connection via terminal blocks, inlets via grommet IP67 • E-box Lite 1 output 1 Main power Input Control: DMX, W-DMX control, RDM Pixel control (1px= 1ft) 120-277 V Input Connection via screw terminal blocks, inlets via grommet IP67...
  • Page 15 Eminere Side Weight •Eminere Side 1: 2.5 kg (5.5 lbs) •Eminere Side 2: 4.2 kg (9.3 lbs) •Eminere Side 3: 5.9 kg (13 lbs) •Eminere Side 4: 8.7 kg (19.1 lbs) Dimensions (All dimensions in mm [inch]) • Eminere Side 1 •...
  • Page 16 Eminere Side • Eminere Side 3 • Eminere Side 4...
  • Page 17 Eminere Side • Booster box Included items • 1 x Eminere Side • 1 x User manual Optional accessories Leader cables: P/N 13053005 Cable CE Leader FF 2m ABB1-DFQ06 P/N 13053006 Cable CE Leader FF 5m ABB1-DFQ06 P/N 13053007 Cable CE Leader FF 10m ABB1-DFQ06 P/N 13053008 Cable CE Leader FF 25m ABB1-DFQ06 P/N 13053009 Cable CE Leader FF 50m ABB1-DFQ06 P/N 13053010 Cable US Leader FF 2m ABB1-DFQ06...
  • Page 18 Eminere Side P/N 13053016 Cable CE Leader MM 5m ABB1-DMQ06 P/N 13053017 Cable CE Leader MM 10m ABB1-DMQ06 P/N 13053018 Cable CE Leader MM 25m ABB1-DMQ06 P/N 13053019 Cable CE Leader MM 50m ABB1-DMQ06 P/N 13053020 Cable US Leader MM 2m ABB1-DMQ06 P/N 13053021 Cable US Leader MM 5m ABB1-DMQ06 P/N 13053022 Cable US Leader MM 10m ABB1-DMQ06 P/N 13053023 Cable US Leader MM 25m ABB1-DMQ06...

  • Page 19: Cleaning And Maintenance

    Description of changes the manual 10/07/2020 Voltage range changed Specifications are subject to change without notice. June 5, 2020 Copyright © 2019-2020 Robe Lighting - All rights reserved Made in CZECH REPUBLIC by ROBE LIGHTING s.r.o. Palackeho 416/20 CZ 75701 Valasske Mezirici...

This manual is also suitable for:

Anolis eminere side 2Anolis eminere side 3Anolis eminere side 4
