COAXIAL CABLE PREPARATION
VXC Doppler sensor cable can be cut and spliced up to a maximum length of 500 ft (152 m). Cable ends
must be prepared as illustrated below.

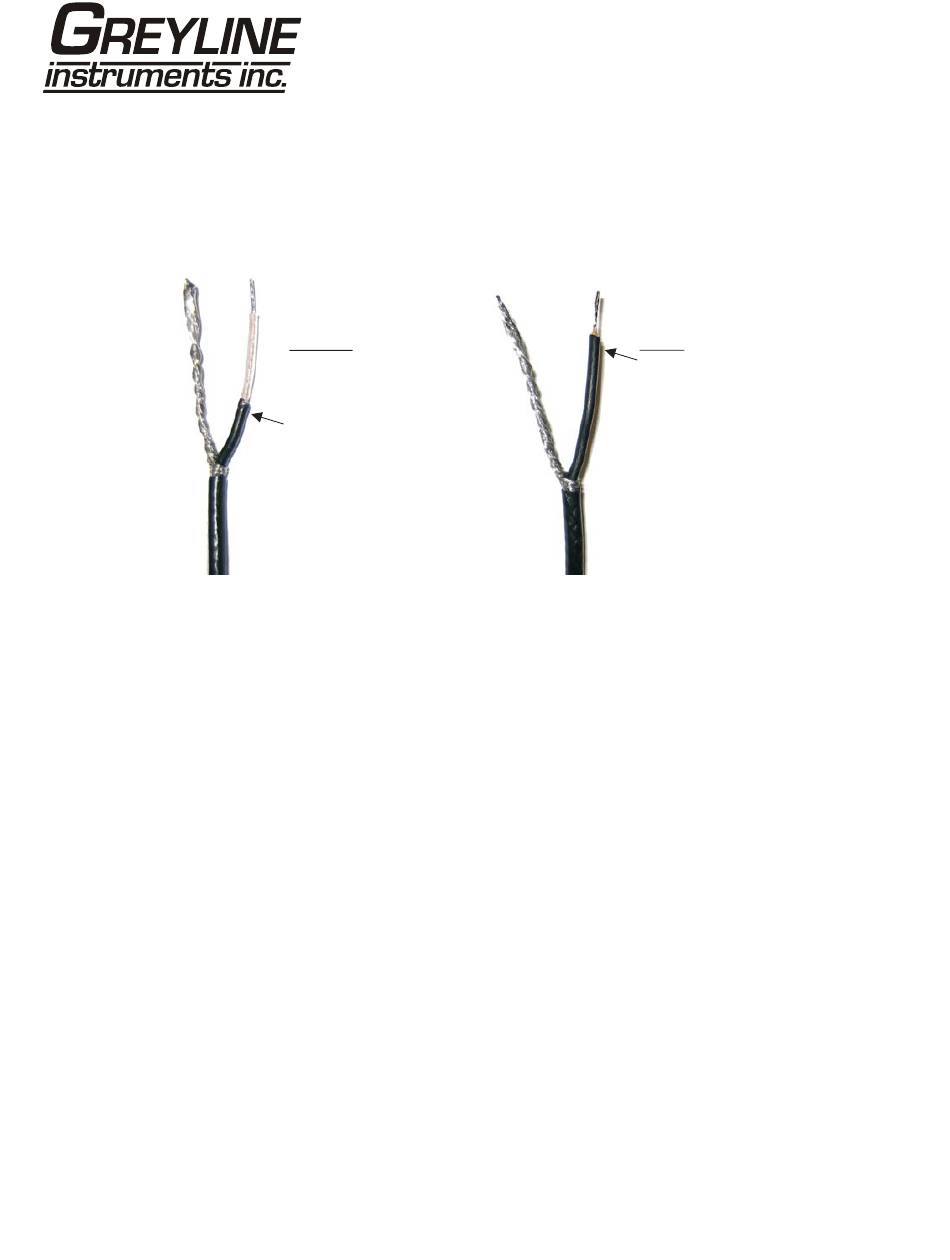

GOOD
BLACK
(CONDUCTIVE)
SLEEVE
HAS BEEN
REMOVED
Page 32
Multi-Sensor Area Velocity Flow Meter
BAD
BLACK
(CONDUCTIVE)
SLEEVE
HAS NOT BEEN
REMOVED
