Transient Modules 2M Diy Building Manual page 4

DIY building manual - Version 1.3

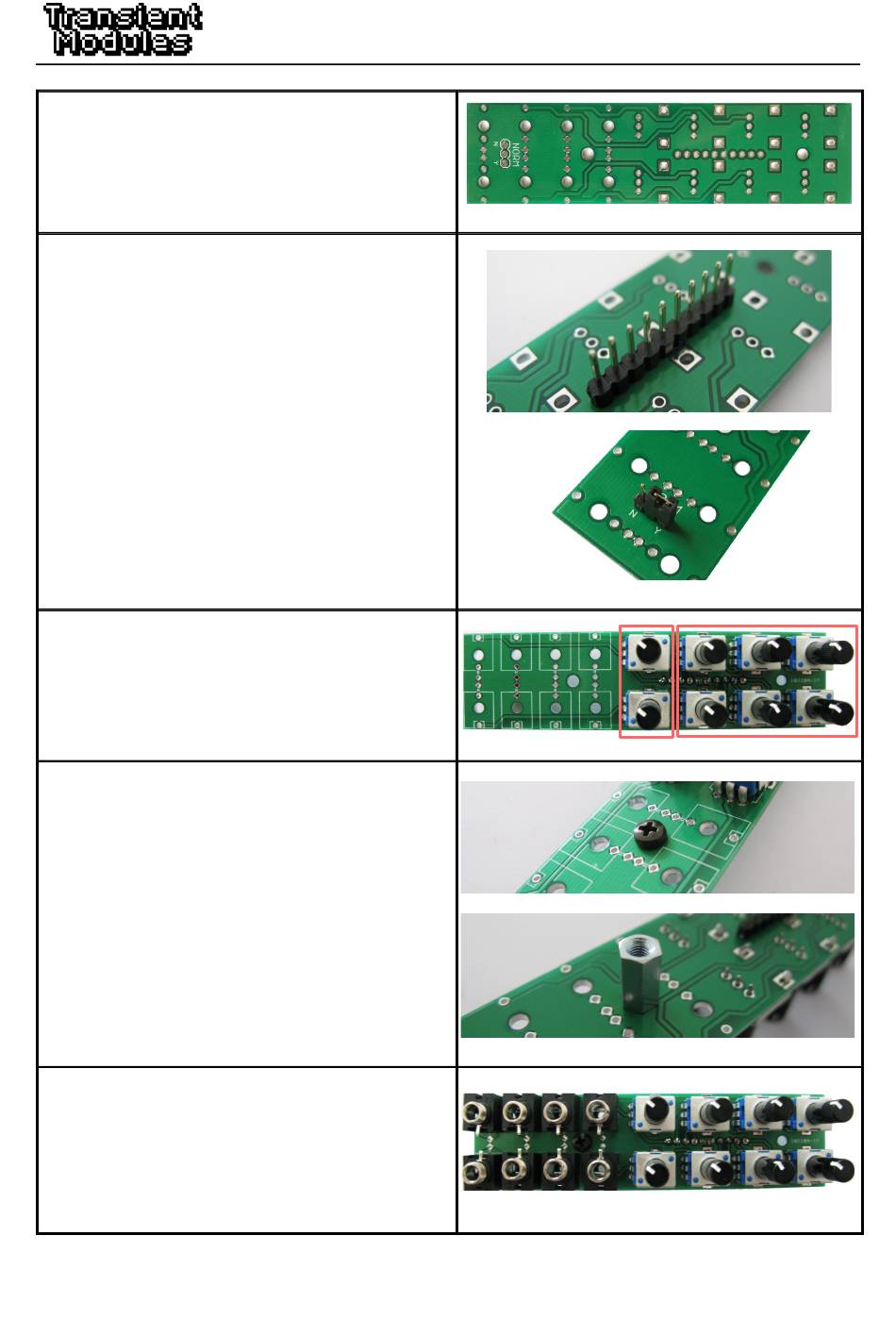

13. Front PCB now. Empty the
potentiometers, jacks and nuts bag into a
bowl or container.
14. Solder the 10 pin male header and the 3
pin male header ensuring they're both 90º
to the PCB.
Place the jumper to 'Y' if you want to
normalize the output of the mixer on the left
to the inputs of the mixer on the right when
no cable is connected to the output.
NOTE! These parts are placed at the bottom
of the PCB and soldered from the top, as
shown.
15. Next, place the two 50KB (labelled B503)
and the six 50KA potentiometers (labelled
A503) into their position but DO NOT
SOLDER yet. Make sure they're 90º to the
PCB and fully inserted.
16. Screw the 11mm spacer (the one which
is slightly bigger) using one M3 black screw
as shown.
17. Place the eight jacks into their position
but DO NOT SOLDER yet.
