Transient Modules 2M Diy Building Manual page 2

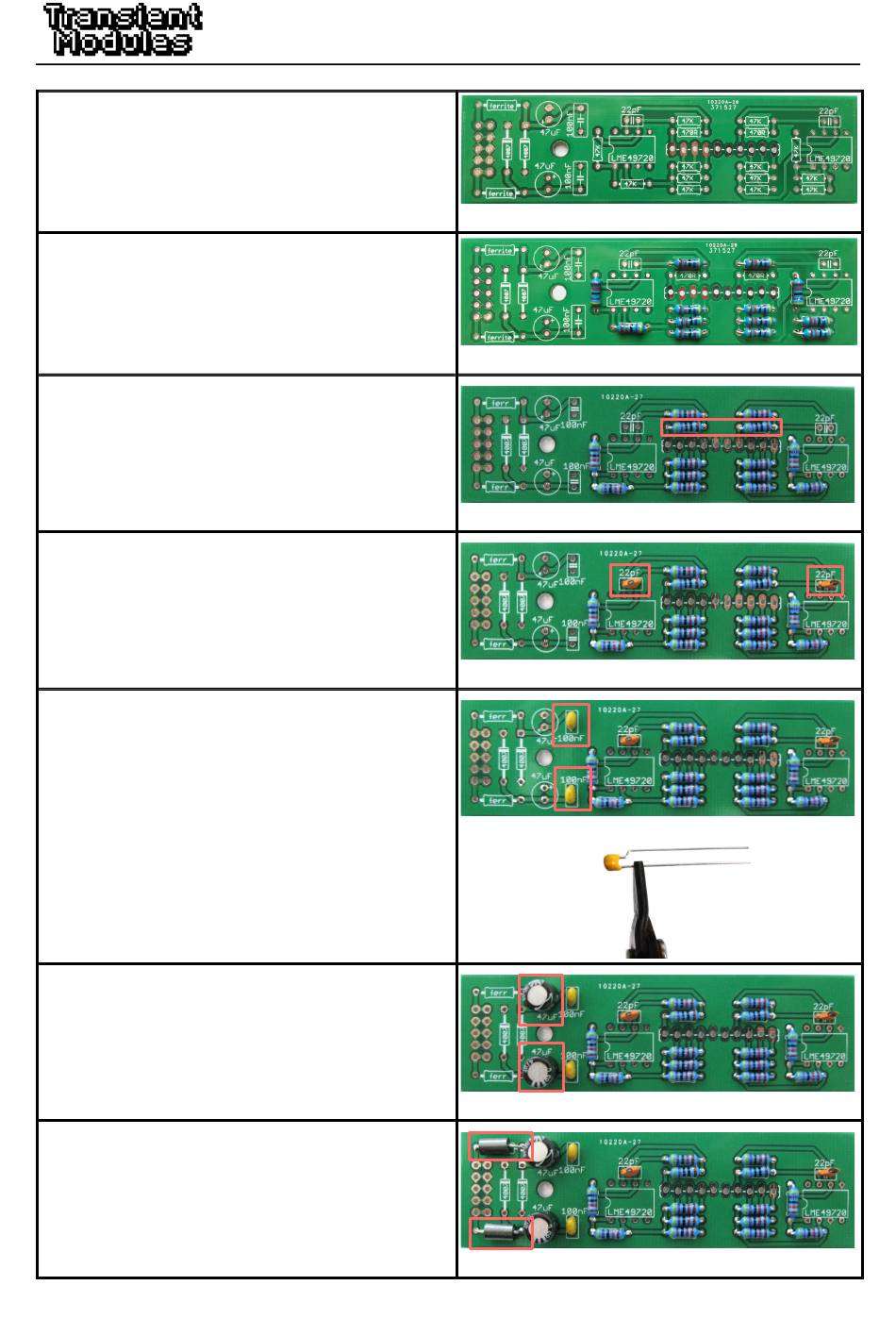

1. Let's begin with the back PCB. Start by
emptying the bag into a bowl or container.
This makes it much easier to pick parts as
you need them and you're a lot less likely to
lose anything.
2. Solder the resistors labelled as 47K, there
are 13 of them.
Colour code: yellow, violet, black, red,
brown.
3. Solder the two 470R resistors.
Colour code: yellow, violet, black, black,
brown.
4. Solder the two 22pF capacitors (labelled
221).
5. Solder the two 100nF capacitors (labelled
104).
NOTE!
You will need to bend the legs on
the capacitors in order to ft correctly the
holes in the PCB.
6. Solder the two 47uF electrolytic capacitors
labelled 47uF.
NOTE! Orientation is vital. The longer lead
on the part should be positioned in the pad
marked with the plus/positive symbol.
7. Solder the two ferrites.
DIY building manual - Version 1.3
