Memory positions
Setting memory positions

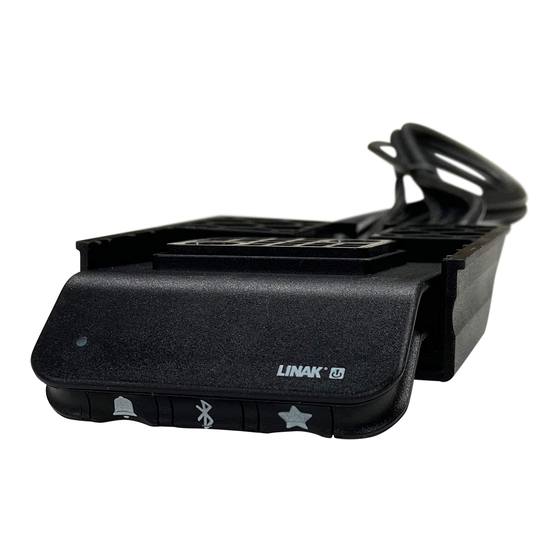

The DPG1M paddle has a "store memory" button
to the right marked with a star.
Adjust the desk to a preferred position and press
the star-button for 2 seconds. The LED will blink
white twice to indicate that saving the position is
in progress. When the LED becomes static white,
the position is saved.
If the user adjusts the desk to another height and
saves the position, it will overwrite the memory
position closest to the current one.
Driving to memory positions
After storing all the memory positions, they can
be reached simply by tilting the paddle.
Double tab on the paddle to let the desk adjust
automatically to the first position in the direction
of the double tap. Simply tab the paddle again
to stop the driving of the desk.
Erasing memory positions
Pressing the star-button for 8 seconds will erase
all saved memory positions. The LED will blink
red to indicate when the action is completed.
Setting memory positions
Driving to memory positions
Erasing memory positions
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Linak DPG1M
Summary of Contents for Linak DPG1M
- Page 1 Memory positions Setting memory positions The DPG1M paddle has a “store memory” button Setting memory positions to the right marked with a star. Adjust the desk to a preferred position and press the star-button for 2 seconds. The LED will blink white twice to indicate that saving the position is in progress.
- Page 2 Connecting Bluetooth® Reminders Setting the reminder interval The DPG1M paddle has a “Reminder” button to the left marked with a bell. Pressing this button will adjust the interval of how often to get reminders to change position. The LED will light up in white with 3 different intensities which each represents an interval.
