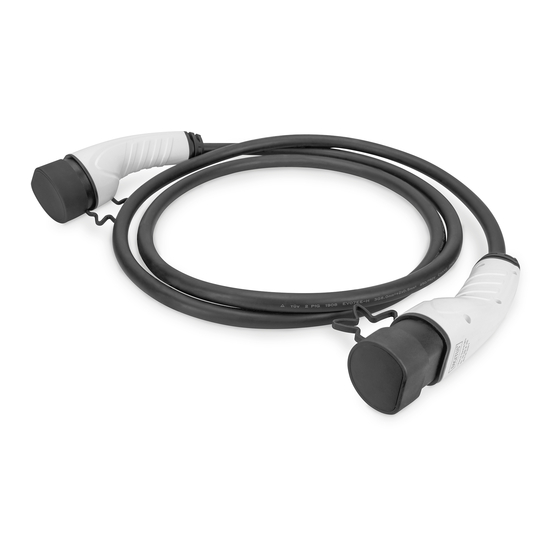

E-Mobility – Charging cable
DK-1P32-050/ DK-1P32-075/ DK-1P32-100/
DK-1P32-S-050/ DK-1P32-S-075/ DK-1P32-S-100/
DK-3P16-050/ DK-3P16-075/ DK-3P16-100/
DK-3P16-S-050/ DK-3P16-S-075/ DK-3P16-S-100/
DK-3P32-050/ DK-3P32-075/ DK-3P32-100/
DK-3P32-S-050/ DK-3P32-S-075/ DK-3P32-S-100 – Rev. 1.0
type 2 to type 2
Quick Instalation Guide
Advertisement
Related Manuals for Digitus DK-1P32-050
Summary of Contents for Digitus DK-1P32-050
- Page 1 E-Mobility – Charging cable type 2 to type 2 Quick Instalation Guide DK-1P32-050/ DK-1P32-075/ DK-1P32-100/ DK-1P32-S-050/ DK-1P32-S-075/ DK-1P32-S-100/ DK-3P16-050/ DK-3P16-075/ DK-3P16-100/ DK-3P16-S-050/ DK-3P16-S-075/ DK-3P16-S-100/ DK-3P32-050/ DK-3P32-075/ DK-3P32-100/ DK-3P32-S-050/ DK-3P32-S-075/ DK-3P32-S-100 – Rev. 1.0...
- Page 2 Please read this manual carefully before installation and use, otherwise, it may interfere with the normal use of the equipment and even risk causing personal injury. Safety and Points for Attention 1.1. Installation & Maintenance Before installation, please visually inspect the ...
- Page 3 Please do not dismantle the protective cap. To protect the charging connector from moisture and dirt, after every use, put the protective caps back on. Please do not withdraw the connector and plug out of EV inlet and socket while under load. Additional adaptors and conversion adapters are not ...
- Page 4 Please do not attempt to disassemble, repair, or modify the charging cable by yourself. If there is a need for maintenance or modification, please contact the manufacturer. Improper operation may cause damage to the equipment. Do not put inflammable, explosive or combustible ...
-
Page 5: Package Content
In case of rain or thunder, please charge with care. The charging cable is only for EV charging application. Please do not submerge the charging cable in water. 2. Features Charging plug and connector meet IEC 62196-2 •... - Page 6 4. Technische Specification Type TPU jacket Length Available with 3m, 5m, 7.5m, 10m Cable Cable 5G2.5mm² (16A) / 5G6mm² (32A) Color Black Design Standard Plug EN 62196-2 (Type 2) Rated voltage 240/415Vac Rated power 7.4kW/11kW / 22kW Electric spec Rated current 16A / 32A No.
-
Page 7: Installation
5. Installation Please note that the Charging cable has 2x ends of plugs. The male plug is used towards the Charging Station side while the female plug is connected towards the Electric Vehicle side. Male plug Female plug... - Page 8 Model Jacket Description Rating Cable Spec Number Type2 to Type2 1-Phase/ 3×6mm DK-1P32-XXX EV Charging 240V/32A/ 1x0.75mm Cable 7,4kW (Straight) Type2 to Type2 3-Phase/ 5×2.5mm DK-3P16-XXX EV Charging 415V/16A/ 1x0.75mm Cable 11kW (Straight) Type2 to Type2 Phase/415 5×6mm DK-3P32-XXX EV Charging V/32A/22k 1x0.75mm Cable...
- Page 9 Type2 to Type2 3-Phase/ 5×2.5mm DK-3P16-S-XXX EV Charging 415V/16A/ 2x0.5mm Cable 11kW (Spiral) Type2 to Type2 3-Phase/ 5×6mm DK-3P32-S-XXX EV Charging 415V/32A/ 2x0.5mm Cable 22kW (Spiral) Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.
