- Page 1 SM -12800U POWERED MIXER WITH USB/SD/MP3 PLAYER INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use. -

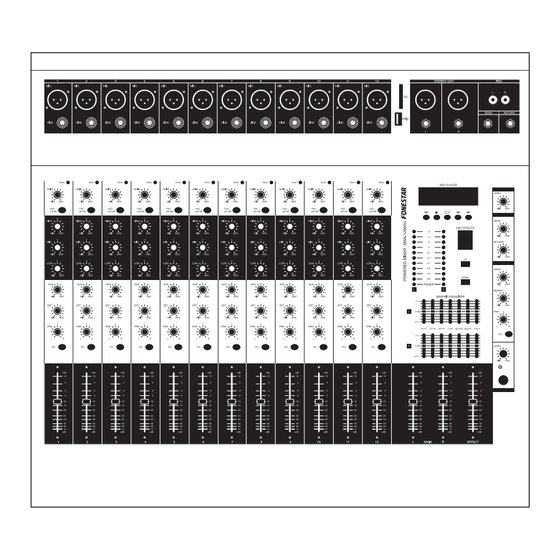

Page 4: Controls And Functions Front Panel
DESCRIPTION - The model SMA-12800U is a professional 12-channel powered mixer, 350 + 350 W at 4 Ω, 250 + 250 W at 8 Ω, specially suitable for live applications, music group sound systems, etc. They can be used in a wide variety of applications thanks to their flexibility. - Page 5 STEREO OUT 12.- SD: SD memory card connection port. 13.- USB: USB storage device connection port. SEND RETURN 14.- STEREO OUT: unbalanced line level outputs of the main mix bus MAIN, 2 x XLR connectors and 2 x 6.3 mm jacks.
-
Page 6: Rear Panel
34.- MP3 LEVEL: USB/SD/MP3 player general volume control that is sent to the final mix bus MAIN L/R. REAR PANEL POWER PHANTOM 48 V SMA-12800U SPEAKERS 12 CHANNEL POWERED MIXER 350 W + 350 W MAX, 4Ω ~ 115 V AC, 50/60 Hz FUSE: 10 A... - Page 7 REC output can be connected to a line level input for recording applications. - Switch on the devices in this order: firstly the periphery devices, followed by the powered mixer SMA-12800U and finally the external amplifier. - Adjust the volume and equalization using the knobs and sliding controls for each channel.
-
Page 8: Block Diagram
BLOCK DIAGRAM - 8 -... -
Page 9: Technical Specifications
TECHNICAL SPECIFICATIONS SMA-12800U CHARACTERISTICS 12-channel professional powered mixer. USB/SD/MP3 player. 16 digital effects processor. 7-band graphic equalizer. POWER 350 + 350 W maximum at 4 Ω 250 + 250 W maximum at 8 Ω USB PLAYER Plays MP3 files USB port for USB drive connection... -
Page 10: Warranty
This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los... - Page 11 - 11 -...
- Page 12 www.fonestar.com...
