  • Page 1 W -40 WALL MOUNT MIXER WITH USB/SD/MP3 INSTRUCTION MANUAL...
  • Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
  • Page 3: Exemption Of Liability

    The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use.
  • Page 4: Controls And Functions Front Panel

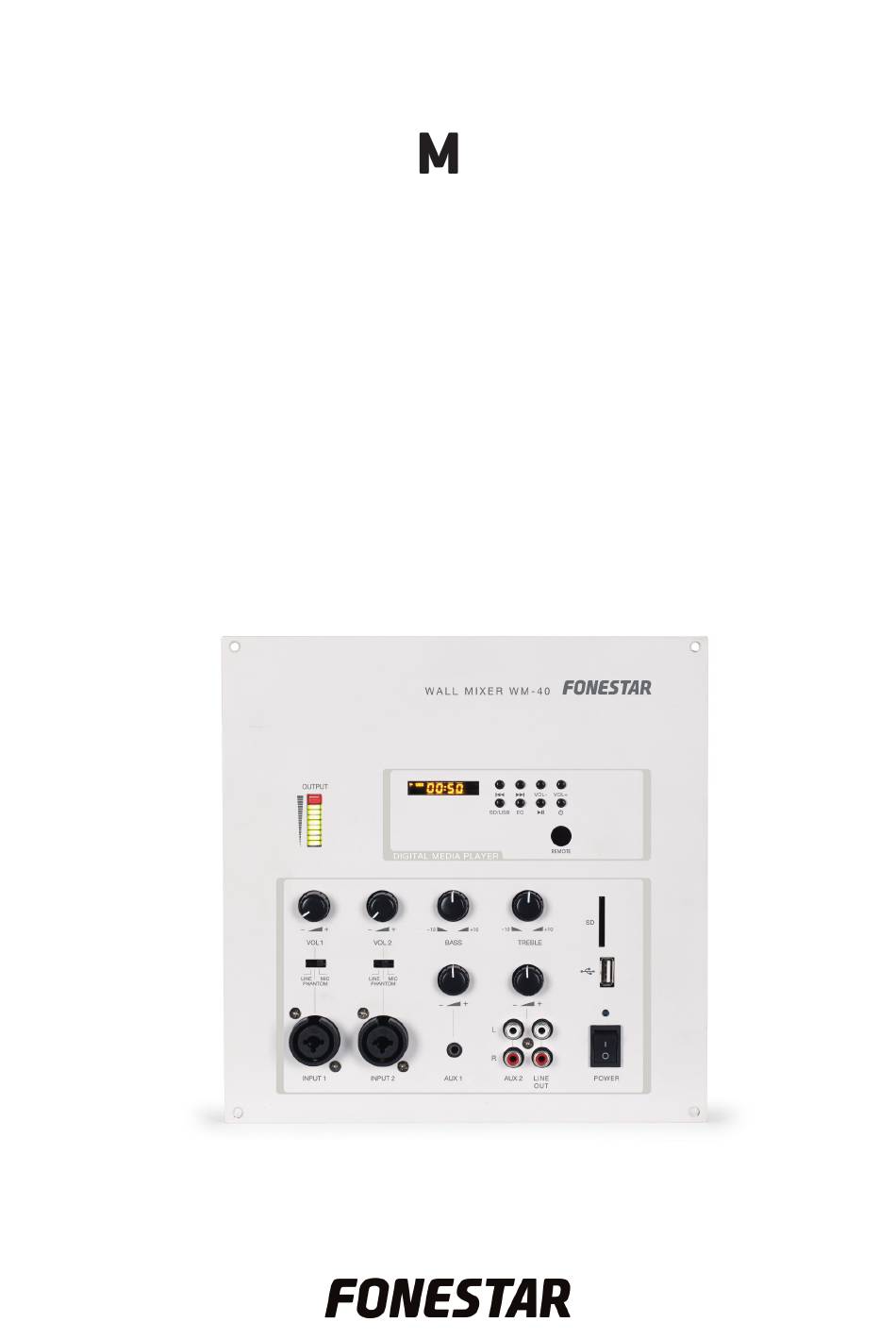

    DESCRIPTION - Wall mount mixer for surface or flush mount installation. - Surface box to facilitate installation and wiring. - Switched power supply source. - USB/SD/MP3 player. - Remote control for MP3 player. CONTROLS AND FUNCTIONS FRONT PANEL 1.- OUTPUT: LED indicators of output signal level. It regulates the individual input volume controls so that the level does not exceed the green LED indicators.
  • Page 5 6.- EQ: equalization control for the USB/SD/MP3 player audio signal. Press this button repeatedly if you wish to choose between the different existing equalizations. 7.- 12: a short press of this button starts and pauses USB/SD/MP3 playback. A long press allows selection among the different playback modes: repeat all tracks, repeat folders or random playback.
  • Page 6: Rear Panel

    REAR PANEL 1.- MASTER (BAL): balanced stereo line level output, 2 x XLR connectors. 2.- MASTER (UNBAL): unbalanced mono line level output, 2 x RCA connectors. 3.- Output level selector for 100 mV, 300 mV or 1 V. 4.- Output channel operating selector: mono or stereo. 5.- Socket for power supply cable connection.
  • Page 7: Connection And Operating

    CONNECTION AND OPERATING - Make the connections with the mixer and all the components of the audio system switched off and disconnected from the mains. - Connect the required audio equipment or microphones to the corresponding inputs. If you wish, connect the USB storage device or SD memory card to their corresponding inputs.
  • Page 8: Block Diagram

    BLOCK DIAGRAM - 8 -...
  • Page 9: Technical Specifications

    TECHNICAL SPECIFICATIONS WM-40 CHARACTERISTICS Wall mount mixer for surface or flush mount installation. Surface box to facilitate installation and wiring. Switched power supply source. USB/SD/MP3 player. Remote control for MP3 player. RESPONSE Microphones: 80-15,000 Hz Aux: 45-18,000 Hz DISTORTION Harmonic: < 1% at 1 kHz INPUTS 2 balanced mic./line, combo (XLR and 6.3 mm jack), 600 Ω...
  • Page 10: Warranty

    2 months after being conscious of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it. To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no corrections or crossing out.
  • Page 11 - 11 -...
