Federal Signal Corporation Split Vision SLR Series Manual

2562677 A3 0620

Safety Message to Installers of Warning Light Equipment

People's lives depend on your proper installation and servicing of Federal Signal products. It is important
to read and follow all instructions shipped with this product and the original product. Listed below are
some other important safety instructions and precautions you should follow.
• To properly install the lighting system, you must have a good understanding of automotive systems,
along with proficiency in the installation and use of safety warning equipment.
• Do not install equipment or route wiring in the deployment path of an airbag.
• If a vehicle seat is temporarily removed, verify with the vehicle manufacturer if the seat needs to be
recalibrated for proper airbag deployment.
• Frequently inspect the light system to ensure that it is operating properly is securely attached to the
vehicle.
• When drilling into a vehicle structure, ensure that both sides of the surface are clear of anything that
could be damaged.
• Refer to the instructions packed with related products for additional precautions and information.
• File these instructions in a safe place and refer to them when maintaining and/or reinstalling the
product.
• Do not stare directly into the lights at a close range, or permanent damage to your eyesight may
occur.
Failure to follow all safety precautions and instructions may result in property damage, serious injury, or
death.

Product Overview

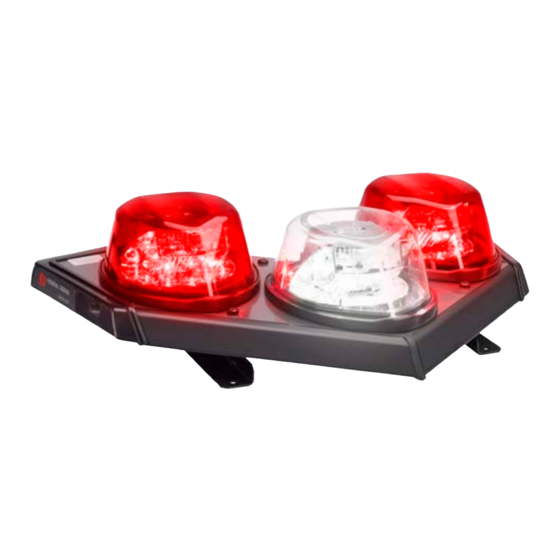

This publication has instructions for permanently mounting the Split Vision SLR to a vehicle. One kit is
supplied with VSLR3, and two kits with VSLR6 and VSLR8 models. For electrical installation instructions,
refer to the installation and maintenance instructions packed with the light bar.

Unpacking the Kit

After unpacking the kit, inspect it for damage that may have occurred in transit. If it has been damaged,
do not attempt to install or operate it. File a claim immediately with the carrier, stating the extent of the
damage. Carefully check all envelopes, shipping labels, and tags before removing or destroying them.
Ensure that the parts in the Kit Contents List are included in the package. If you are missing any parts,
contact Customer Support at 1-800-264-3578, 7 a.m. to 5 p.m., Monday through Friday (CT).
Permanent Mounting Kit for the
Split Vision SLR
