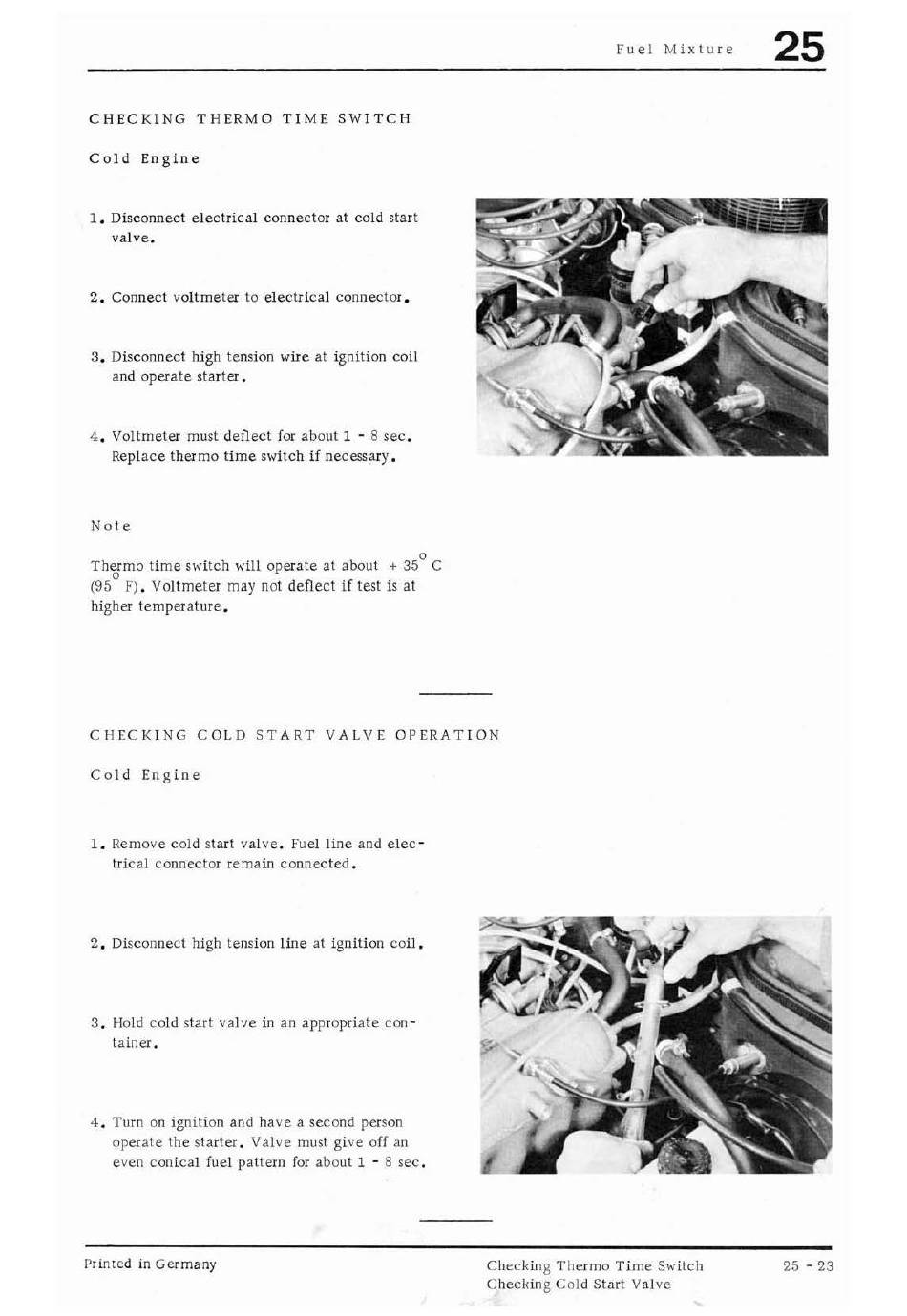

CHECKING THERMO TIME
SWITCH
Cold
Engine
1
.
Disconnect electrical
connector
at cold start
valve.
2
.
Connect
voltmeter
to electrical connector
.
3
.
Disconnect high tension wire at ignition coil
and
operate
starter
.
4
.
Voltmeter must deflect for about 1
-
8
sec.
Replace thermo time switch
if
necessary.
Note
0
Thermo time
switch will operate
at about
+
35 C
0
(95
F)
.
Voltmeter may not
deflect
if
test
is
at
higher
temperature.
Fuel Mixture
CHECKING COLD START VALVE
OPERATION
Cold Engine
1
.
Remove
cold
start
valve.
Fuel
line
and elec
-
trical
connector
remain connected.
2
.
Disconnect
high tension line
at
ignition coil.
3
.
Hold cold start valve
in an appropriate
con
-
tainer
.
4
.
Turn on
ignition and
have a second person
operate the starter
.
Valve must give off an
even conical
fuel
pattern for about 1
-
8
sec
.
Printed
in Germany
Checking
Thermo Time Switch
Checking Cold Start Valve
25
25
-
23
