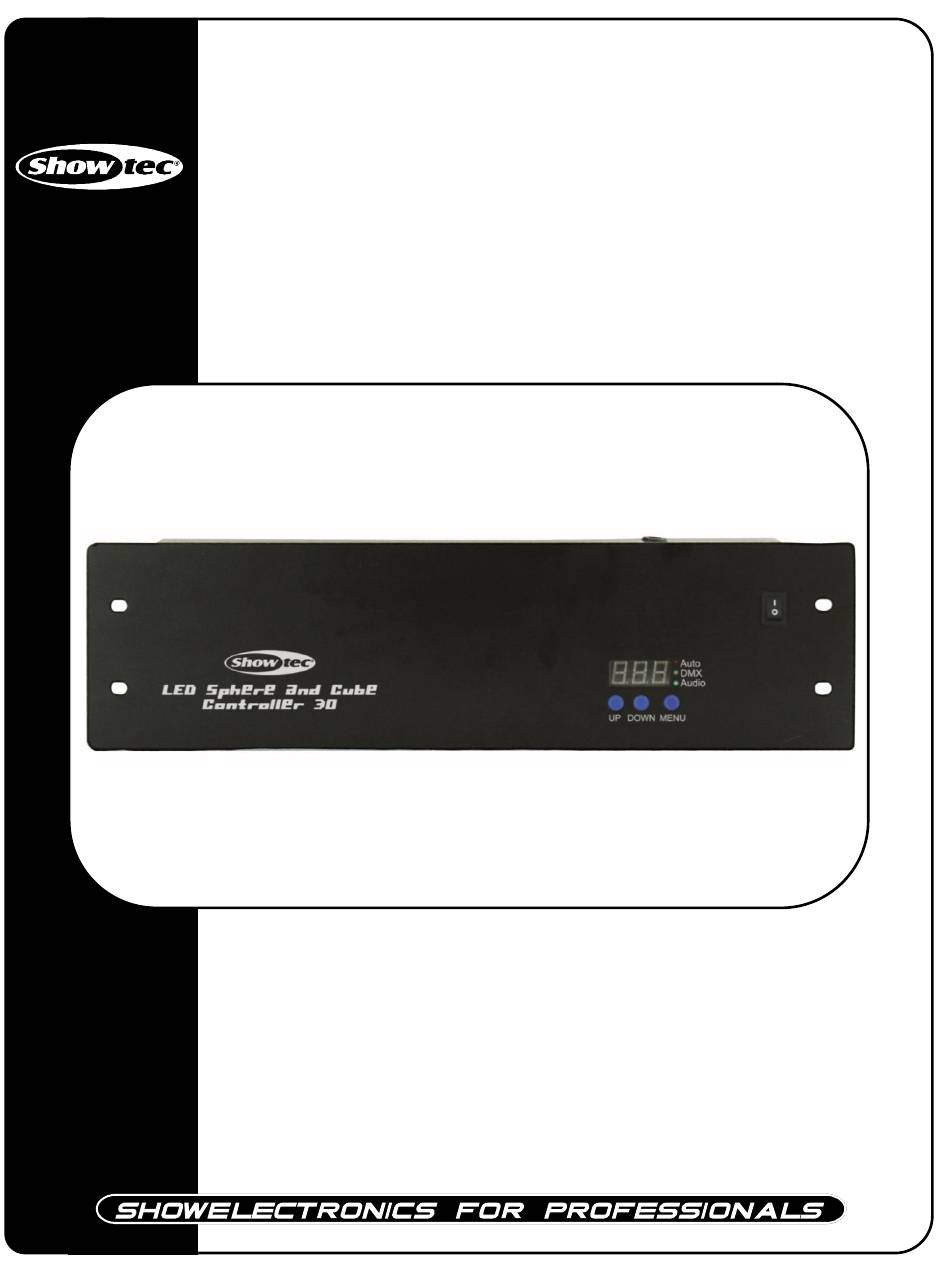

- Page 1 LED Spere & Cube Controller 30 ORDERCODE 41140...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Showtec Showtec 19“ LED Sphere & Cube Controller 30 Product Guide ™ Warning..…...................……………………………………………………….. Safety-instructions………………………………………………………………………………………………………… Operating Determinations……………………………………………………………………………………………… Rigging……………………………………………………………………………………………………………………... Description..…................……….……………………………………………… Features and Overview ………………………………...….……………….………….……….……….…………….. Backside…………………………………………………...…...….……………….…………………...…………………. Installation................…...………………………………………….………..…. Set Up and Operation..............……..……………………………………………… Menu Setting…..…..………………………………………………………………………..….……………………..…… Stand-alone………..………………………………………………………………………..….……………………..…… DMX-controlled………………………………………………………………………..….………….………………….… Maintenance...................………..………….…….………………………….. Troubleshooting................………………….………………….………………... Product Specifications..............……………….…….………………………………... -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 6: Description
Description of the device Features The 19” LED Sphere & Cube Controller 30 is designed for the more demanding user: • 4/48 DMX Channels • Controllable by DMX or Stand-alone controller. • 12 Outputs for LED Sphere 30 or LED Cube 30 •... -
Page 7: Installation
Installation Remove all packing materials from the LED Sphere & Cube Controller 30. Check that all foam and plastic padding is removed. Connect all cables. Note: It’s necessary to insert a XLR termination plug (with 120 Ohm) in the last fixture in order to ensure proper transmission on the DMX data link. -
Page 8: Stand-Alone
You can operate this device as: 1. Stand-alone unit 2. DMX-controllable Stand-alone 1. Turn the power switch on. The device will start. If you want to use the COL menu, be sure to set CHS to 0 and SPD to 1 If you want to use the CHS and SPD menu, be sure to set COL to 0. - Page 9 CHASE 4: L 255 COLOUR STEP All lights operate synchronously with a fade effect. CHASE 5: BLOCK1 BLOCK2 BLOCK3 L 255 R+B+G G+R G+R+B B+G B+G+R 0 STEP1 STEP4 STEP7 STEP2 STEP5 STEP8 STEP3 STEP6 STEP9 Divide the 12 steps into 4 parts (BLOCK1、BLOCK2、BLOCK3); there is no fade effect. CHASE 6: L 255 COLOUR...
- Page 10 CHASE 8: WHITE COLOUR BLOCKS With fade effect. CHASE 9: COLOUR STEP All lights operate synchronously with a 7 color fade effect. CHASE 10: COLOUR STEP CHASE 11: COLOUR STEP...
- Page 11 CHASE 12: COLOUR STEP All lights operate synchronously with a fade effect. CHASE 13: COLOUR STEP All lights operate synchronously with a fade effect. CHASE14: COLOUR explanation all BLOCK are synchronization without fade effect and keep the COLOUR in highest brightness. CHASE15: Auto-run all chases.
-
Page 12: Dmx-Controlled
DMX Controlled 1. Turn the power switch on. If the DMX cable has been plugged in, the LED next to the display will blink. 2. Now your unit is DMX-Controlled. 3. In menu CE you can choose 2 different DMX modes, receiving the channel 4 or channel 48. DMX Protocol - 4 Channel Mode Channel 1 –... -
Page 13: Maintenance
2. Check power from the wall, all cables, the fuse, etc. 3. If all of the above appears to be O.K., plug the unit in again. 4. If nothing happens after 30 seconds, unplug the device. 5. Return the device to your Showtec dealer. -
Page 14: Product Specifications
Product Specification Model: Showtec 19” LED Sphere & Cube Controller 30 (41040) Voltage : AC 230V-50Hz (CE) Power Consumption: 150W Dimensions : 482,6 (19”) x 95 x 133,5 mm (3HE) (LxWxH) Weight : 3,76 kg Model: Showtec LED Sphere 30 (41120)
