Connect the wires as illustrated in the diagrams below.
Be sure to connect the wires correctly. If the wires are incorrectly connected, the motor may not turn or
other problems could occur.
• Connecting and wiring diagrams for the USA, Canada, and Mexico (120 V)
5±1
• Connecting and wiring diagrams for the UK (110 V)
Ferrite core
5±1
Noise suppressor
• Connecting and wiring diagrams for New Zealand, Australia, and Europe (230-240 V)
Ferrite core
5±1
Noise suppressor

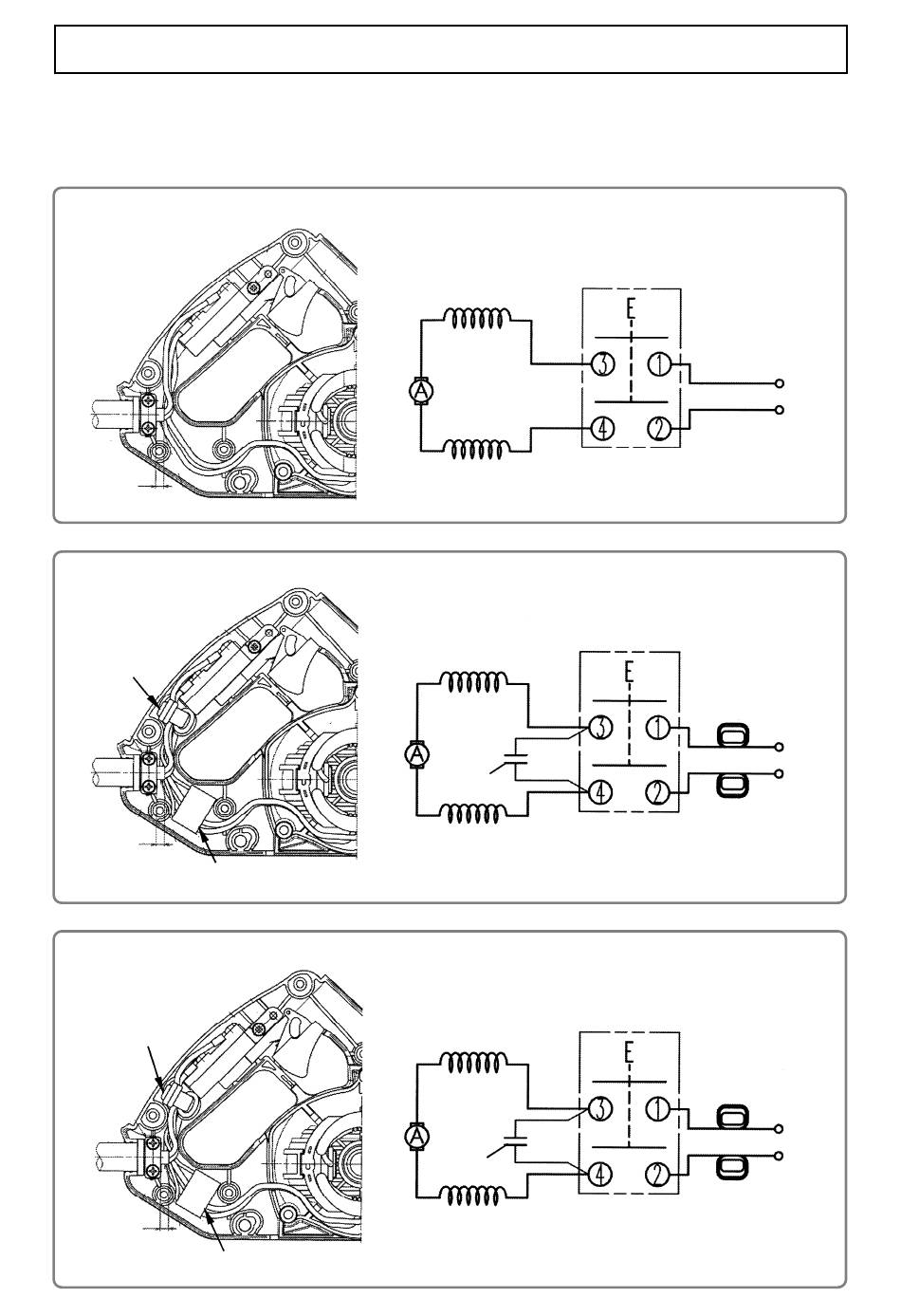

Wiring diagram

Stator coil
Armature
Stator coil
Stator coil
Armature
Noise
suppressor
Stator coil
Stator coil
Armature
Noise
suppressor
Stator coil
-10-
Switch
White
White
Switch
Ferrite core
White
White
Switch
Ferrite core
Blue
Blue
White
Power
source
Black
White
Power
source
Black
Blue
Power
source
Brown
