Reassembly - Hitachi C 7SB3 Service Manual

Generally, perform reassembly by reversing the disassembly procedure. However, special attention should

be given to the following items. Refer to "Lubrication points and type of lubricant" on page 8 for the grease

required for reassembly.

1. Reassembly of the power supply unit and its vicinity

Perform wiring according to the wiring diagrams shown on page 10 when replacing the Stator Ass'y [20],

Cord [53], Noise Suppressor [35] or Switch [45]. Mount the Cord Clip [48] in the direction shown in the

following figure.

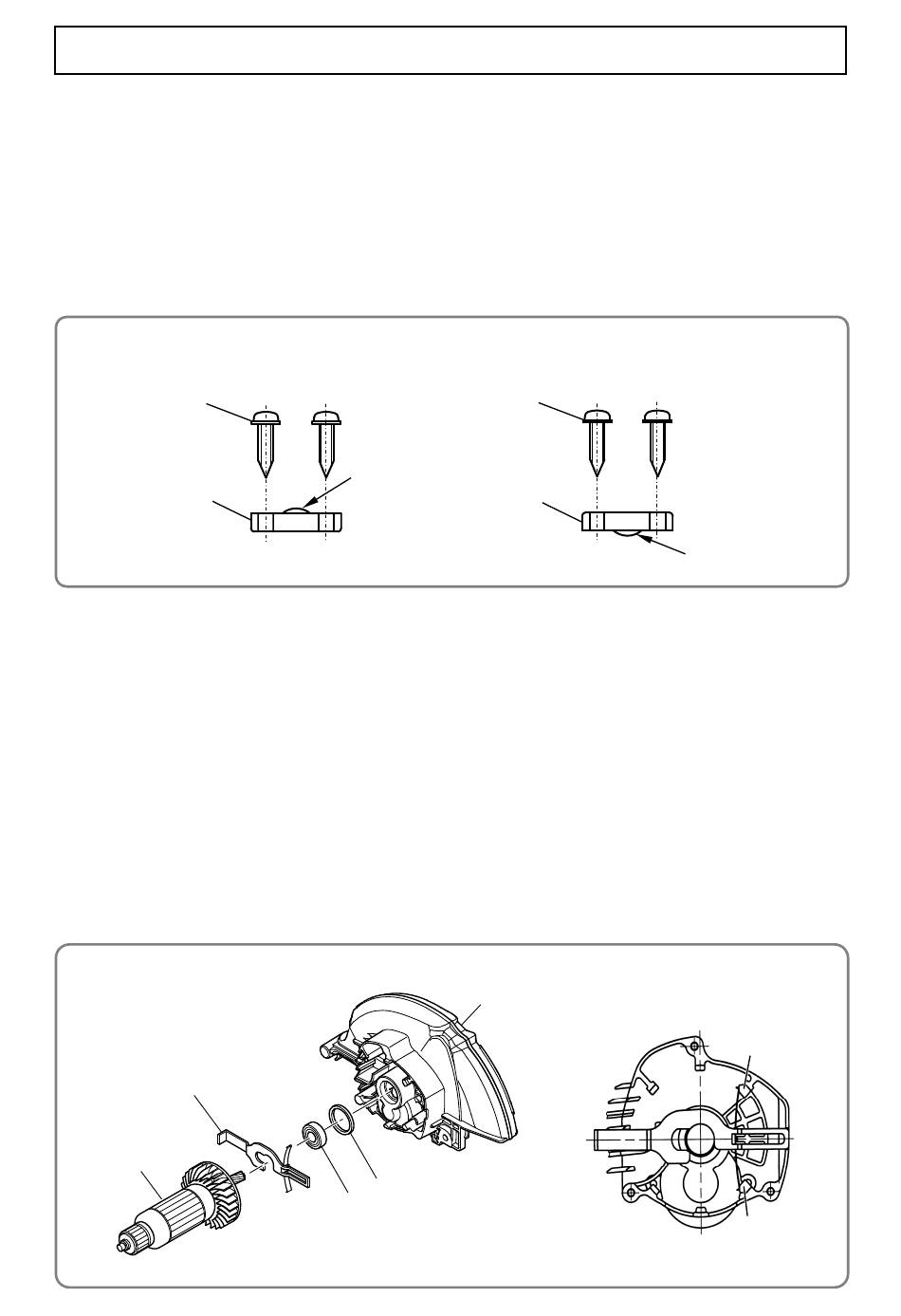

• Mounting the cord clip

For the USA, Canada, and Mexico

[49]

[48]

2. Mounting the stator ass'y

Press-fit the Stator Ass'y [20] into the Housing Ass'y [40] so that the internal wire of the Stator Ass'y [20] is

positioned to the opposite side of the name plate on the Housing Ass'y [40]. Refer to the wiring diagrams

on page 10. After press-fitting, hook the Brush Terminal [19] on the Brush Holder [41].

3. Mounting the gear cover

(1) Mount the Rubber Ring [31] into the Gear Cover [26]. Mount the Lock Lever [23] between the fan of the

Armature [22] and Ball Bearing 6001VV [30]. Then carefully mount it into the Gear Cover [26].

NOTE: Check that both ends of the flat spring on the Lock Lever [23] are properly supported

inside the ribs of the Gear Cover [26].

(2) After mounting the Lock Lever [23], check that the Gear Cover [26] is secured to the Housing Ass'y [40]

with the Machine Screws M5 x 50 [38]. Push the Lock Lever [23] by hand and check that it returns to its

original position when released.

• Mounting the gear cover

[23]

[22]

Reassembly

Other than the USA, Canada, and Mexico

Protrusion

[26]

[31]

[30]

-6-

[49]

[48]

Protrusion

Rib
