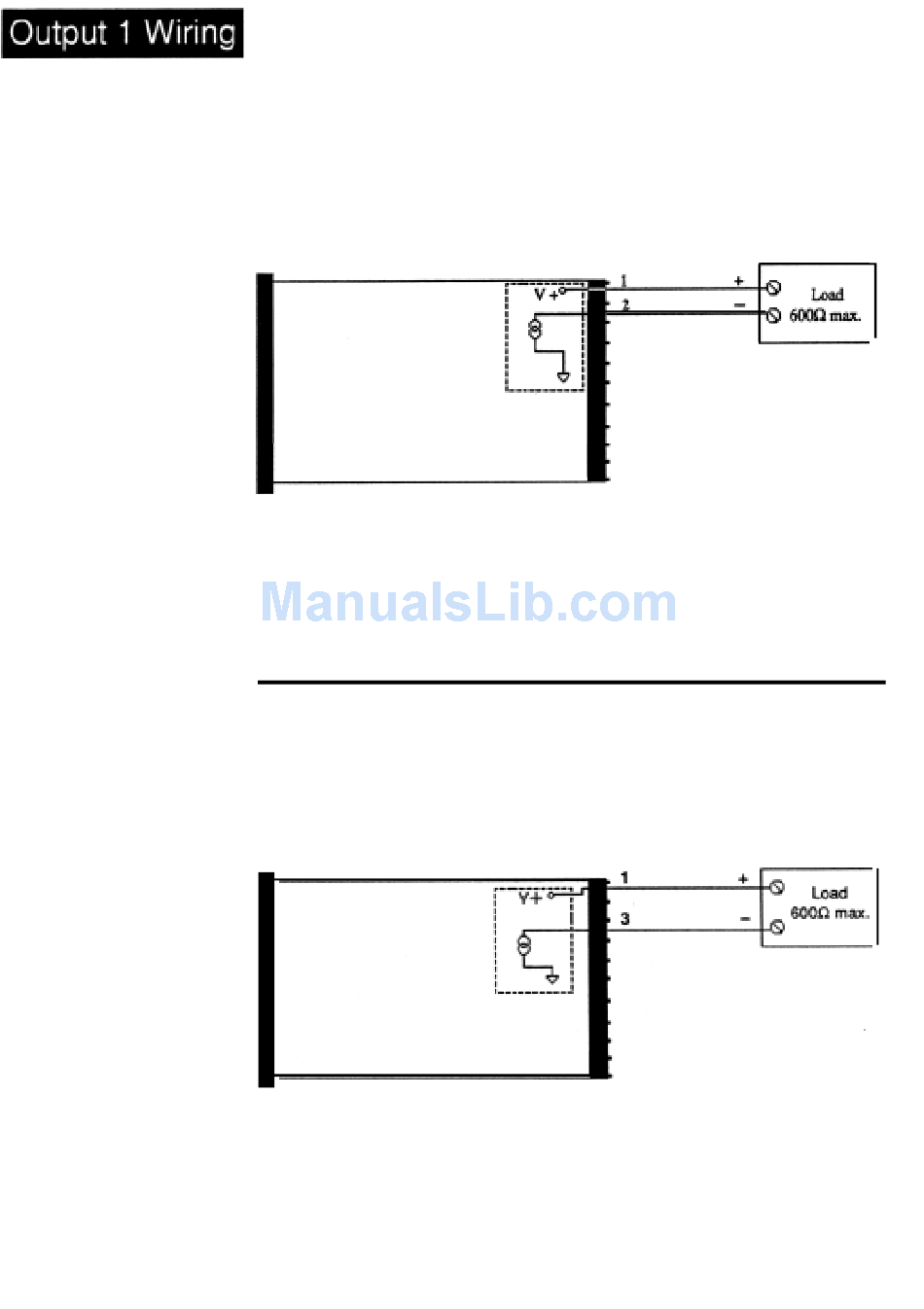

Figure 18 -
4-2OmA, Output 1,
Option "F" Wiring
Diagram.
Figure 19 -
0-20mA, Output 1,
Option "G" Wiring
Diagram.
18
WATLOW Series 980/985 User's Manual
Output 1 Option "F", 4-20mA
Model# 98_A-_F _0-0000
Process Output
Proportional value determined by the control to balance the sensor input and set point.
This value will fall between 4-20mA depending on your process output type.
Output 1 Option "G", O-20mA
Model# 98_A-_G _0-0000
Process Output
Proportional value determined by the control to balance the sensor input and set point.
This value will fall between 0-20mA depending on your process output type.
2
Install and Wire, Chapter
