FUNCTIONS

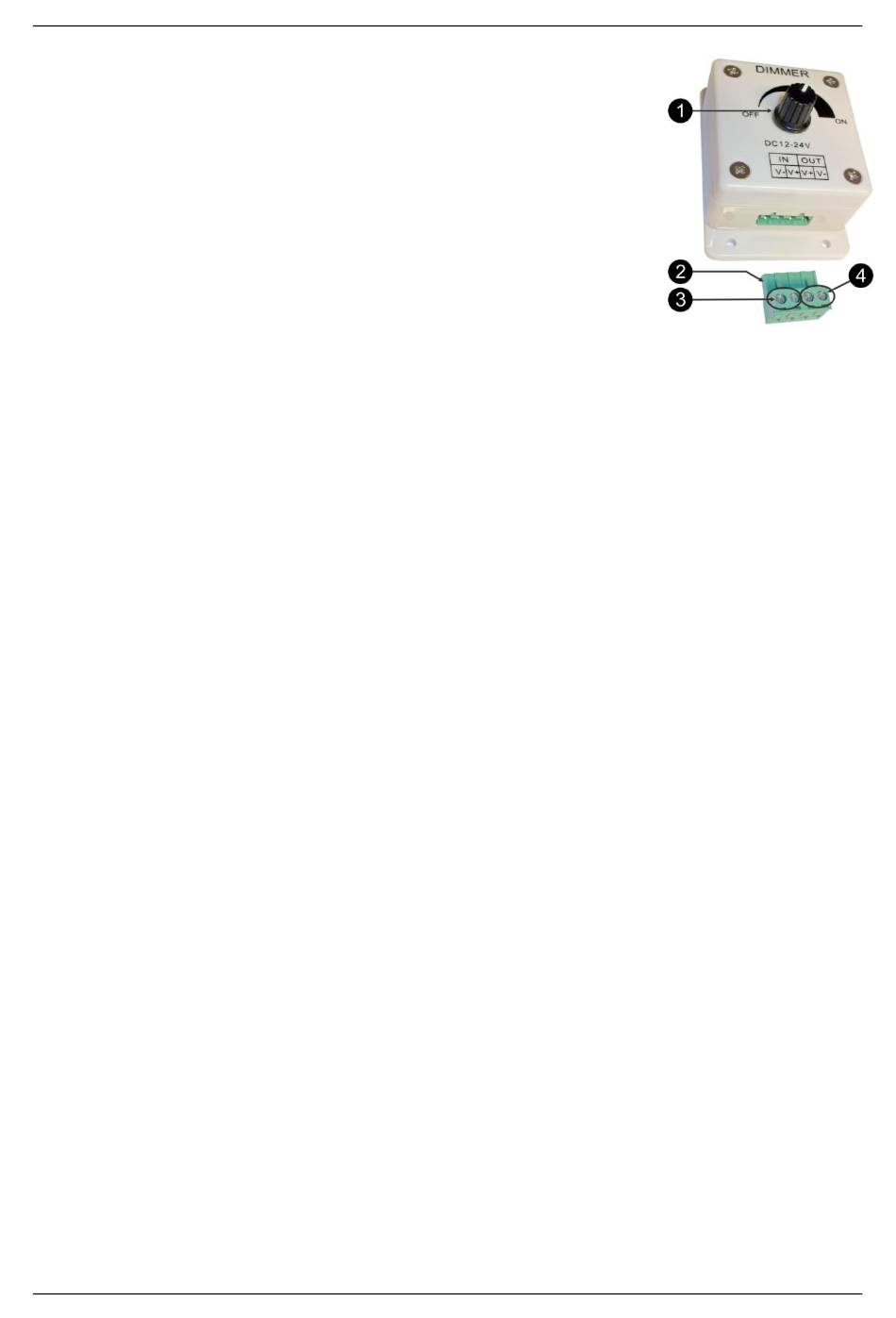

1. DIMMER KNOB: used to manually adjust the output from 0% to 100%.
2. EURO BLOCK: plug-in connector with standard 5.08mm pitch.
3. POWER INPUT: connect the power supply (12Vdc or 24Vdc) here
(important: check the polarity !)
4. LOAD OUTPUT: connect the led strip(s) here (important: check the polarity !)
SPECIFICATIONS
This unit is radio-interference suppressed. This product meets the requirements of the current European and
national guidelines. Conformity has been established and the relevant statements and documents have been
deposited by the manufacturer.
Power Input:
Max output:
Dimensions (HxWxD):
Weight:
You can download the latest version of this user manual on our website: www.jb-systems.eu
JB SYSTEMS
®
12Vdc or 24Vdc (depends on the voltage of the led strips)
1ch common anode, 80W @ 12Vdc or 160W @ 24Vdc
89 x 59 x 50 mm (incl. knob and surface-mount box)
65 g
Every information is subject to change without prior notice
