ENGLISH

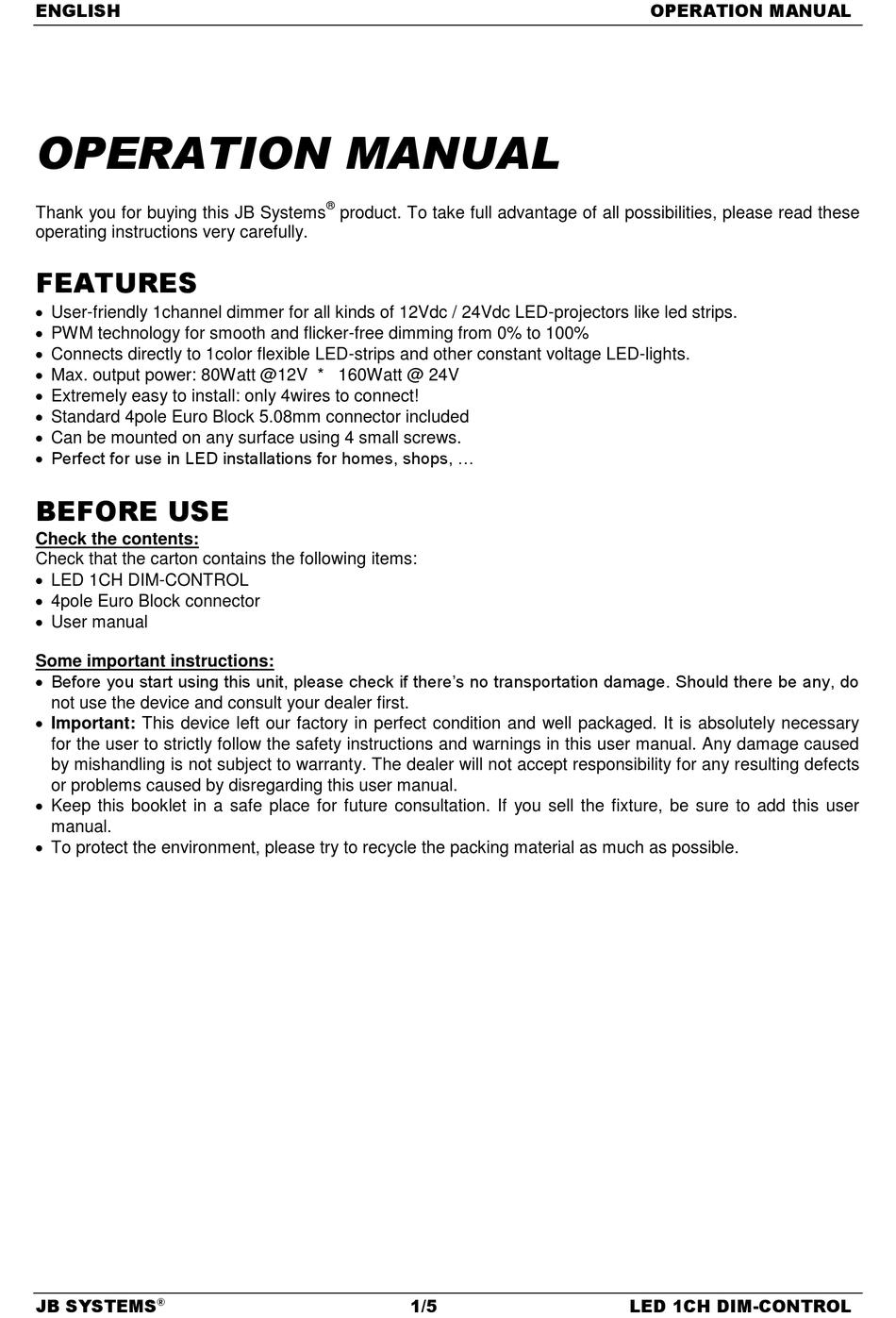

OPERATION MANUAL
Thank you for buying this JB Systems
operating instructions very carefully.

FEATURES

 User-friendly 1channel dimmer for all kinds of 12Vdc / 24Vdc LED-projectors like led strips.
 PWM technology for smooth and flicker-free dimming from 0% to 100%
 Connects directly to 1color flexible LED-strips and other constant voltage LED-lights.
 Max. output power: 80Watt @12V * 160Watt @ 24V
 Extremely easy to install: only 4wires to connect!
 Standard 4pole Euro Block 5.08mm connector included
 Can be mounted on any surface using 4 small screws.
 Perfect for use in LED installations for homes, shops, ...

BEFORE USE

Check the contents:
Check that the carton contains the following items:
 LED 1CH DIM-CONTROL
 4pole Euro Block connector
 User manual
Some important instructions:
 Before you start using this unit, please check if there's no transportation damage. Should there be any, do
not use the device and consult your dealer first.
 Important: This device left our factory in perfect condition and well packaged. It is absolutely necessary
for the user to strictly follow the safety instructions and warnings in this user manual. Any damage caused
by mishandling is not subject to warranty. The dealer will not accept responsibility for any resulting defects
or problems caused by disregarding this user manual.
 Keep this booklet in a safe place for future consultation. If you sell the fixture, be sure to add this user
manual.
 To protect the environment, please try to recycle the packing material as much as possible.
JB SYSTEMS
®
®
product. To take full advantage of all possibilities, please read these
1/5
OPERATION MANUAL
LED 1CH DIM-CONTROL
