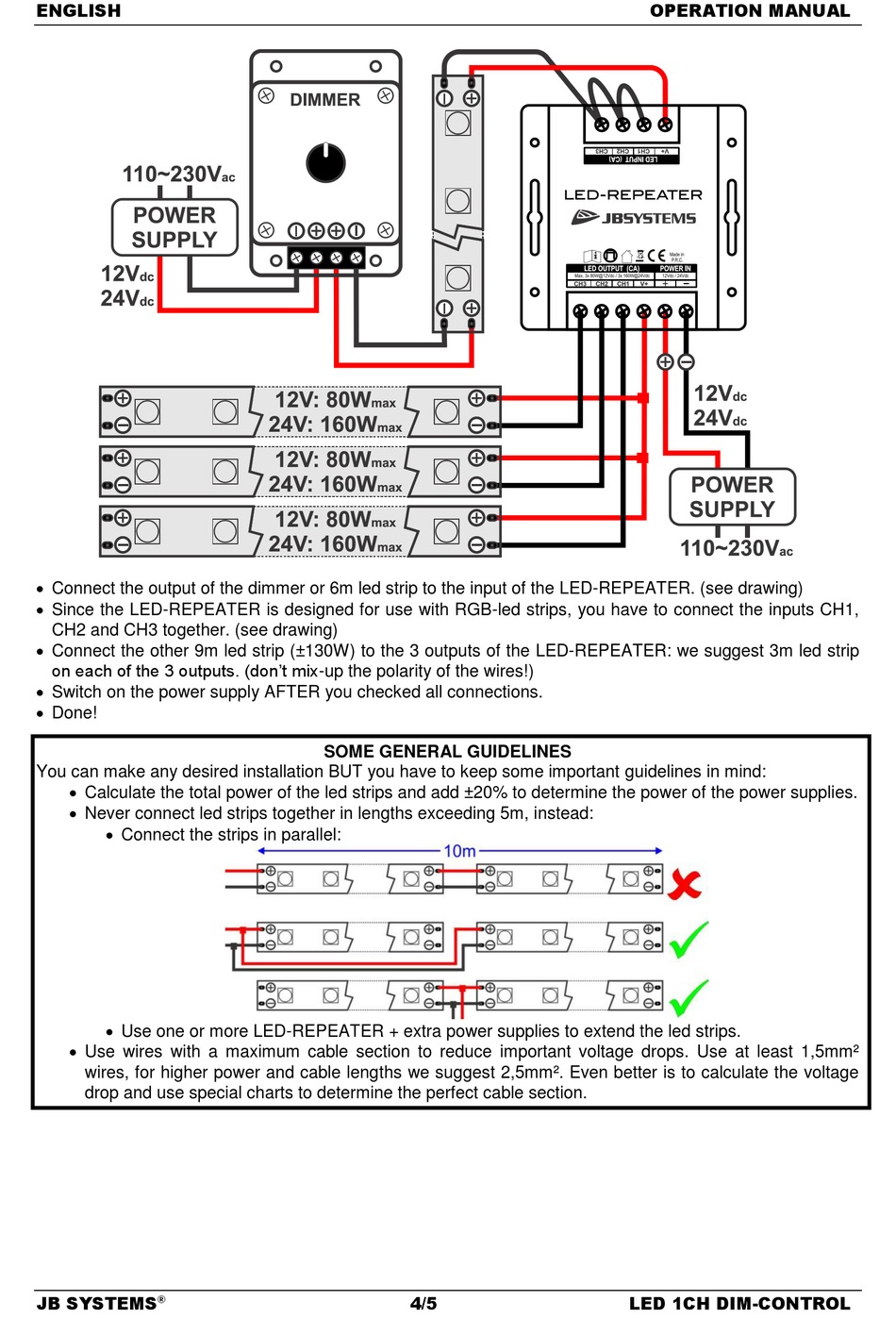

 Connect the output of the dimmer or 6m led strip to the input of the LED-REPEATER. (see drawing)
 Since the LED-REPEATER is designed for use with RGB-led strips, you have to connect the inputs CH1,
CH2 and CH3 together. (see drawing)
 Connect the other 9m led strip (±130W) to the 3 outputs of the LED-REPEATER: we suggest 3m led strip
on each of the 3 outputs. (don't mix-up the polarity of the wires!)
 Switch on the power supply AFTER you checked all connections.
 Done!
You can make any desired installation BUT you have to keep some important guidelines in mind:
 Calculate the total power of the led strips and add ±20% to determine the power of the power supplies.
 Never connect led strips together in lengths exceeding 5m, instead:
 Connect the strips in parallel:
 Use one or more LED-REPEATER + extra power supplies to extend the led strips.
 Use wires with a maximum cable section to reduce important voltage drops. Use at least 1,5mm²
wires, for higher power and cable lengths we suggest 2,5mm². Even better is to calculate the voltage
drop and use special charts to determine the perfect cable section.
