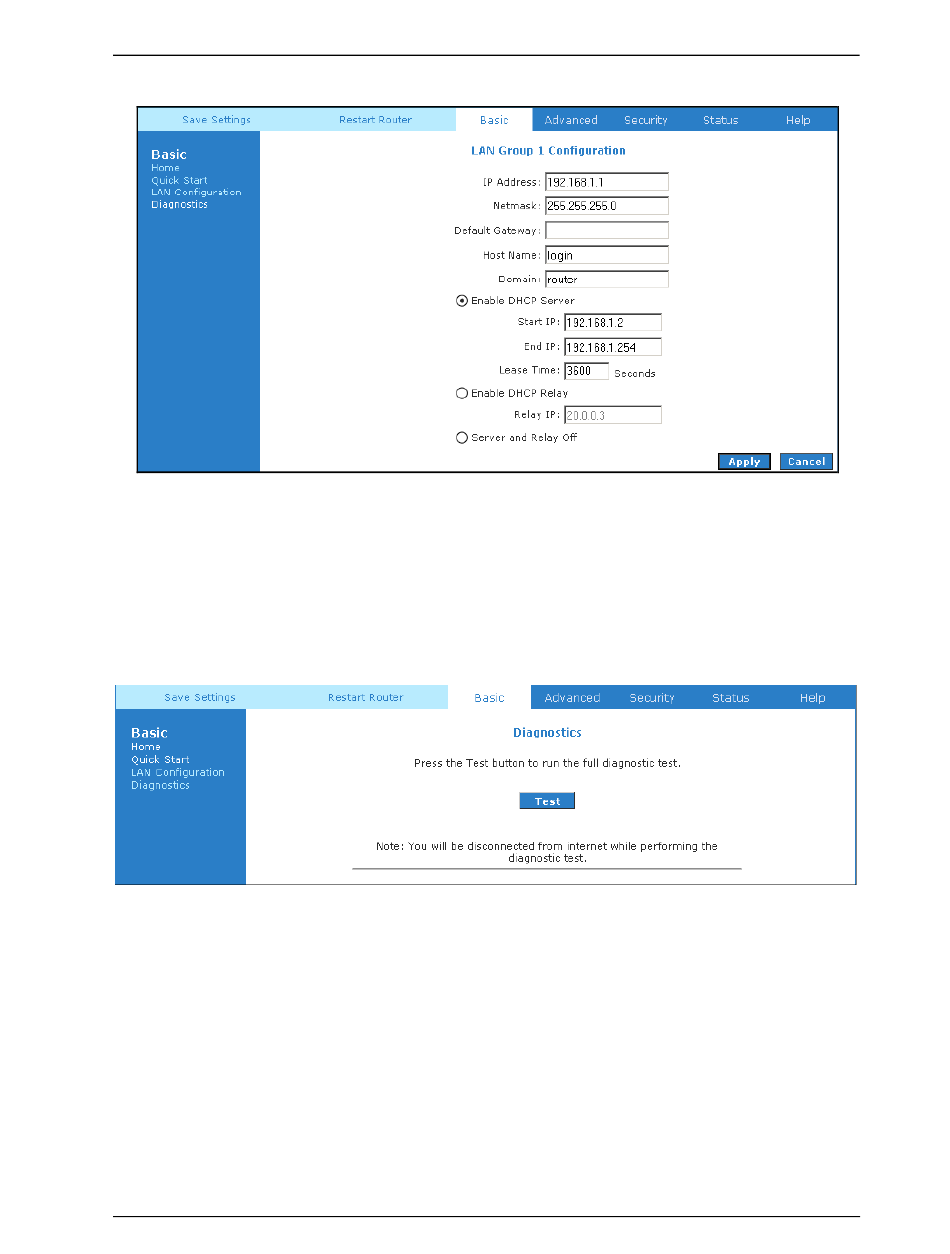

Figure 1-7 : LAN / DHCP Configuration

4.4

Diagnostic Test

Diagnostic Test is used for investigating whether the ADSL Modem is properly
connected to the WAN Network. See Fig 1-8. This test may take a few seconds to
complete. To perform the test, select your connection from the list and press the Test
button. Before running this test, make sure you have a valid DSL link.

Figure 1-8 : Diagnostics Test Screen

After running the Diagnostic Test, the screen will indicate the portion which pass or fail
the test. Please click on the Help links, which will provide remedy to the problem as
shown in Fig 1-9. The purpose of the "Fix It " button is to restore the modem's VPI and
VCI to its originated setting.
