MOD-6705/6708
MOD - 6356
Thank you for purchasing the MODWAY BED!
Before you start, here are some helpful advice:
1. We suggest you spend a short time reading through this leaflet and then follow the simple step instructions.
2. Owing to the size and weight of the bed, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 20 minutes.
3. Please do not use any tools other than those provided or recommended in these instructions.
4. Please do not throw away any of the packaging or the instruction until you have checked all the components and
hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
environmentally friendly way.
5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save tools that have been provided.
6. Please keep all fitting out of reach of children.
Customer Service 609-256-9000 www.modway.com
Component
:

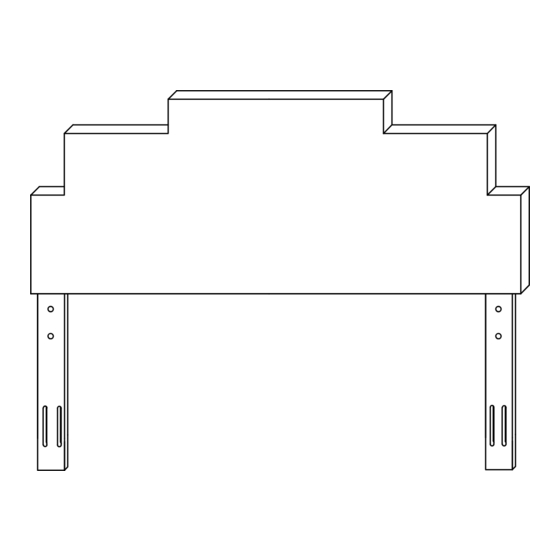

HEADBOARD
A
SUPPORT WOOD
B
BED FRAME
(DOES NOT INCLUDE
C
WITH THE PURCHASE)
1 PC
2 PCS
-
01 of 03
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for modway MOD-6705
Summary of Contents for modway MOD-6705
- Page 1 MOD-6705/6708 MOD - 6356 Thank you for purchasing the MODWAY BED! Before you start, here are some helpful advice: 1. We suggest you spend a short time reading through this leaflet and then follow the simple step instructions. 2. Owing to the size and weight of the bed, we recommend that it is assembled by two adults, on a carpeted or padded area, in the room that it is intended for.
- Page 2 1.3 Secure each Support Wood (B) by using 2x JCBB Bolt (1) and 2x M8 Flat Washer (2). Tighten with supplied Allen Key (3). Repeat the same procedure to secure the other side. Note: Hardware may loosen over time. Periodically check that all connections are tight. 02 of 03 Customer Service 609-256-9000 www.modway.com...
- Page 3 Flat Washer (6) at the end of each screw. Then tighten by using the Allen Key (9). 2.4 Repeat the same procedure for each screw and each side of the bed frame. STEP 3 03 of 03 Customer Service 609-256-9000 www.modway.com...
- Page 4 MOD - 6266 Thank you for purchasing the MODWAY BED! Before you start, here are some helpful advice: 1. We suggest you spend a short time reading through this leaflet and then follow the simple step instructions. 2. Owing to the size and weight of the bed, we recommend that it is assembled by two adults, on a carpeted or padded area, in the room that it is intended for.
-
Page 5: Wood Screw
MOD - 6266 STEP 1 1.1 Secure the Bed Leg (G) & L Bracket (5) to the Headboard (A) and Footboard (B) using hardware parts BOLT (1), SPRING WASHER(2), FLAT WASHER (3), ALLEN KEY (4) & WOOD SCREW (7). STEP 1.1 STEP 1.2 1. - Page 6 MOD - 6266 STEP 3 3.1 Attach the Side Rails (C) to the Headboard (A) & Footboard (B) using hardware parts BOLT (1), SPRING WASHER(2), FLAT WASHER (3), ALLEN KEY (4) & WOOD SCREW (7). STEP 3.2 STEP 3.1 1. JCBB BOLT M8 x 20mm x 8pcs 2.
- Page 7 MOD - 6266 STEP 5 5.1 Secure the Slats (F) into the Side Rail (C) using hardware parts WOOD SCREW (8). 8. WOOD SCREW M4 x 32mm x 9pcs Screw Driver STEP 6 6.1 Carefully position the assembled bed to the desired location by four adults. Assembly is complete.
