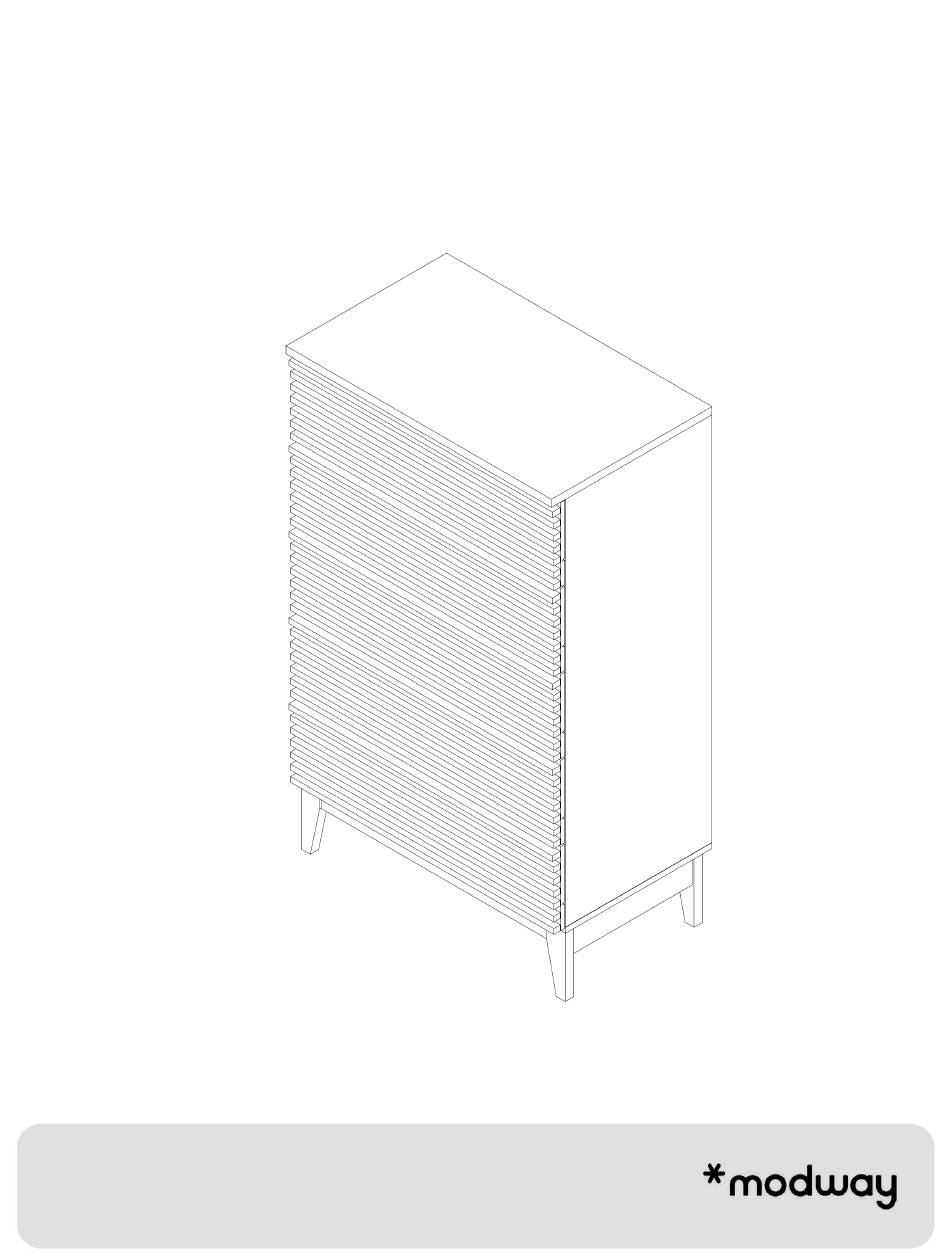

- Page 1 A S S E M B L Y I N S T R U C T I O N S MOD-6967-WAL V1.01.07.21 Questions? Contact us! 609.256.9000 • cs@modway.com www.modway.com...
-
Page 2: Let's Get Started
C/board Runner Left C/board Runner Right Allen Key Drawer Runner Left Wooden Dowel Ø6 x 25mm x15 Missing parts or hardware? Need assistance? Contact us before returning your item. We're here to help! 609.256.9000 • cs@modway.com Page 2 of 11... - Page 3 Step 1 HA R D W A R E Wooden Dowel Ø6 x 30mm Floor Glide-B321 C/board Screw Ø3.5 x 16mm x4 CO M P O N E N T S Right Side Panel Left Side Panel Back Panel Front Leg Panel Back Leg Panel Right Leg Support Left Leg Support...
- Page 4 Step 3 HA R D W A R E Cam Lock- Ø15 x 12mm CO M P O N E N T S Front Leg Panel Right Leg Support Left Leg Support Step 4 HA R D W A R E Cam Lock- Ø15 x 12mm CO M P O N E N T S Back Leg Panel...
- Page 5 Step 5 HA R D W A R E C/board Screw Ø3.5 x 16mm x40 C/board Runner Left C/board Runner Right CO M P O N E N T S Right Side Panel Left Side Panel FRONT Step 6 HA R D W A R E Cam Lock- Ø15 x 12mm CO M P O N E N T S Right Side Panel...
- Page 6 Step 7 HA R D W A R E Cam Lock- Ø15 x 12mm CO M P O N E N T S Right Side Panel Left Side Panel Back Panel Body Support Step 8 HA R D W A R E Cam Lock- Ø15 x 12mm JCBCW M6 x 50mm Allen Key...
- Page 7 Step 9 HA R D W A R E Cam Lock- Ø15 x 12mm CO M P O N E N T S Top Panel Right Side Panel Left Side Panel Back Panel Step 10 Step 10.1 HA R D W A R E JCBC M6 x 80mm JCBC M6 x 60mm Allen Key...
- Page 8 Step 11 HA R D W A R E Wooden Dowel Ø6 x 30mm x60 Wooden Dowel Ø6 x 25mm x15 CO M P O N E N T S Drawer Right Drawer Left Drawer Back Drawer Handle Drawer Support Step 12 HA R D W A R E Cam Bolt-...
-
Page 9: Warning Label
Step 13 HA R D W A R E C/board Screw Ø4 x 38mm x15 CO M P O N E N T S Drawer Right Drawer Left Drawer Back Drawer Support Step 14 Step 14.1 Step 14.2 WARNING LABEL HA R D W A R E Cam Lock- Ø12 x 9.9mm x15 CO M P O N E N T S... - Page 10 Step 15 HA R D W A R E C/board Screw Ø3.5 x 16mm x30 Drawer Runner Left Drawer Runner Right CO M P O N E N T S Drawer Right Drawer Left Step 16 Page 10 of 11...
-
Page 11: Connect With Us
Clean using a non-abrasive cloth and a mild cleaner. Never use harsh chemicals, as they could damage the finish or integrity of the item. CONNECT WITH US! Tag us @modway_furniture and #modway for a chance to be featured. Page 11 of 11... - Page 12 4. Lace the end of the restraint strap (B) through the larger hole in each mounting bracket. Bring both ends together and slide the flat end through the locking end and draw it through until all slack is removed. 5. Confirm that the strap (B) is securely laced and locked. Customer Service 908-368-1025 | www.modway.com...
