Korenix JetCon 3701G Quick Installation Manual

JetCon 3701G
Quick Installation Guide v1.0
Copyright
Copyright © 2014 all rights reserved. No part of this publication may be
reproduced, adapted, stored in a retrieval system, translated into any
language, or transmitted in any form or by any means without the written
permission of the supplier.
About the Quick Installation Guide
This Quick Installation Guide is intended to guide professional installer to
install and configure the JetCon 3701G . It covers procedures to assist you
in avoiding unforeseen problems.
Introduction

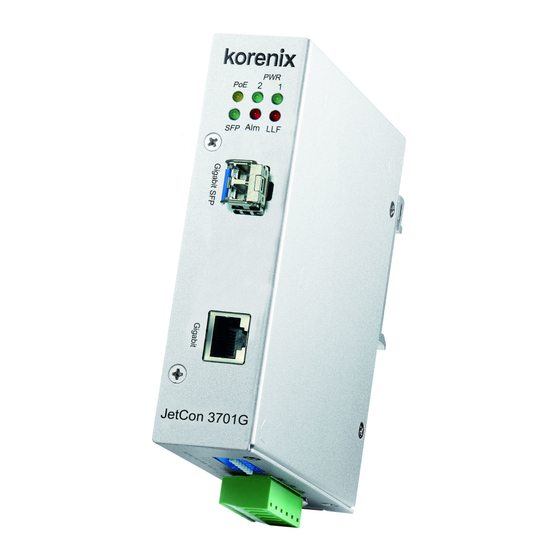

JetCon 3701G is an Ethernet to fiber optic media converter. It conforms
IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, and IEEE 802.3ab 1000Base-T
supports RJ-45 copper to Gigabit fiber conversion. JetCon3701G are
classified as power source equipment (PSE), providing 15.4/30 watts to
powered devices(PD). It could be used to power IEEE 802.3af/at compliant
powered devices (PD). The JetCon 3701G adopts rugged metal case design
to operate in harsh environment (-40~75°C). It also IP-31 standard
protection. It features link loss forwarding raise an alarm when a remote
fault occurs and also adopts one relay output to alarm users if a port link or
power fails. Alarm can be enable/disable by dip switch. The fiber port
supports SFP sockets for several of SFP transceiver to achieve different link
distance.
JetCon 3701G recommend working voltage is DC 48V. (Input range: DC10~
60 V)
Package Check List
JetCon 3701G Industrial Media Converter

Quick Installation Guide

Installation
Mount the unit
Din-Rail mount: Mount the din-rail clip on the rear of JetCon 3701G V2 on
the DIN rail. For information about the DIN Rail installation, please refer
to user's manual.
Grounding JetCon 3701G
There is one grounding screw on the
bottom side of JetCon 3701G . Connect the
frame grounding of JetCon 3701G to the
grounding surface to ensure safety and
prevent noise for communication interference.

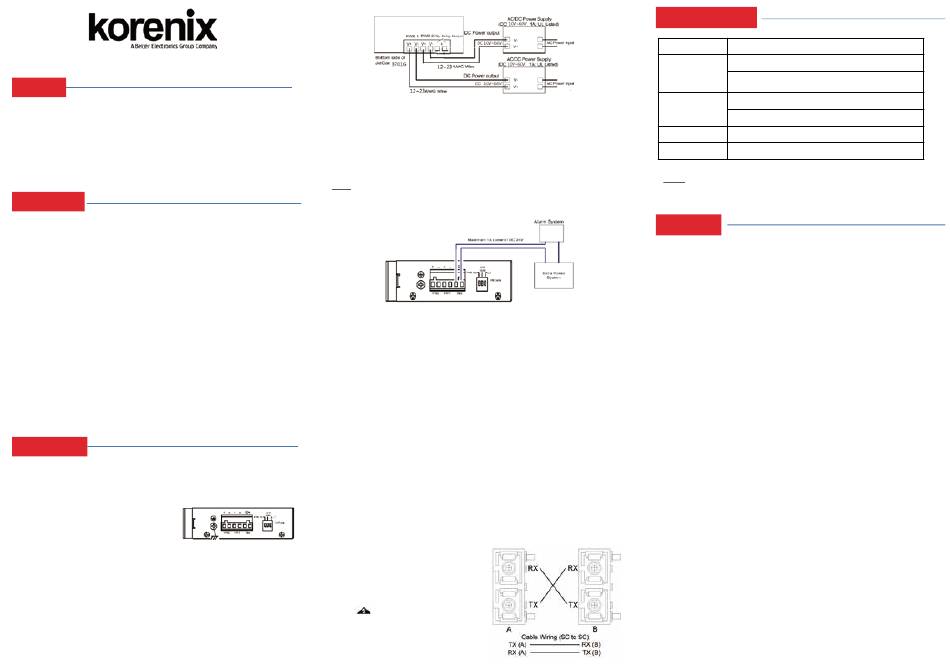

Wiring the Power Inputs
1. Insert the positive and negative wires into the V+ and V- contact on the
terminal block connector.
2. Tighten the wire-clamp screws to prevent the power wires loosened.
Wiring the Relay Output
The relay output contacts are in the middle of the terminal block connector
as shown below. By inserting the wires and settings the DIP switch of the
respective alarm function to "ON", relay output alarm will detect port or
power fault, and form a short circuit. The alarm relay output is "Normal
Open". For more information, please refer Manual chapter for more detail.
Note:
The relay contact only support 1A current, DC 24V. It does not recommend
apply higher voltage and current that over this specification.
Connecting to Network
1. Connecting the Gigabit PoE port: The port supports IEEE 802.3at PoE
standard, and offer 2 event PoE behavior. Thus, the PoE port can
offer 15W/30W power, and system offer 60W with DC12V input
under 70C one end of an Ethernet cable into the UTP port of JetCon
3701G , while the other end is connected to the attached networking
device. UTP port support auto MDI/MDIX function. The LNK / ACT
LED will turn on and flash to indicate RJ-45 port link and the packets
received and transmitted from RJ-45.
2. Install Gigabit SFP transceiver and make the connection: Connect
the fiber port on your JetCon 3701G to another Gigabit Fiber
Ethernet device, by following the figures below. Wrong connection
will cause the fiber port not working properly.
The SFP Fiber port supports 2 LEDs for link/activity and full duplex/
collision, once the gigabit fiber port is in up, the link LED will be
trigger to"ON"
Attention:
This is a Class 1 Laser/LED product.
Don't stare into the Laser/LED
Beam.
DIP Switch Setting
Dipswitch Functionality
Switch 1 On: Enable power event alarm
Off: Disable.
Switch #2 On: SFP speed at 100Mbps
Off: SFP speed at 1000Mbps
Switch #3 On: Enable LLF function
Off: Disable.
Note:
After adjusting the DIP-switch, please reboot the unit to activate the
new settings.
Support
5 Years Warranty
Each of Korenix's product line is designed, produced, and tested with
high industrial standard. Korenix warrants thatthe Product(s) shall be
free from defects in materials and workmanship for a period offive (5)
years from the date of delivery provided thatthe Product was properly
installed and used.
This is warranty is voided if defects, malfunctions or failures ofthe
warranted Product are caused by damage resulting from force measure
(such as floods, fire, etc.), other external forces such as power
disturbances, over spec power input, or incorrect cabling; or the
warranted productis misused, a bused, or operated, altered and
repaired in an unauthorized or improper way.
Attention! To avoid system damage caused by sparks, please DO NOT
plug in power connector when power is on.
The productis in compliance with Directive 2002/95/EC and 2011/65/EU
ofthe European Parliament and ofthe Council of 27 January 2003 on the
restriction ofthe use of certain hazardous substances in electrical and
electronics equipment (RoHS Directives & RoHS 2.0)
Korenix Customer Service
KoreCARE is Korenix Technology's global service center, where our
professional staff are ready to solve your problems at any time Korenix
global service center's e -mail is KoreCARE@korenix.com.
For more information and documents download please visit our website:
http://www.korenix.com/downloads.htm
