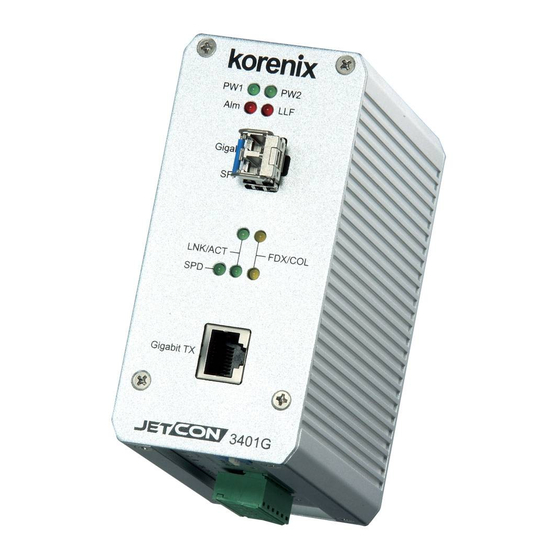

- Page 1 JetCon 3401G Industrial Gigabit Ethernet Media Converter Quick Installation Guide V1.0 2-Oct-2008 www.korenix.com...
- Page 2 100Base-TX and 1000Base-T/SX/LX standard, supports RJ-45 copper to Gigabit fiber conversion using store and forward technology. The JetCon 3401G adopts rugged metal case design to operate in harsh environments (-25℃~70℃); It also provides IP-31 standard protection. It features Link Loss Forwarding to raise an alarm when a remote fault occurs and also adopts one relay output to alarm users if a port link fails or if the power fails.
- Page 3 1. Connecting the Ethernet Ports: Connect one end of an Ethernet cable into the UTP port of JetCon 3401G, while the other end is connected to the attached networking device. The UTP ports support auto MDI/MDIX function. The Speed LED will turn on for 1000M link and blinking for 100Mbps link;...
- Page 4 LLF DIP-switch must be re-triggered to arouse this function. To disable Link Loss Forwarding function. Korenix Customer Service KoreCARE is Korenix Technology’s global service center, where our professional staffs are ready to solve your problems at any time. Korenix global service center’s e-mail is KoreCARE@korenix.com...
