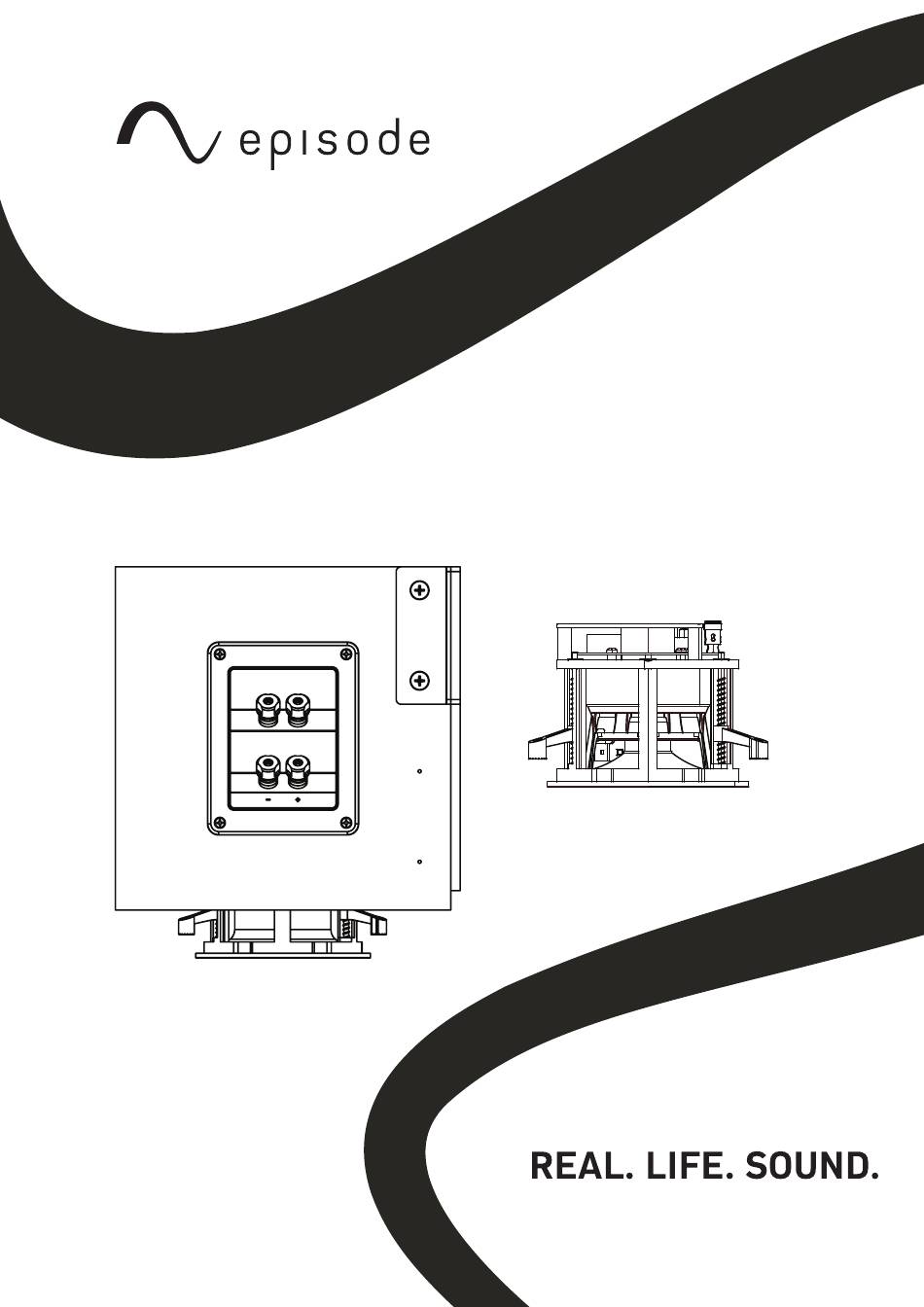

- Page 1 INSTALLATION MANUAL Impression Series ES-IM4IC ES-IM6-BP-SUB...
-
Page 2: Tools Required
Impression in-ceiling speakers use a very small grille to avoid hindering the design of the space. The Impression series uses 4-inch satellite speakers and a 6 1/2-inch bandpass subwoofer to deliver state- of-the-art sound using three scientific principles: low distortion, wide dispersion, and flat-frequency response, giving users complete and immersive audio that’s clean and accurate. - Page 3 page | 3 Wiring guides 0.1 - Discrete subwoofer driven from 1 zone / 2 channels No satellite speakers Single subwoofer Conventional parallel wiring (Impedance: 4.5 nominal / 4 minimum) SPL output matches satellite sensitivity 0.1 (option) - Discrete subwoofer driven from 1 zone / 1 channel No satellite speakers Single subwoofer Serial wiring...
- Page 4 page | 4 4.0 - Multi-satellite, driven from 1 zone / 2 channels Four satellite speakers, high-pass filter OFF No subwoofer Conventional parallel wiring (Impedance: 4 nominal / 3 minimum) 4.1 - System, driven from 1 zone / 2 channels Four satellite speakers, high-pass filter ON Single subwoofer Conventional parallel wiring...
- Page 5 page | 5 4.2 (option) - System, driven from 2 zones / 4 channels Four satellite speakers, high-pass filter ON Two subwoofers Hybrid parallel/serial wiring (Satelite impedance: 6 nominal / 4 minimum) (Subwoofer impedence: 9 nominal / 8 minimum) Use included serial wire connector NEW CONSTRUCTION BRACKET INSTALLATION...
- Page 6 page | 6 SATELLITE SPEAKER INSTALLATION General guidelines • Mount into an exact 4.1-inch hole. • If you plan to install the optional back-can for the satellite speakers, you must attach the back-can to the new construction bracket and run wire to them before the drywall is installed. CAUTION: There is no way to retrofit the optional back-can for the satellite speakers after the drywall is installed.
-
Page 7: Subwoofer Installation
page | 7 8. Insert the speaker into the opening, then tighten the Phillips screws located on the front baffle to rotate and tighten the mounting doglegs to the ceiling. The mounting doglegs will move outward and tighten to secure the speaker to the drywall. - Page 8 page | 8 Tip: Because you will need to fish the tube through the ceiling opening after the ceiling is installed, it’s a good idea to temporarily secure the end of the tube against the joist so it’s within easy reach of the opening and out of the way of potential ceiling finishing tools.
-
Page 9: Specifications
page | 9 SPECIFICATIONS ES-IM4IC Satellite Speaker 19 mm (3/4”) neo magnet Tweeter 89 mm (3 1/2”) carbon/aramid fiber cone with a corrugated rubber surround Woofer 8 ohms nominal; 6 ohms minimum Impedance 100W maximum Power handling 70 Hz to 20 kHz: ±3 dB Frequency response 85 dB SPL (2.8V/1 meter) Sensitivity... -
Page 10: Troubleshooting
| 10 TROUBLESHOOTING Episode® speakers are designed to function trouble-free. Most problems that occur are due to simple issues. If you have trouble, check the list of simple fixes below. If the problem persists, contact Customer Service at 1.866.838.5052. - Page 11 page | 11...
- Page 12 Wirepath Home Systems, LLC, dba “Control4” and/or dba “SnapAV” in the United States and/or other countries. Episode and Wirepath are also registered trademarks or trademarks of Wirepath Home Systems, LLC. Other names and brands may be claimed as the property of their respective owners. All specifications subject to change without notice.
