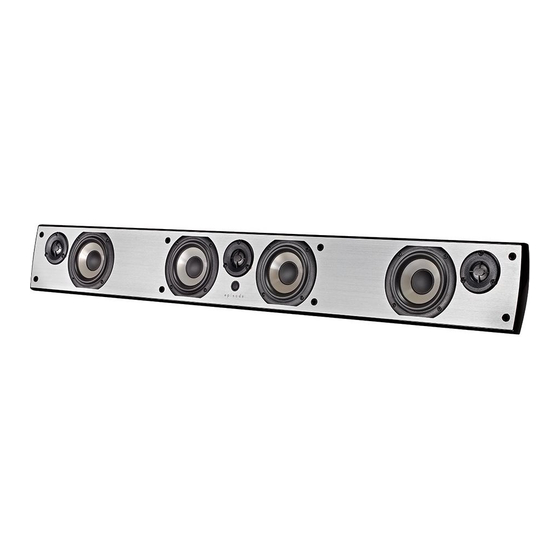

- Page 1 OWNER’S MANUAL >> SOUNDBARS ES-500-SNDBAR-40 ES-500-SNDBAR-50...
-
Page 2: Recommended Amplifier Power
Welcome to Episode® Speakers. We appreciate your purchase and are committed to providing the highest-quality products possible. The Episode® Soundbar models are a superb choice for almost every type of home theater or home audio installation. They have been designed with advanced technological components that allow for high performance and a lifetime of enjoyment. -
Page 3: Installation
1. Remove the 2 screws on the back of the Soundbar. 2. Place the included Kickstand on the rear of Soundbar. 3. Hand Tighten the screws to secure the kickstand to the Soundbar. ES-500-SNDBAR-40 or ES-500-SNDBAR-50 © 2012 Episode pg.3... -
Page 4: Adjusting The Kickstand
ES-500-SNDBAR Installation and Users Manual Attaching the Feet To ensure that the Soundbar will not slip when using the kickstands, (2) rubber feet have been included. The feet must be installed when using the kickstand. Place the feet 3” from the left and Non-Inverted right outer edge, and ¼”... -
Page 5: Attaching The Wall Bracket
Soundbar. 5. Place the Soundbar onto the wall bracket with the rear screws in the slots. Slide the Soundbar onto the bracket. Adjust for proper centering with the TV. Your Slide Soundbar install is now complete. © 2012 Episode pg.5... - Page 6 ES-500-SNDBAR Installation and Users Manual Installing on a Flat Panel Mount The ES-500-SNDBAR can be mounted directly to a Flat Panel Mount with the Strong™ SM-SBAR-BKT bracket (available separately). Using the Flat Panel mount bracket allows for the speaker to move with the TV when mounted to articulating arm mounts.
-
Page 7: Connecting And Calibrating
4. Turn off your receiver and reverse the connections for one of the speakers. 5. Repeat your test at the same volume level. When the sound has the loudest and best sounding bass, and vocals are centered and clear, your connections are correct and in-phase. © 2012 Episode pg.7... -
Page 8: General Maintenance
WARRANTY Limited Lifetime Warranty Episode Soundbar Speakers have a Lifetime Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified or disassembled.
