- Page 1 INSTALLATION MANUAL ES-500-AW-4 ECS-500-AW70V-4 ES-500-AW-6 ECS-500-AW70V-6 ES-500-AW-DVC-6 ES-500-AW-8 ECS-500-AW70V-8...
- Page 2 page | 2 Support 866.838.5052...
-
Page 3: Speaker Wire

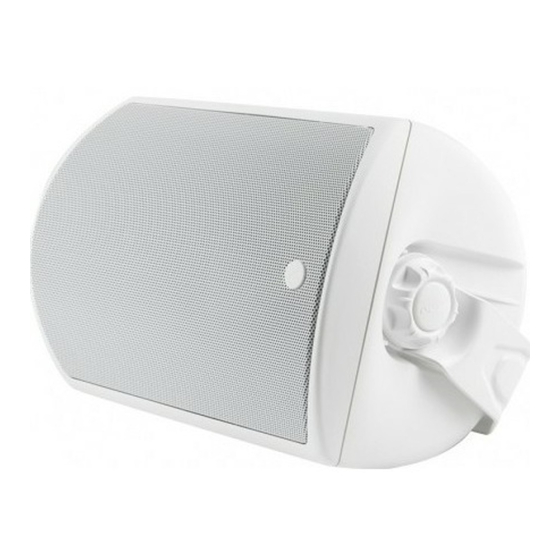

Welcome to Episode® Speakers. We appreciate your purchase and are committed to providing the highest-quality products possible. The Episode® All-Weather models are a superb choice for almost any type of outdoor audio installation or any location where moisture can be a problem. Designed with advanced technological components that allow for high performance, these speakers will provide a lifetime of enjoyment. - Page 4 page | 4 ES-500-AW-X CONNECTIONS Connect ES-AW-X speakers to a left and right channel of an amplifier ensuring correct polarity (+ to + and - to -). Retention Retention Knobs Knobs BALANCED INPUTS – – – 12V TRIGGER Amplifier Left Speaker Right Speaker Outputs ES-500-AW-DVC-6 CONNECTIONS...
-
Page 5: Angle Adjustment
Knob Cap Once the speaker is in the desired position and secured, insert the included safety screw. Remove the cap on the retention knob to access it. Replace Security the cap once the security screw is tightened. Screw © 2017 Episode®... - Page 6 page | 6 DETACH SPEAKER FROM BRACKET Loosen To remove the speaker from the bracket, retention loosen both retention knobs on the sides Knob of the speaker. Pull the bracket away from the top and bottom of the speaker and then slide the speaker from the bracket.
- Page 7 Repeat your test at the same volume level. When the sound has the loudest and best sounding bass, and vocals are centered and clear, your connections are correct and in-phase. CLEANING Use a soft cloth or paper towel with mild detergent to clean the speaker. © 2017 Episode®...
-
Page 8: Specifications
page | 8 SPECIFICATIONS Product ES-500-AW-4 ECS-500-AW70V-4 Gold-Plated Push Gold-Plated Push Connector Type Terminals Terminals 170 x 167 x 248 170 x 167 x 248 Dimensions Without Bracket (L x W x H):mm L=Depth Dimensions With 183 x 167 x 248 183 x 167 x 248 Bracket (L x W x H):mm... - Page 9 6” Polypropylene Polypropylene cone woofer cone woofer cone woofer with vacuum- with vacuum- with vacuum- deposited deposited deposited titanium titanium titanium 1” Pure titanium 1” Pure titanium Dual 3/4” Pure Tweeter dome tweeter dome tweeter titanium dome tweeters © 2017 Episode®...
- Page 10 page | 10 Product ES-500-AW-8 ECS-500-AW70V-8 Gold-Plated Push Gold-Plated Push Connector Type Terminals Terminals Dimensions Without 219 x 232 x 321 219 x 232 x 321 Bracket (L x W x H) Dimensions With 232 x 232 x 321 232 x 232 x 321 Bracket (L x W x H) 8 ohms...
-
Page 11: Warranty
WARRANTY Limited Lifetime Warranty Episode Speakers have a Lifetime Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified or disassembled. - Page 12 © 2017 Episode® Rev: 170410-1000...
