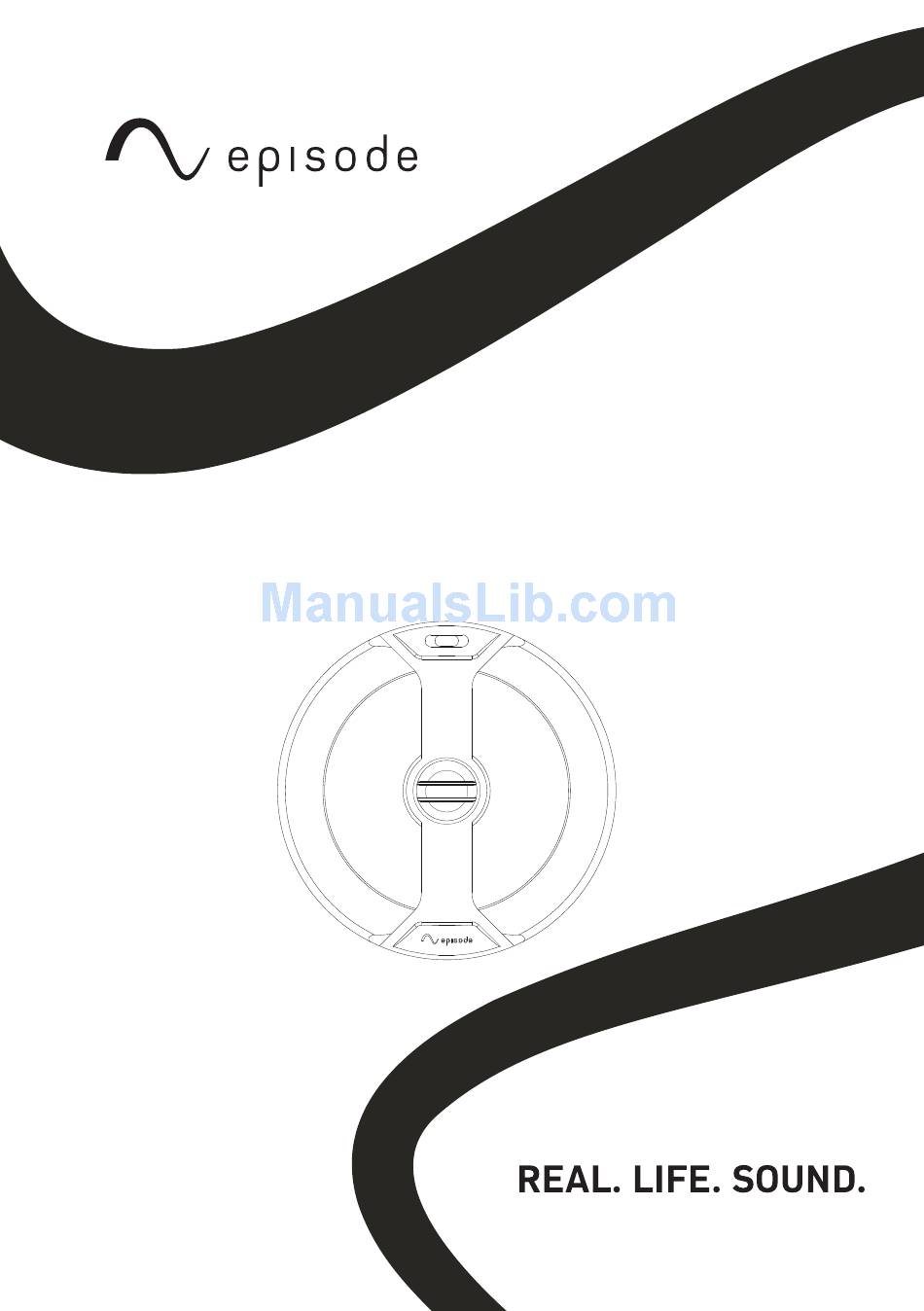

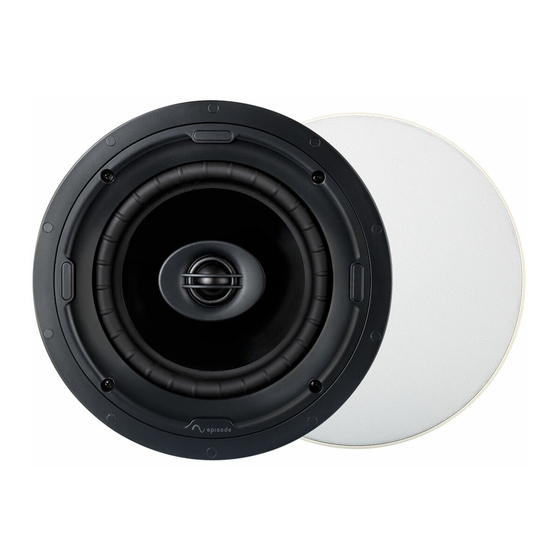

- Page 1 INSTALLATION MANUAL ARCHITECTURAL SPEAKERS...
- Page 2 | 2 INTRODUCTION Thank you for purchasing Episode® speakers. Complete the Setup, Connect, Secure, and Fine Tune sections in this manual to ensure proper installation. Visit our website for design recommendations and speaker calculators. SETUP New Construction Install Episode speaker installations can be simplified by using Episode pre-construction brackets (sold separately).
- Page 3 Model Cutout Dimension Mounting Depth IC-6 8.3" 4.1" POINT-6 9.7" 5.3" IC-8 9.7" 4.1" Model Cutout Dimension Mounting Depth 11.7" x 7.6" 3.6" IW-6 IW-8 13.7" x 9.0" 3.6" 14.4" x 7.6" 3.6" © 2015 Episode® © 2015 Episode®...
- Page 4 page | 4 CONNECT Strip the insulation on each conductor approximately ¼" and insert into the speaker terminals. Ensure no strands of wire protrude from the connectors. Observe proper polarity for each speaker to the amplifier (+ to + and – to – ). Refer to the dual voice coil speaker wiring configuration image below when wiring a dual voice coil speaker.
- Page 5 BI for in-phase output, which produces more direct sound. In rooms with varied arrangement, it is recommended to set to DI for out-of-phase output, which produces more reverberating sound. NOTE: Preference subject to opinion. © 2015 Episode® © 2015 Episode®...
- Page 6 page | 6 Pivoting Tweeter Assembly The pivoting tweeter assembly can be directed to focus the sound where desired. Two common practices are to: • point it directly at the listening area for a more directed sound source. • reflect if off hard surfaces for a more diffused sound field. www.snapav.com Support 866.838.5052 www.snapav.com Support 866.838.5052...
- Page 7 Return Authorization (RA) number. CONTACTING TECHNICAL SUPPORT As a thank you for purchasing Episode® speakers, direct technical support services are available via phone or e-mail. We encourage you to use this resource for any questions or concerns about our products. Visit our website for more support documentation.
- Page 8 © 2015 Episode® Rev: 150608-1030...
