Energy monitor connections

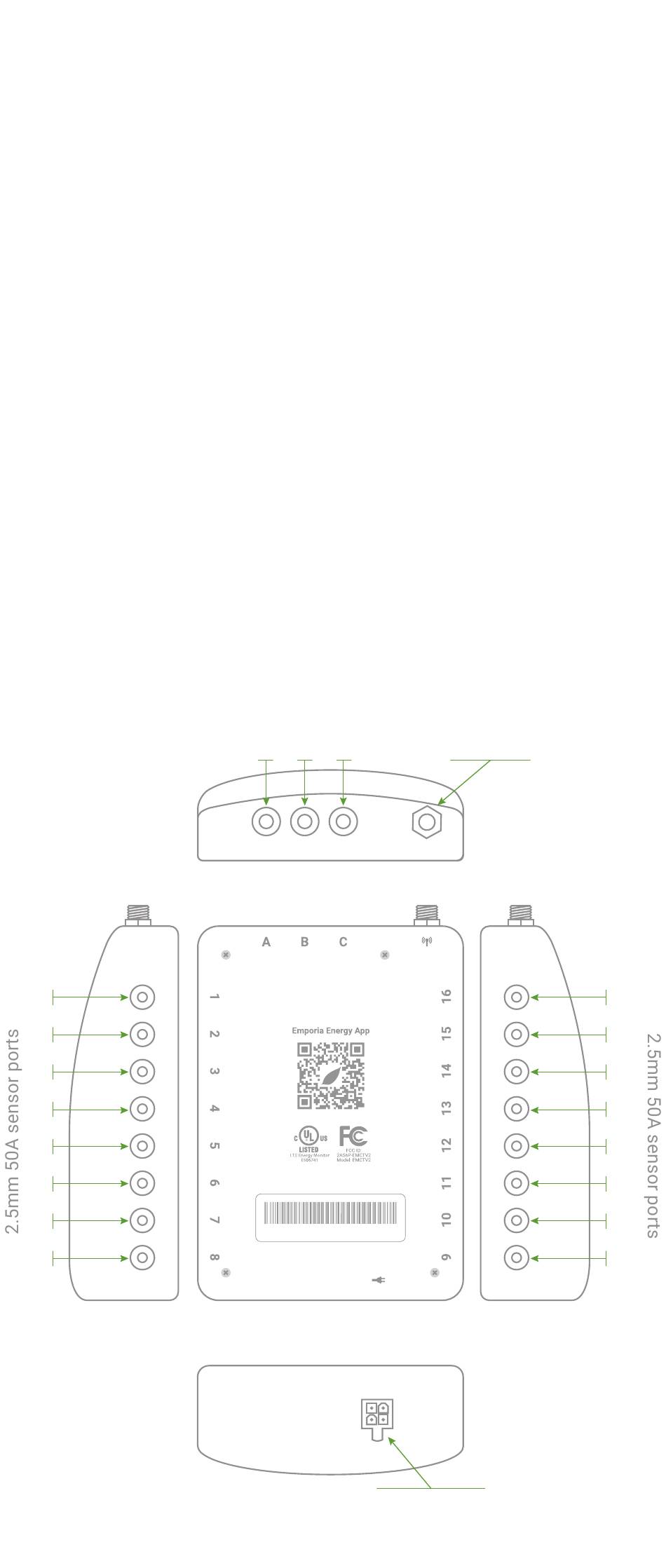

The energy monitor is the hub of the
Emporia Vue. The 3.5mm A, B, and C ports
on the top of the monitor are the inputs for
the 200A main sensors (your bundle may
only have included two). The coaxial
connector for the WiFi cable is also on the
top. The 2.5mm 1 through 16 ports on the
sides of the monitor are the inputs for the
50A sensors (your bundle may have come
with 16 or 8 sensors, or none at all). The
port for the wiring harness is located on the
bottom of the monitor. All of the ports are
clearly labeled on the back of the energy
monitor.
1
2
3
4
5
6
7
8
side
3.5mm 200A sensor ports
A B
A2024A0401XXXXXXXXXXXX
back
connector
C
Wire harness
port
WiFi
top
side
bottom
16
15
14
13
12
11
10
9
